Technical Specifications for 531X207LCSAMG1
|
Manufacturer
|
General Electric
|
|
Condition
|
100% New Original
|
|
Brand
|
General Electric
|
Rated Voltage
|
120 VAC
|
|
Part Number
|
531X207LCSAMG1
|
Input Voltage Range
|
0-250 VAC
|
|
Product Name
|
ASSEMBLY LAN CURRENT CARD
|
Input Current
|
8.3 mA per point
|
|
Manufacture Year
|
2021
|
Input Impedance
|
6.9K typical
|
|
Product Package
|
Original Package
|
Shipping term
|
TNT DHL FEDEX EMS UPS
|

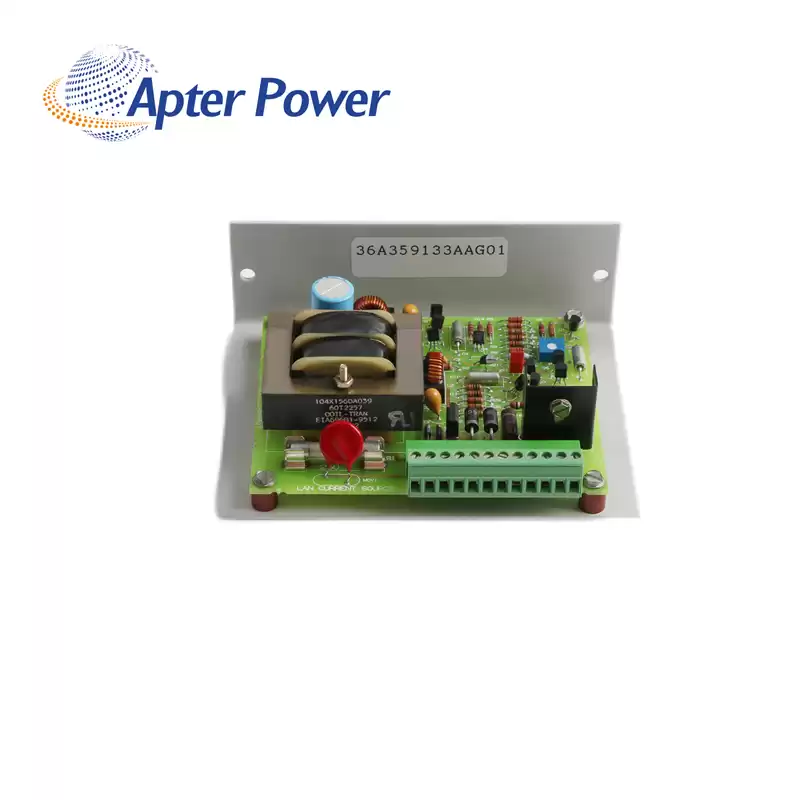

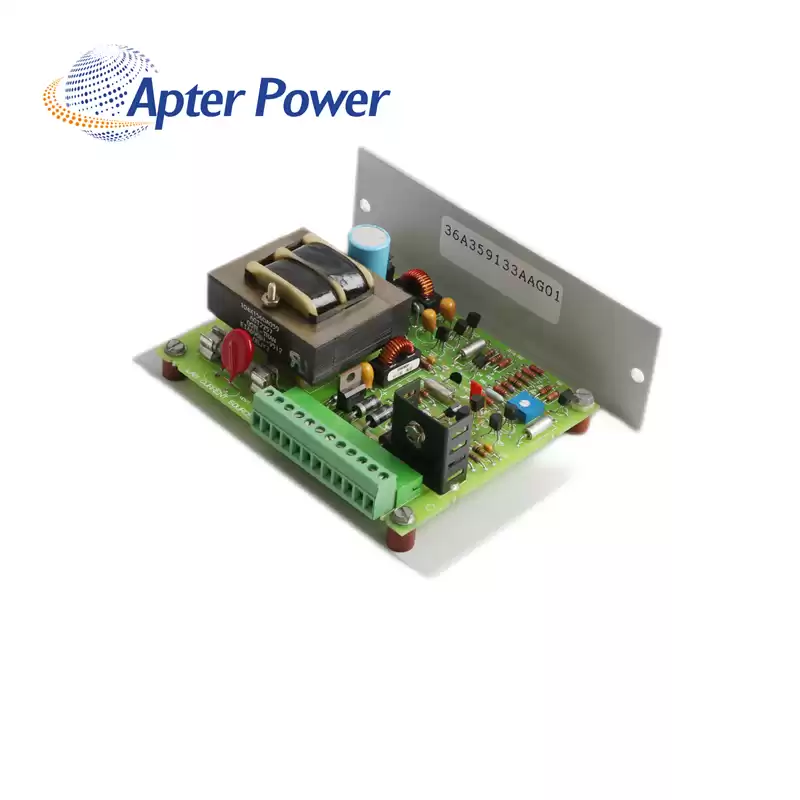

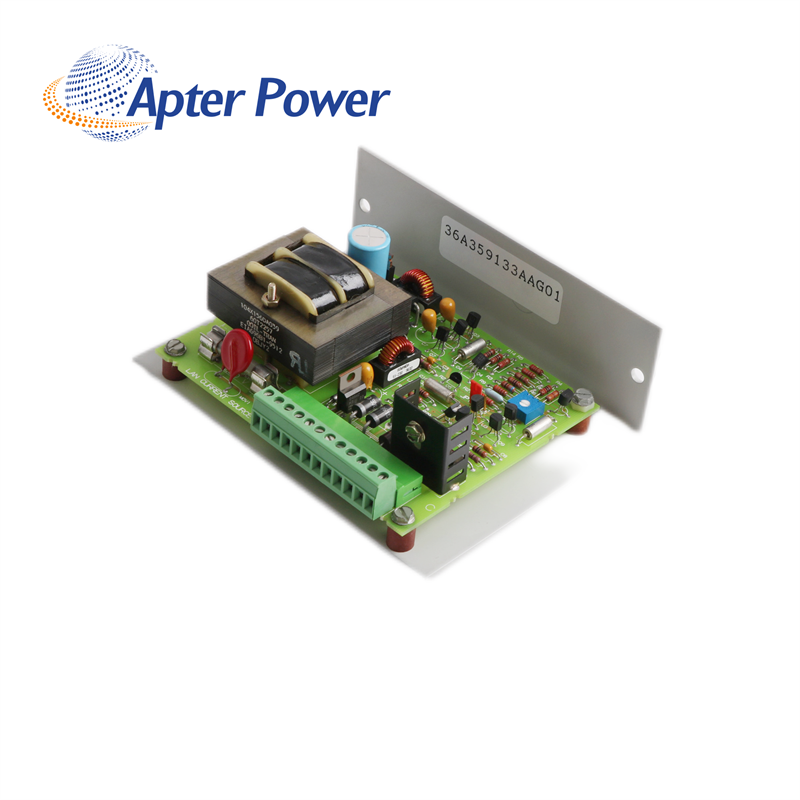

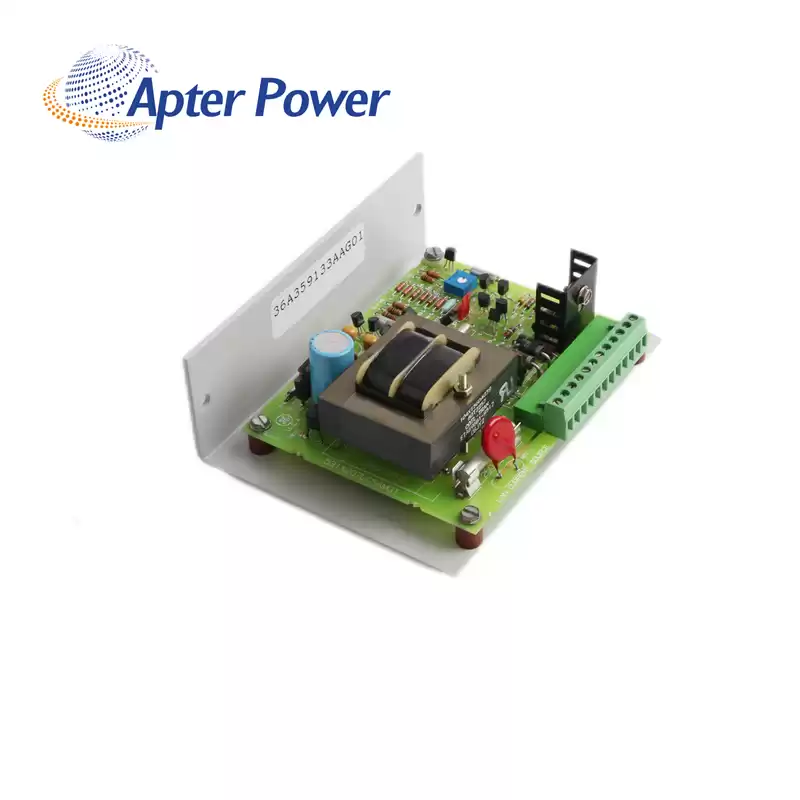

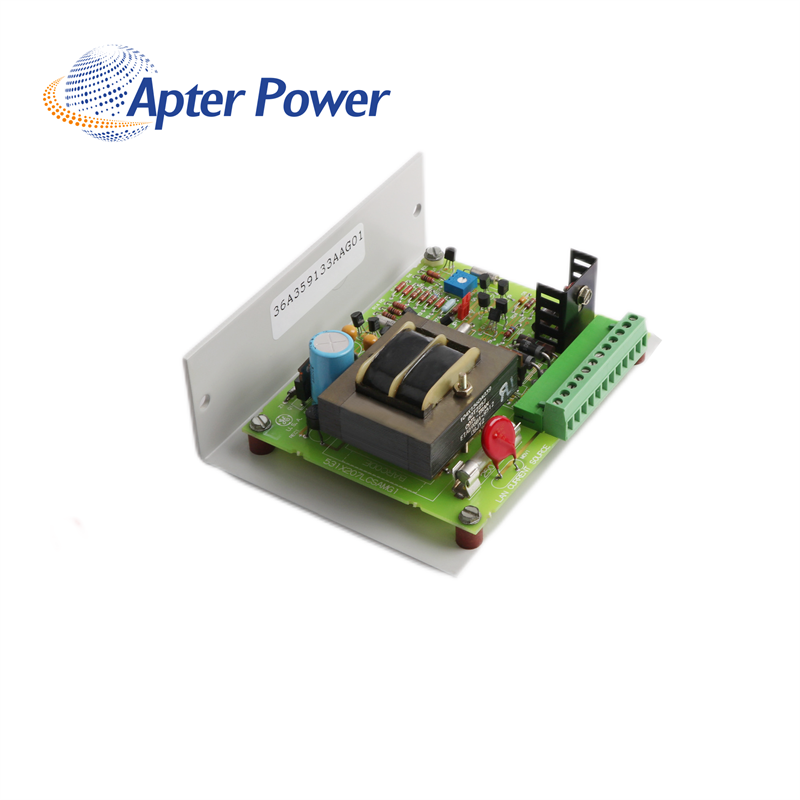

About 531X207LCSAMG1
|
The 531X207LCSAMG1 board was developed as a local area network (LAN) current source board. The manufacturer, General Electric, designed this card for the 531X replacement series of drive boards. As it is a standard component of the drive cabinet, this card can be installed into a number of machines across GE’s brand of drives and exciters. This current source board provides rated power supplies of 5 VDC as well as 15 VDC to the LAN board when installed. A fuse protected 115 VAC input power source provides necessary electricity to the board.
Power supplies required by the LAN communication board is provided by this card. A jumper (J1) found on the board allows users to select between the two provided power supplies. Should these levels be adjusted, users must then adjust the output accordingly. A potentiometer found on the card allows for the output configuration. 531X207LCSAMG1 also features a protected fuse as well as a 12-point terminal board.
|
