Dimensions: 4cmx18cmx17.2cm
|
Weight:1.26kg
|
Product Package: Original Package
|
|
Condition: 100% New Original
|
Product Origin: USA
|
|
Full Description: New Factory Package Cleaned and Tested. With 1 Year Warranty.
|
|
531X305NTBAPG1
|

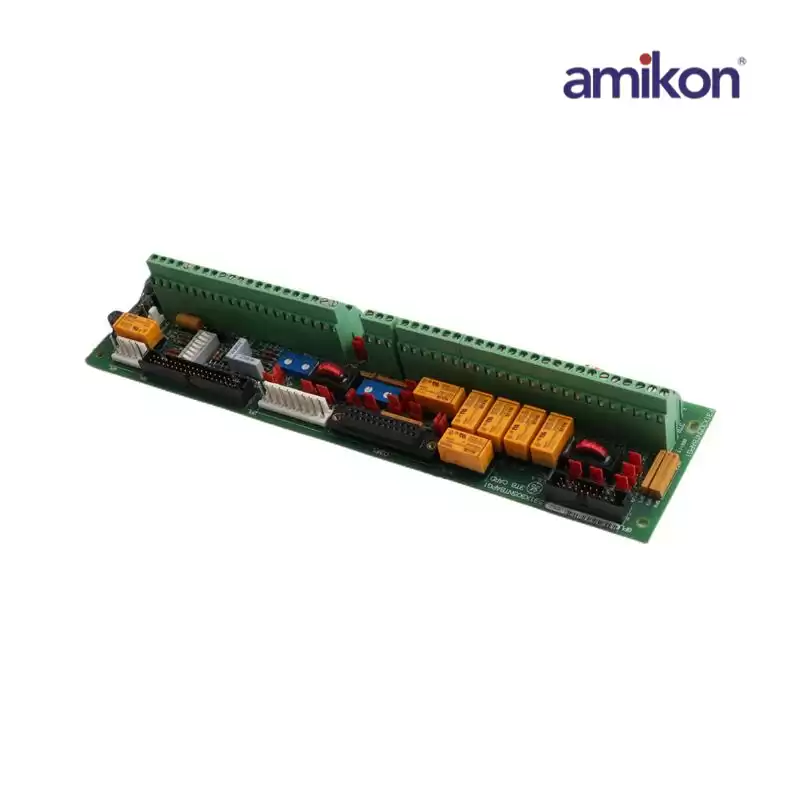

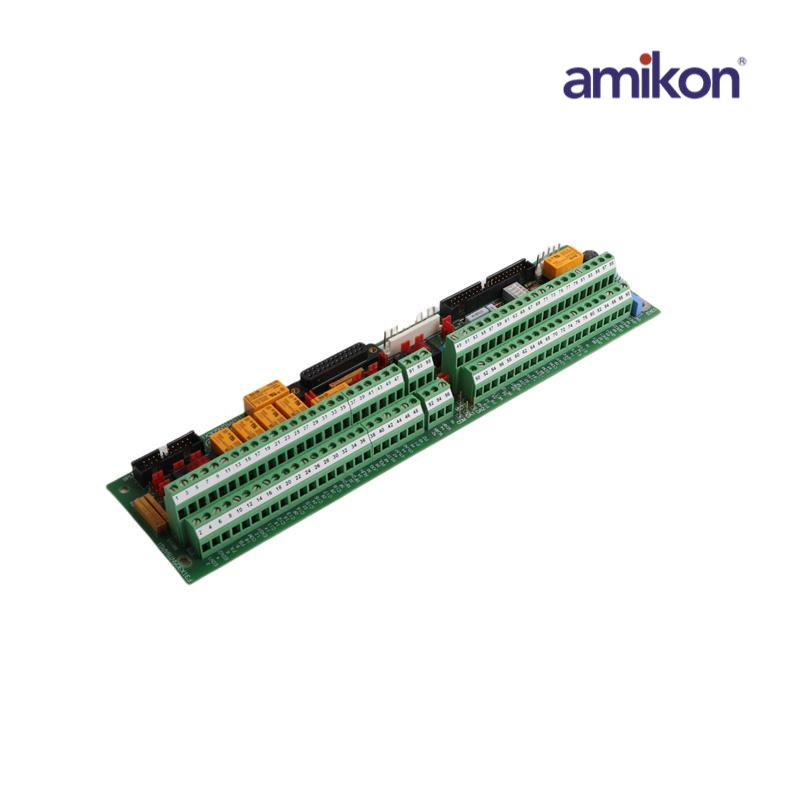

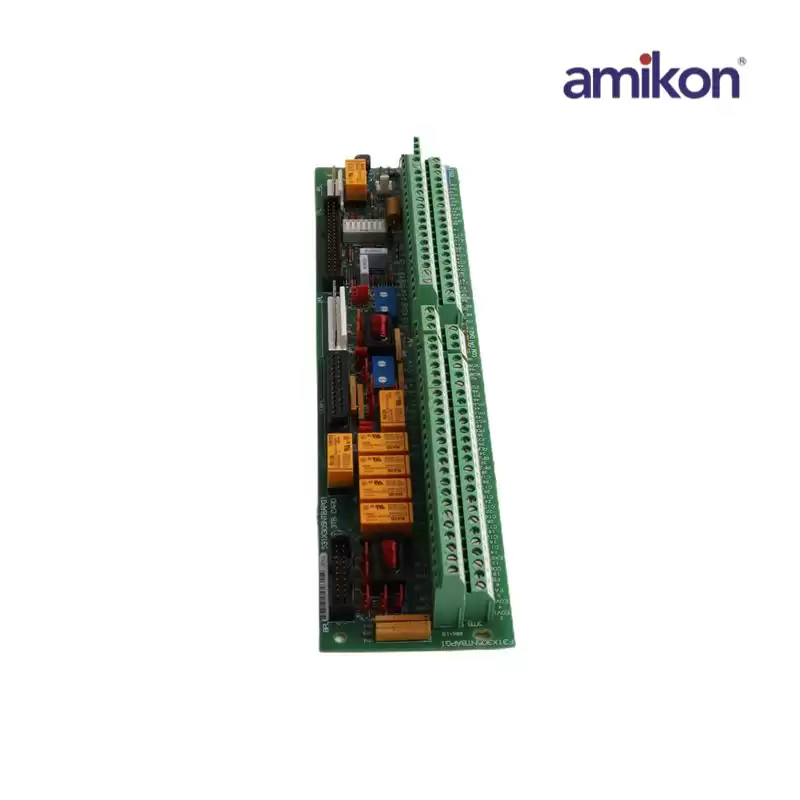

General Electric manufactured the 531X305NTBAPG1 card to function as a relay terminal board. This card was developed as a member of the 531X family of replacement drive and exciter boards. Installing this card provides two services to the drive. External circuitries can be connected and controlled by one of the seven onboard relays. The device also allows users to access the coils and contacts using the terminal board found on the card.
When this card is installed, a number of board functions are provided to the drive. Within the board is a 115 VAC coil that features a frequency of 50/60 Hz. Contacts on the board are rated at 0.7 A DC or 105 VDC while produced hold currents rate at 9 mA.These will illuminate when the relays is energized. The card can also be used to control external circuits fed to the board.
|
