General Electric Control Board IC3600VANB1D

IC3600VANB1D is an Annunciator Control Card manufactured and designed by General Electric as part of the Mark I & II Series used in gas turbine control systems.

IC3600VANB1D  Data sheet

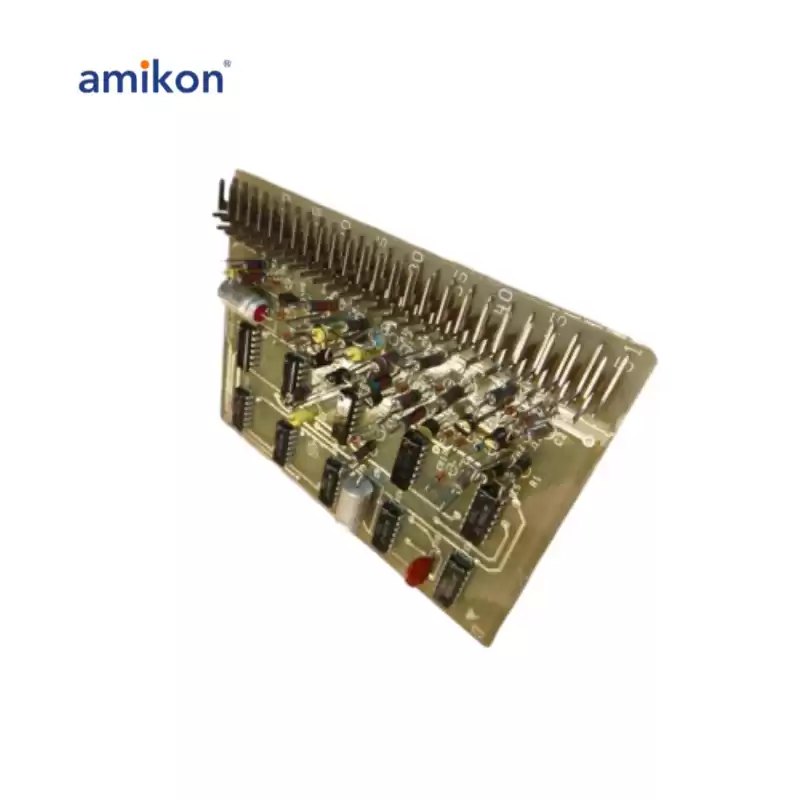

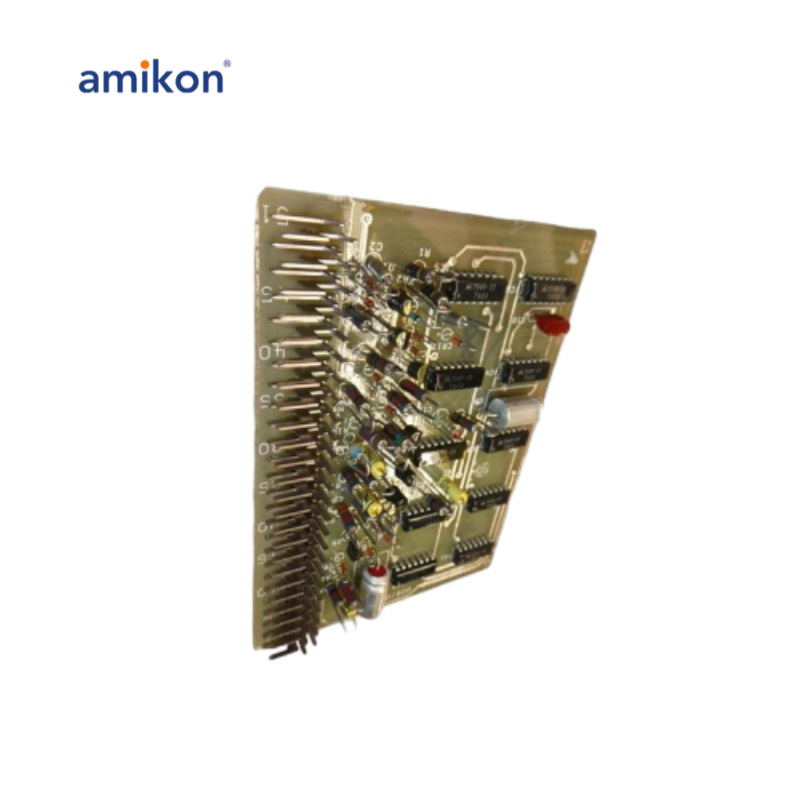

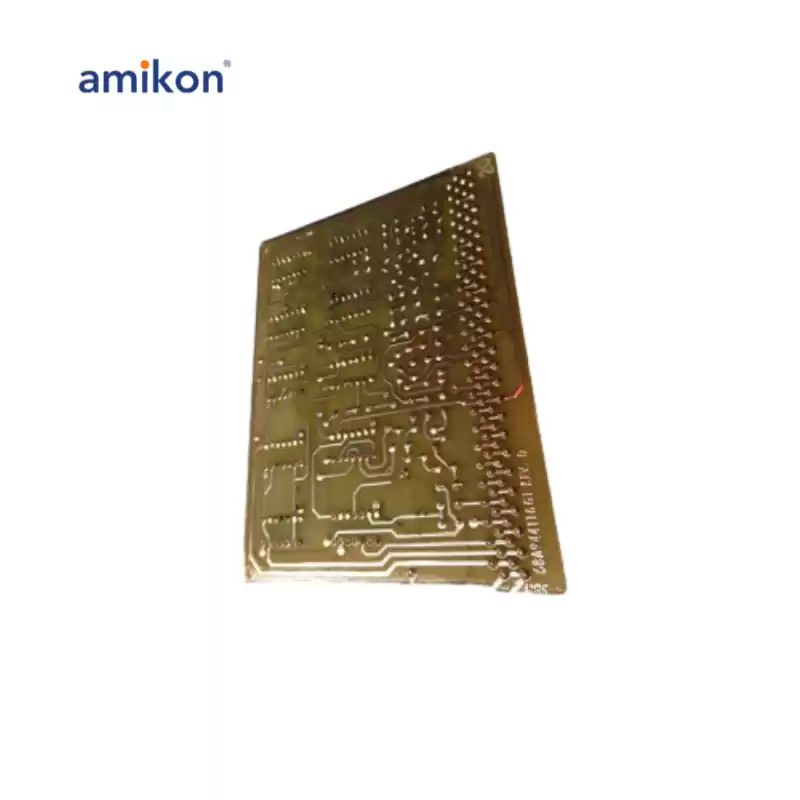

Ten integrated circuits are arranged in two rows on the component. Hex inverter chips are included in this. There are seven transistors in it.

Polyester vinyl, aluminum electrolytic through-hole capacitors, and ceramic capacitors are used on the board.

Metal film resistors are the most common type of resistor. To minimize space, most resistors, capacitors, and diodes are positioned vertically.

Award-winning service

More than 25 in stock

Full 12-month warranty

 We deliver worldwide
