General Electric DS200CTBAG1ADD Termination Board

Dimensions: 28.6x7x4cm

Weight: 0.36kg

Voltage：12 VDC

Master Gateway：-20 to 55°C

Series：Mark V

Full Description: Other components on the DS200CTBAG1ADD include resistor network arrays, relays, transistors, over twenty metal oxide varistors (MOVs,) over a dozen jumper switches, along with a number of capacitors and resistors.

DS200CTBAG1ADD

The DS200CTBAG1ADD is a  Termination Board designed for use within the GE Mark V Speedtronic system.  The Speedtronic line was created by General Electric for the control of both large and small gas and steam turbine systems.  The MKV can be designed with either Simplex or  TMR/triple modular redundant architecture to meet the needs of the connected turbine system.These circuit boards are no longer fabricated and distributed by GE but can be purchased through AX Control as fully tested and refurbished models.

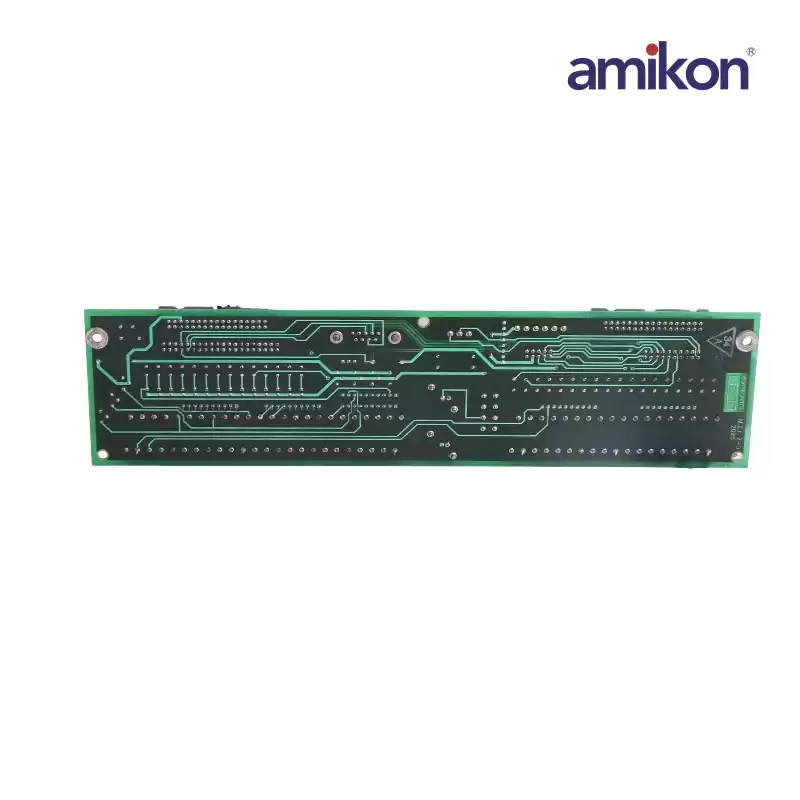

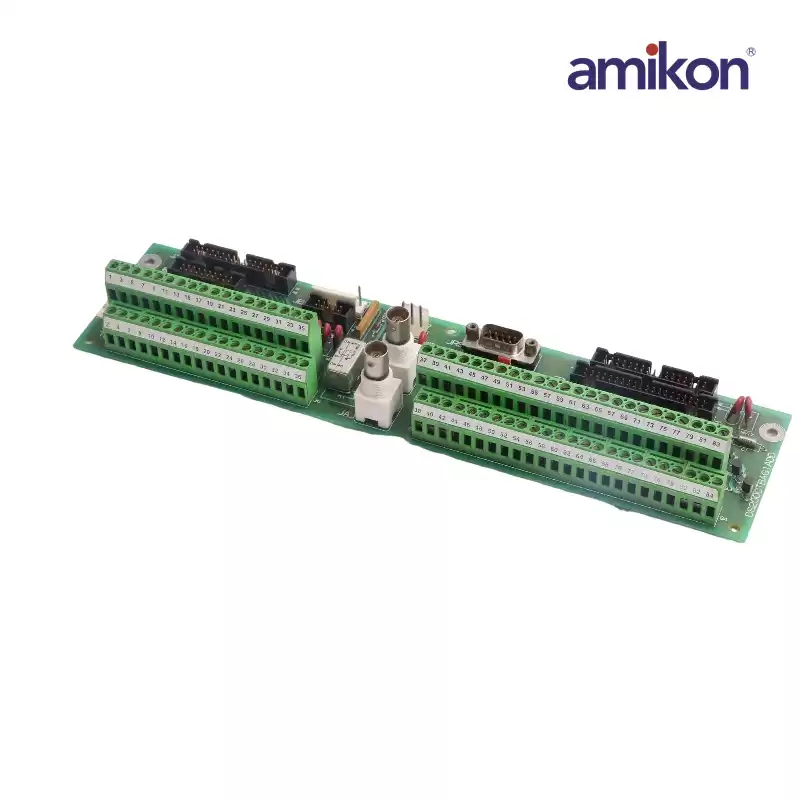

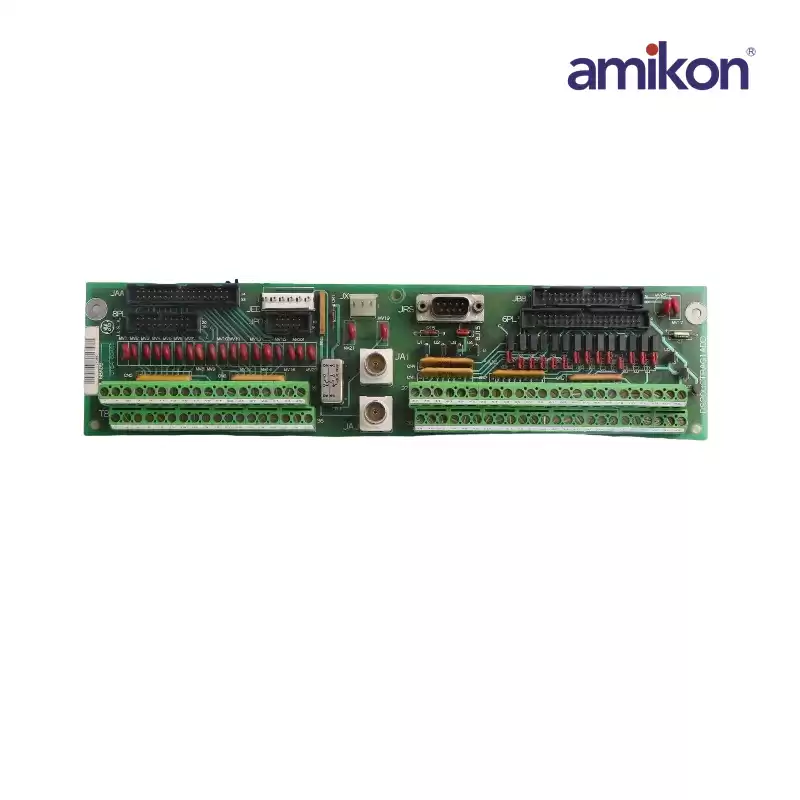

The DS200CTBAG1ADD is a long, narrow board with only a few types of components.  It is drilled at each corner and along its long edges to allow for mounting hardware and other connections.Two of these drill holes are ringed with a conductive material. The DS200CTBAG1ADD has two double-stack terminal strips located on one long board edge with multiple connectors on each terminal strip.  There are five vertical pin cable connectors, two vertical pin header connectors, and a 9-pin male serial connector.
