General Electric DS200DTBAG1AAA Digital Contact Terminal Board

Company infomation:

AMIKON LIMITED gives you access to a global supply of automation parts at your fingertips, ensuring that manufacturers can avoid unnecessary downtime. No matter where in the world, we are committed to helping businesses save millions in lost revenue.

Get in touch with us:

Descrption:

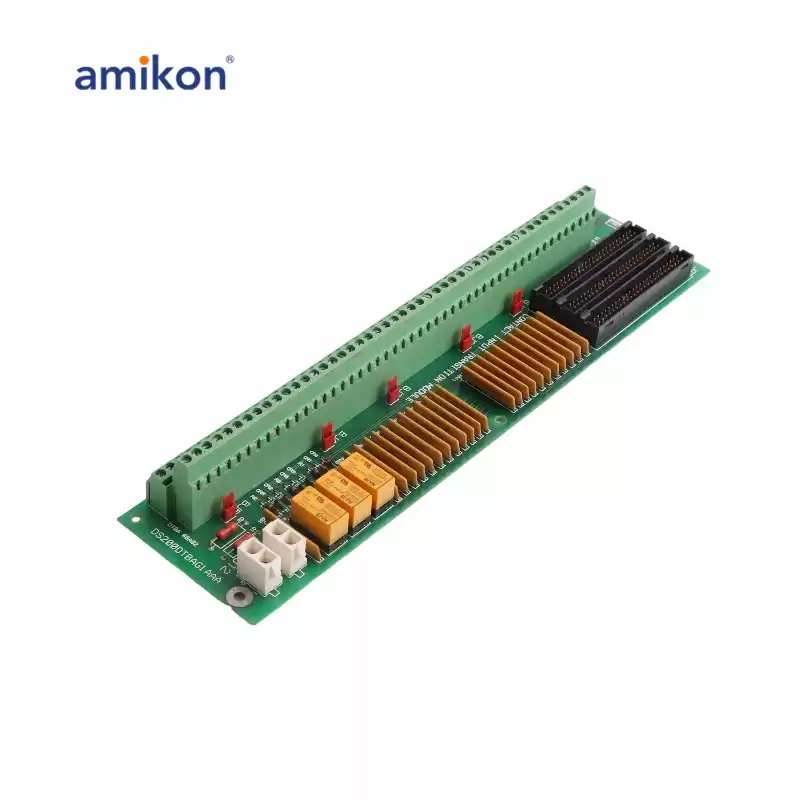

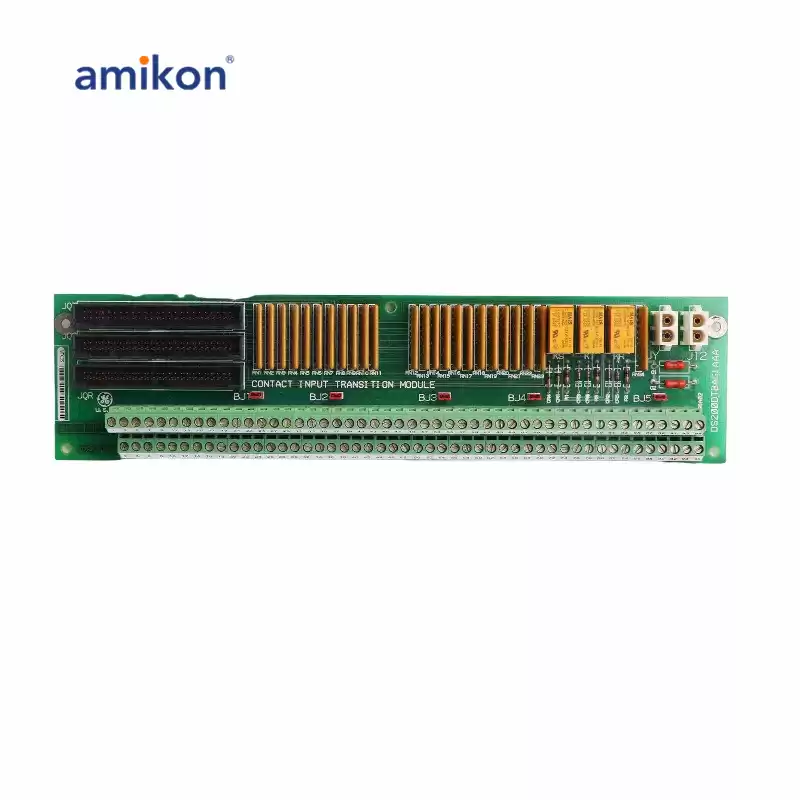

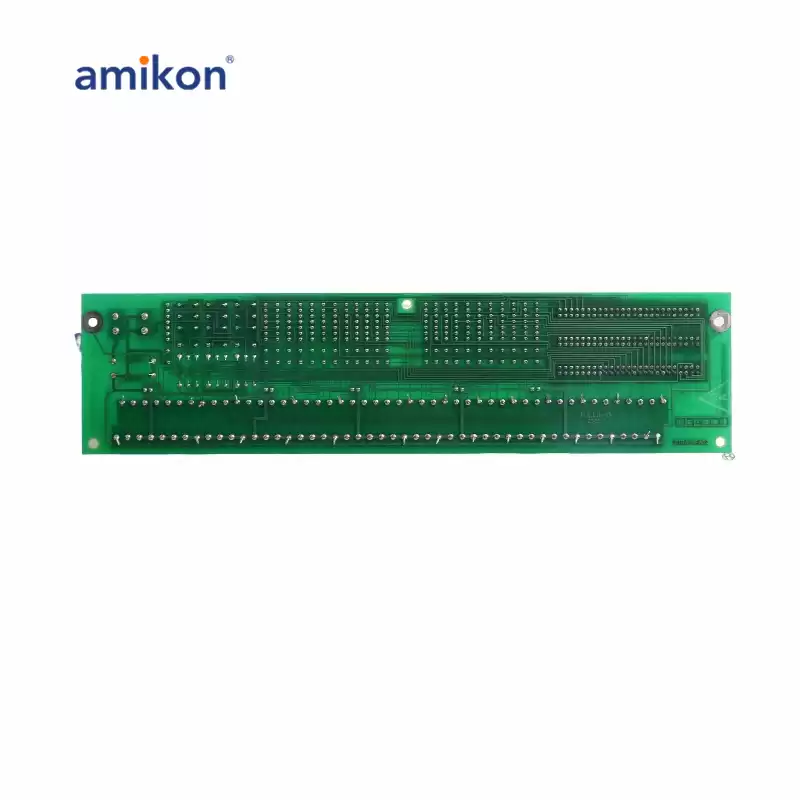

The DS200DTBAG1AAA features two terminal blocks capable of connecting up to 95 wires each, allowing for a maximum of 190 connections. This unit includes five jumpers and two 2-pin connectors, facilitating signal transmission for the drive. When uninstalling wires from the GE Digital Contact Terminal Board, caution is advised, as the screwdriver used to loosen the terminals might inadvertently contact other components, potentially causing damage. To minimize this risk, it's recommended to guide the screwdriver with one hand while carefully loosening the terminal. As you remove the signal wires, try to position them to the side, keeping them clear of other boards.

The DS200DTBAG1AAA can operate with a TCDA board, allowing it to invert normally open contacts to represent a closed signal through the I/O configurations associated with the TCDA board. Additionally, there are four connections necessary for linking the DS200DTBAG1AAA to other models within the Mark V DS200 series, ensuring seamless integration and functionality.

FAQ:
1. What is the primary function of the DS200DTBAG1AAA module?
The DS200DTBAG1AAA, also known as the GE Digital Contact Terminal Board, is designed to connect signal wires that send and receive information used by a drive within the Mark V DS200 series. It provides two terminal blocks that can support up to 95 wires each, totaling a maximum of 190 possible connections.

2. How do the terminal blocks work in the DS200DTBAG1AAA?
The two terminal blocks on the DS200DTBAG1AAA board are used to attach signal wires. These signal wires communicate with other parts of the drive system, helping to control and monitor operations. Proper care must be taken when handling these connections to avoid potential damage to the terminal board or other nearby components.

3. Are there any specific safety tips for installing or uninstalling wires?
Yes. Use a screwdriver carefully when loosening terminals, as it can potentially damage other components if not handled properly. It is advisable to use one hand to guide the screwdriver during installation or removal to prevent accidental contact with other parts. Additionally, when removing signal wires, position them to the side to keep them out of the way of other boards.
