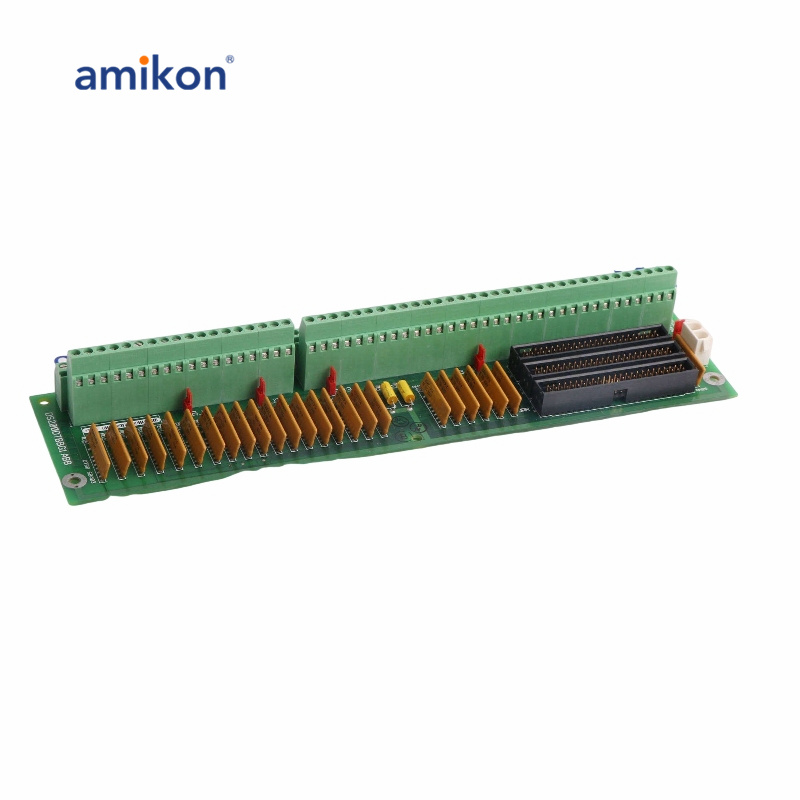

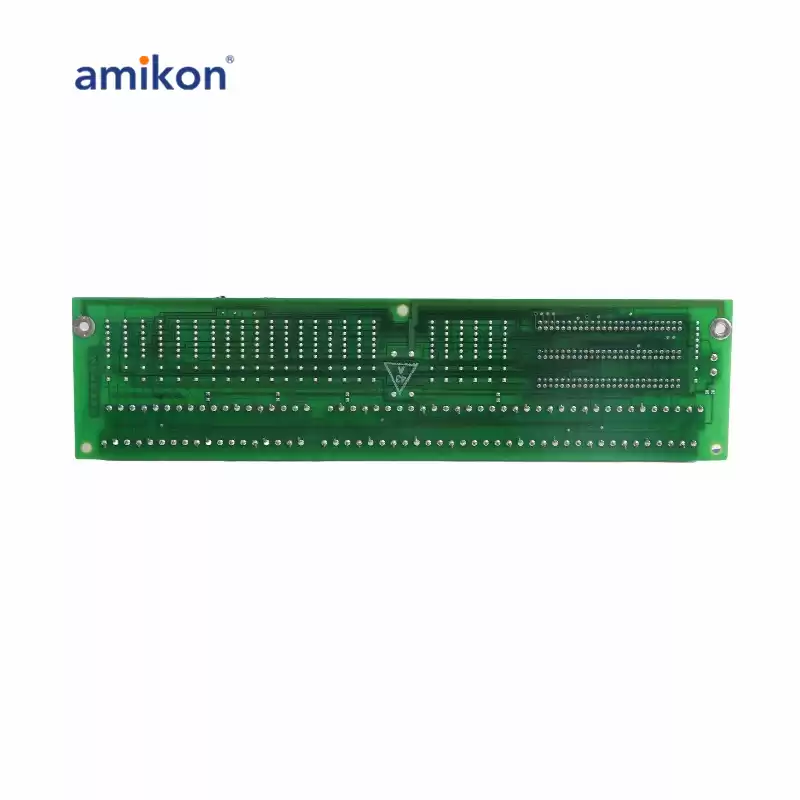

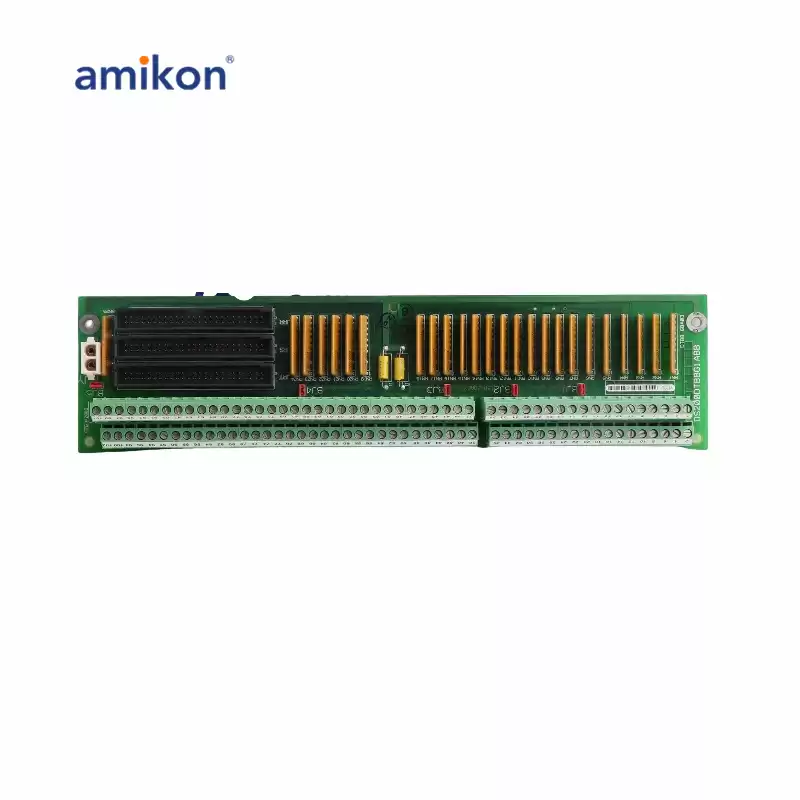

General Electric DS200DTBBG1ABB I/O Terminal Board

DS200DTBBG1ABB is a Digital Input Terminal Board designed for use within the GE Mark V Speedtronic system. The GE Terminal Digital Connector Board DS200DTBBGIABB features 2 terminal blocks with terminals for 95 signal wires in each.

It also contains 3 50-pin connectors. The IDs for the 40-pin connectors are JFF, JFG, and JFH. It also is populated with bayonet connectors and 5 jumpers.

DS200DTBBG1ABB  Data sheet

The board is 3 inches in height and 11.5 inches in length. It has 1 hole in each corner for the installer to attach the board to the board rack in the interior of the drive.

The drive has multiple positions that can accept the installation of the board. However, it is best practice to install the board in the same position as the old board it is replacing.

This is because of the large number of signal wires and ribbon cables attached to it.
