Dimensions: 28.8x72x3.5cm
|
Weight: 0.36kg
|
Voltage:44VDC
|
|
Master Gateway：20 to 65°C
|
Series:DC2000
|
|
Full Description:The heart of the control system is the Control Module, which is available in either a 13- or 21- slot standard VME card rack
|
|

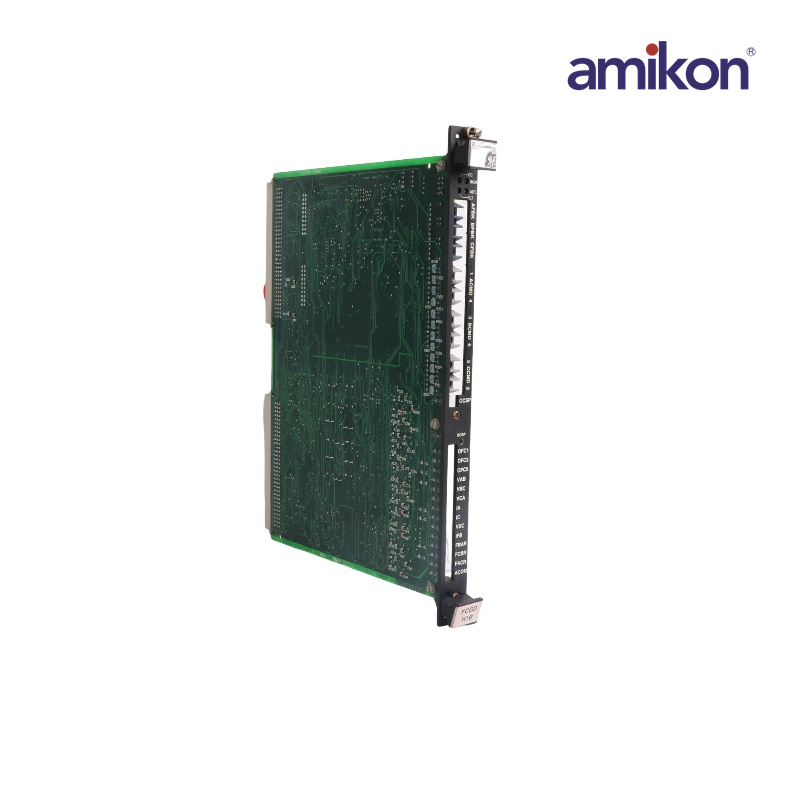

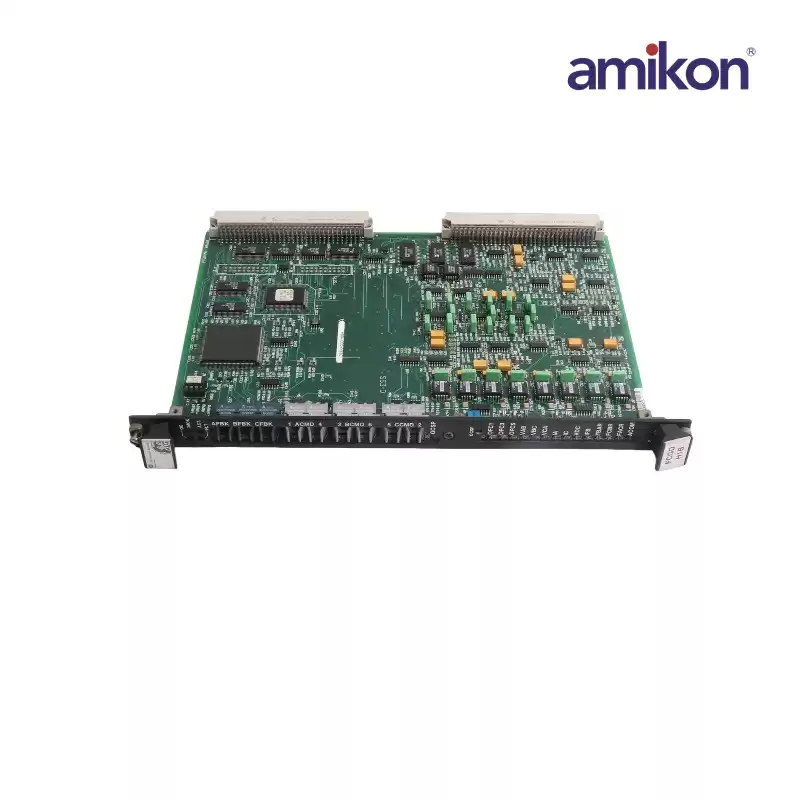

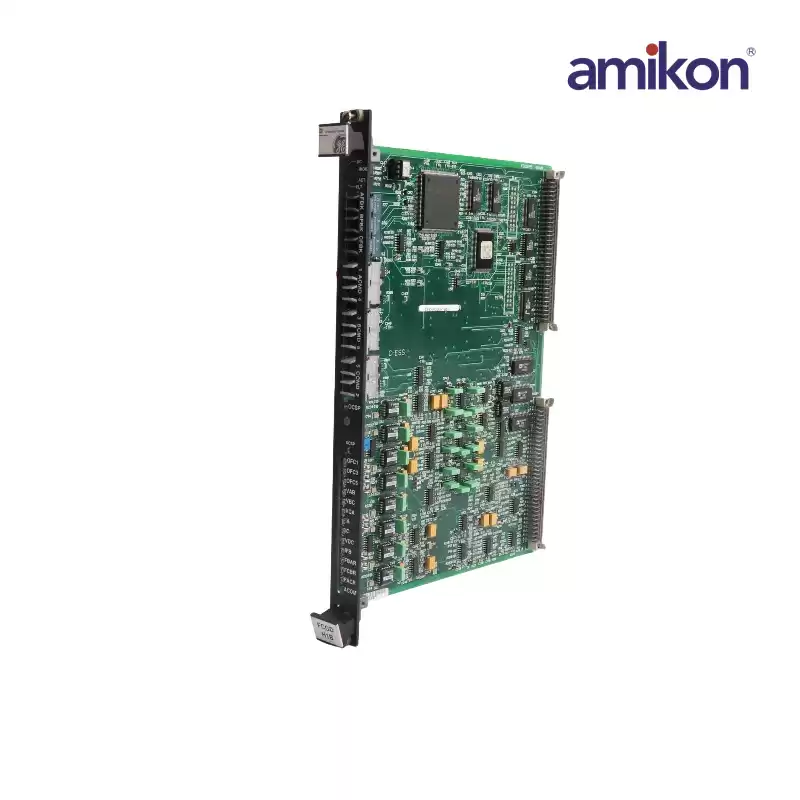

DS200FCGDH1B DS200FCGDH1BBA
|
The heart of the control system is the Control Module, which is available in either a 13- or 21- slot standard VME card rack. Inputs are
received by the Control Module through termination boards with either barrier or box-type terminal blocks and passive signal conditioning. Each I/O card contains a TMS320C32 DSP processor to digitally filter the data before conversion to 32 bit IEEE-854 floating point format. The data is then placed in dual port memory that is accessible by the on-board C32 DSP on one side and the VME bus on the other. In addition to the I/O cards, the Control Module contains an “internal” communication card, a main processor card, and sometimes a flash disk card. Each card takes one slot except for the main processor that takes two slots. Cards are manufactured with surface-mounted technology and conformal coated per IPC-CC830.
|
