Dimensions: 28.8x72x3.5cm
|
Weight: 0.36kg
|
Voltage:12VDC
|
|
Master Gateway:-20 to 45°C
|
Series:LS2100
|
|

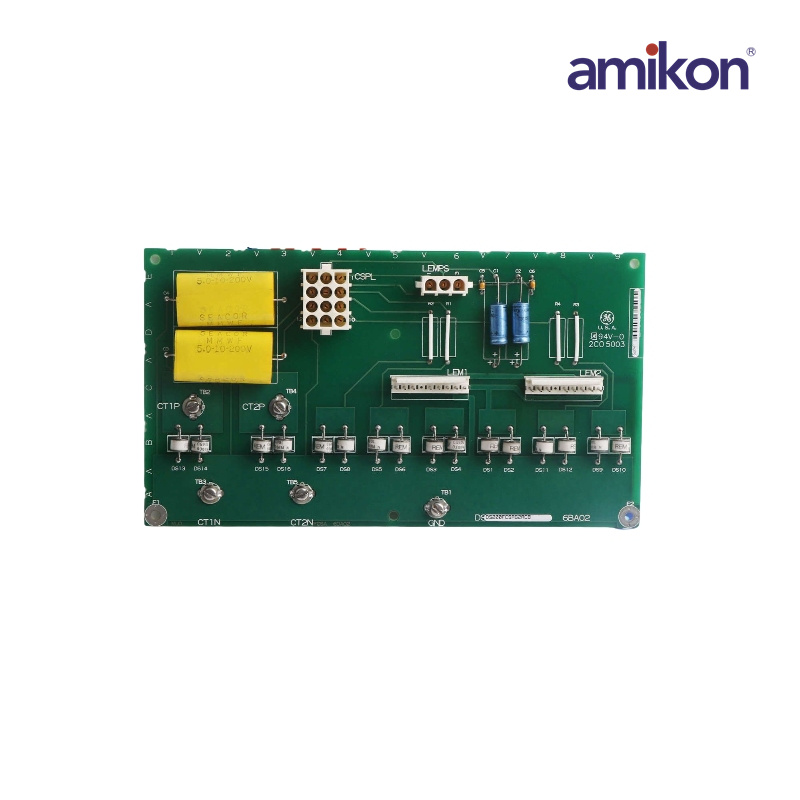

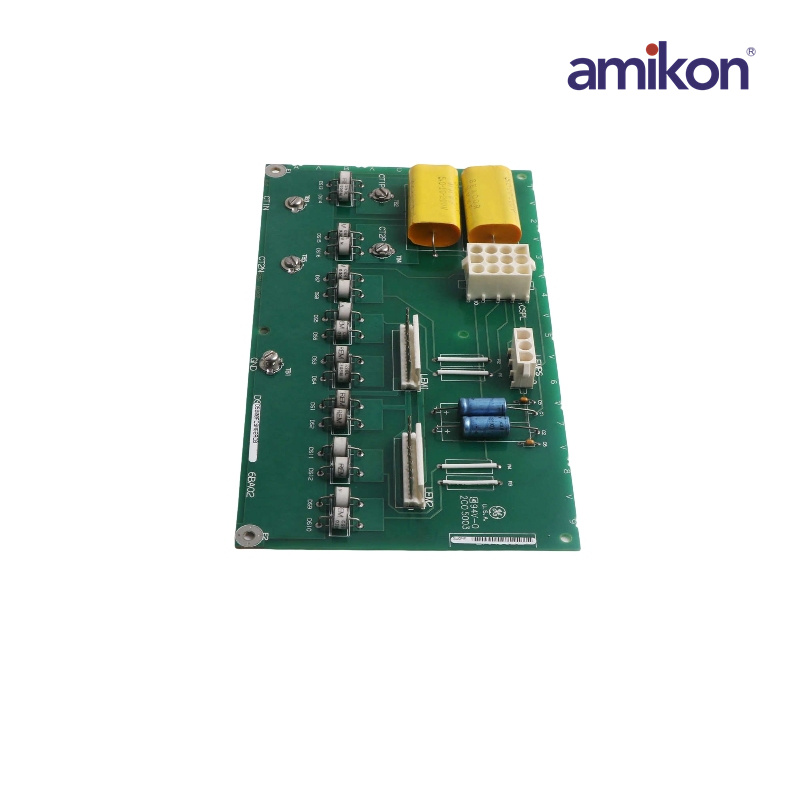

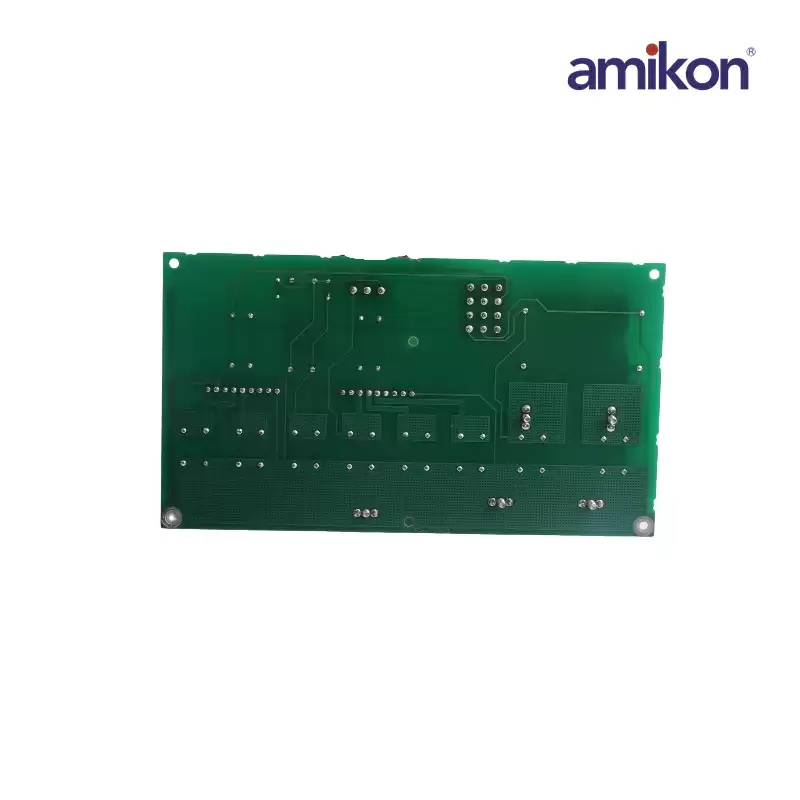

DS200FCSAG2A DS200FCSAG2ACB
|
The DS200FCSAG2A is a Current Sensing Interface Board designed for use within the GE Mark V Speedtronic system.The DS200FCSAG2A board is a Current Sensing Feedback Board produced by General Electric in the LS2100 Series. This model is used alongside several boards that help with the ac drive system specifically designed to be used with gas turbine generator prime movers. This model is mounted in the static starter power conversion cabinet linked with the LS2100 Series.
In terms of connectors on the board, there are two versions of sub-D pin connectors, one of the connectors is a three-pin LEMPS connector, while the other is a twelve-pin CSPL connector. The DS200FCSAG2A model is used with a Control Power Supply (CPS). When the FCSA model is being used with the CPS, the CPS model will directly produce a voltage output for the FCSA model, typically these voltages are twenty-four, fifteen, twelve, and five volts.
|
