Dimensions: 28.8x72x3.5cm
|
Weight: 0.36kg
|
Voltage:12VDC
|
|
Master Gateway:-20 to 45°C
|
Series:Mark V
|
|

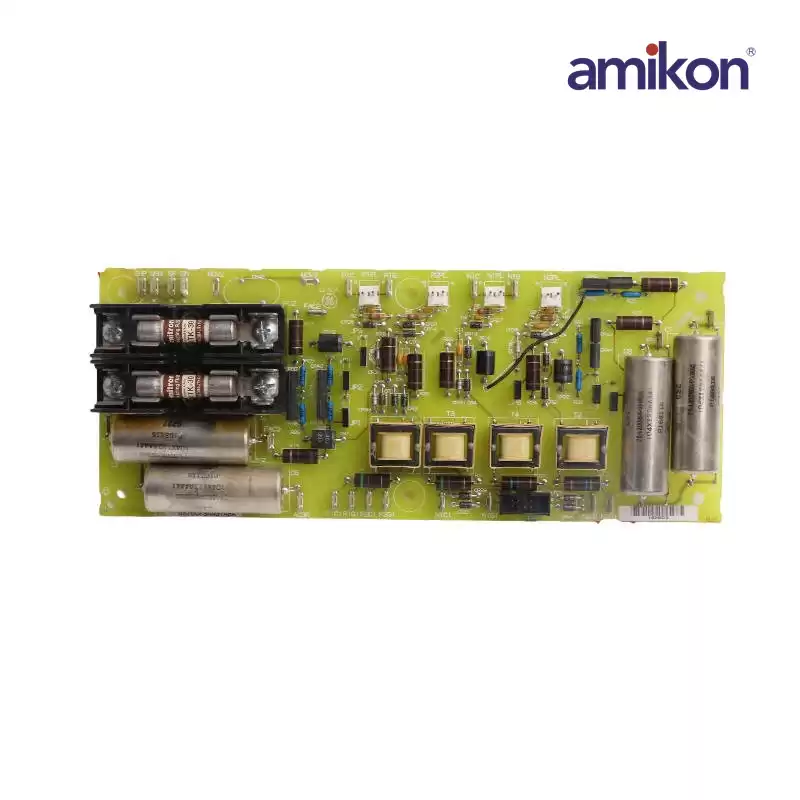

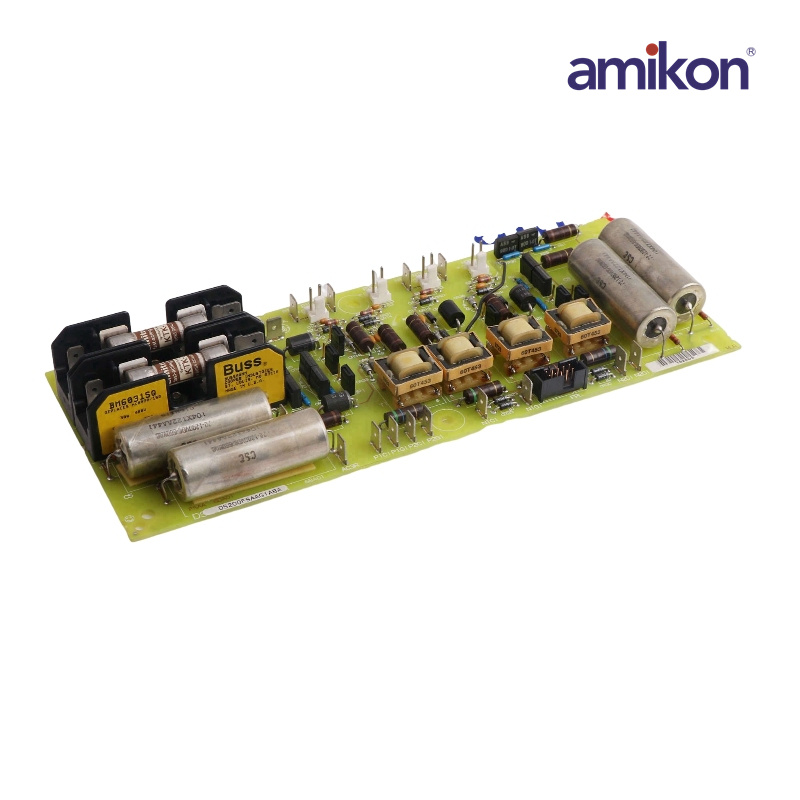

Full Description:The GE Field Supply Amplifier Board DS200FSAAG1ABA features 5 jumpers, one 10-pin connector, and two fuses. It is also populated with multiple test points.
|
|
DS200FSAAG1ABA
|
The DS200FSAAG1ABA is a Field Supply Amplifier Board designed for use within the GE Mark V Speedtronic system.The GE Field Supply Amplifier Board DS200FSAAG1ABA features 5 jumpers, one 10-pin connector, and two fuses. It is also populated with multiple test points. The GE Field Supply Amplifier Board DS200FSAAG1ABA is subject to damage from static electricity that can build up on your body and on the board. There are several guidelines to follow once you receive the replacement board and during the replacement procedure.
The board is shipped in a sealed bag made of a plastic that is treated to prevent the flow of static through the bag and onto the board. The best practice is to keep the board in the sealed bag until you are ready to install it.Remove the board from the bag, flatten out the bag, and place the board on top of the bag. Configure the board by moving the jumpers to match the settings found on the old board. Notice where the cables are connected on the defective board.
|
