General Electric DS200PTBAG1ADC Termination Board

Brand new and original sealed//Same Day Shipment


  • Dimensions28.8cmx7.2cmx3.8cm
  • Weight0.32 kg
  • Country of OriginUSA
  • Brand/ManufaturerGeneral Electric
  • Warranty PeriodOne Year Warranty
  • Payment Term100% Advance Payment T/T Bank Wire Transfer

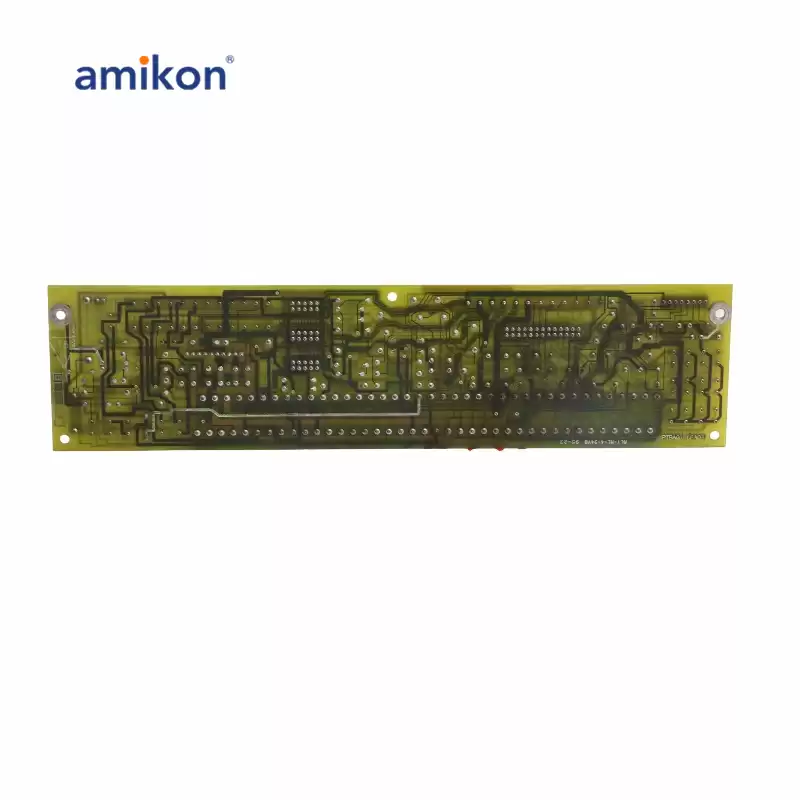

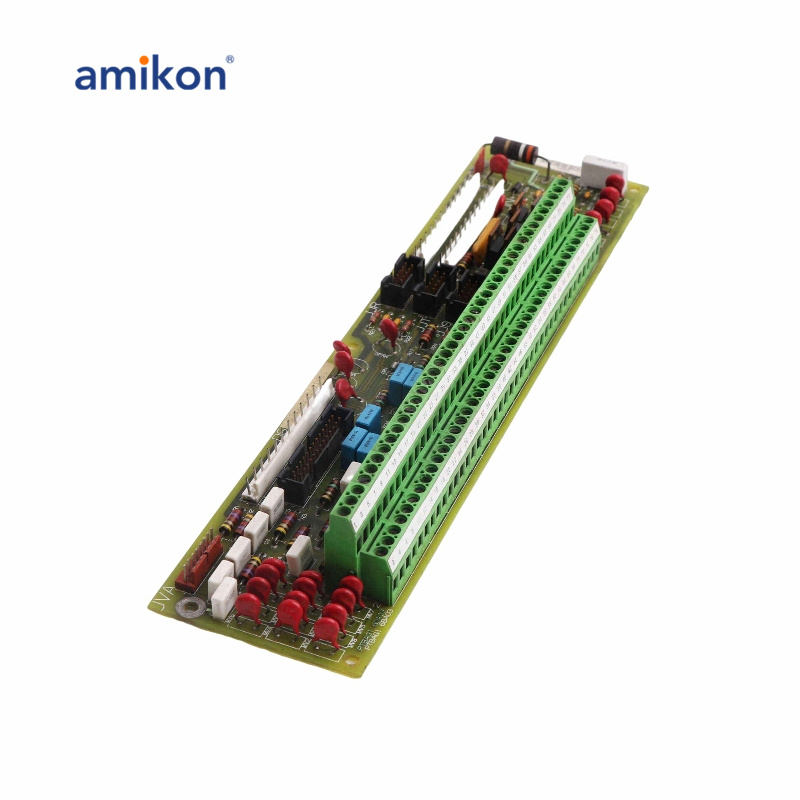

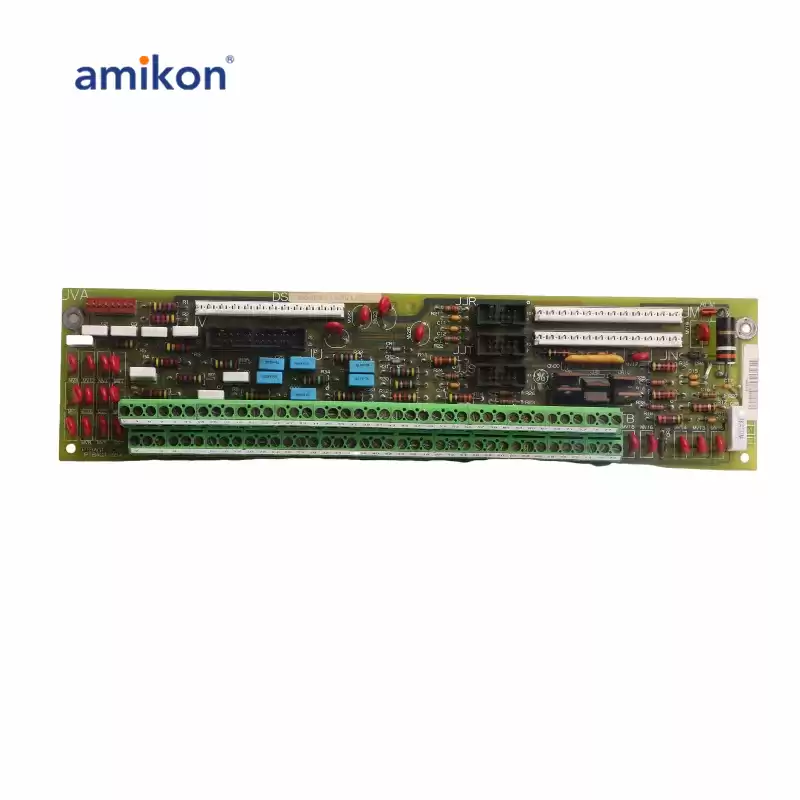

DS200PTBAG1ADC is a Termination Board designed for use within the GE Mark V Speedtronic system.The GE Termination Board DS200PTBAG1A features 2 terminal blocks with terminals for 72 signal wires in each. It also contains 3 10-pin connectors.


The IDs for the 10-pin connectors are JJR, JJT, and JJS. It also contains terminal posts for 6 signal wires. The GE Termination Board DS200PTBAG1A is 3 inches in height and 11.5 inches wide and it features 1 hole in each corner for attaching the board to the board rack inside the drive.


DS200PTBAG1ADC  Data sheet

Because of the numerous signal wires and ribbon cables that attach to the board, it is best practice to map out where the signal wires attach on the board and have a plan to attach the wires to the same connectors on the  replacement board.


If you fail to attach the signal wires to the same terminals, the drive downtime will increase while the signal wires are attached to the correct terminals.


Detection of an excessive temperature generates a diagnostic alarm and the logic is available in the database (signal space) to facilitate control action or unique process alarm messages. The temperature is continuously available in the database.
