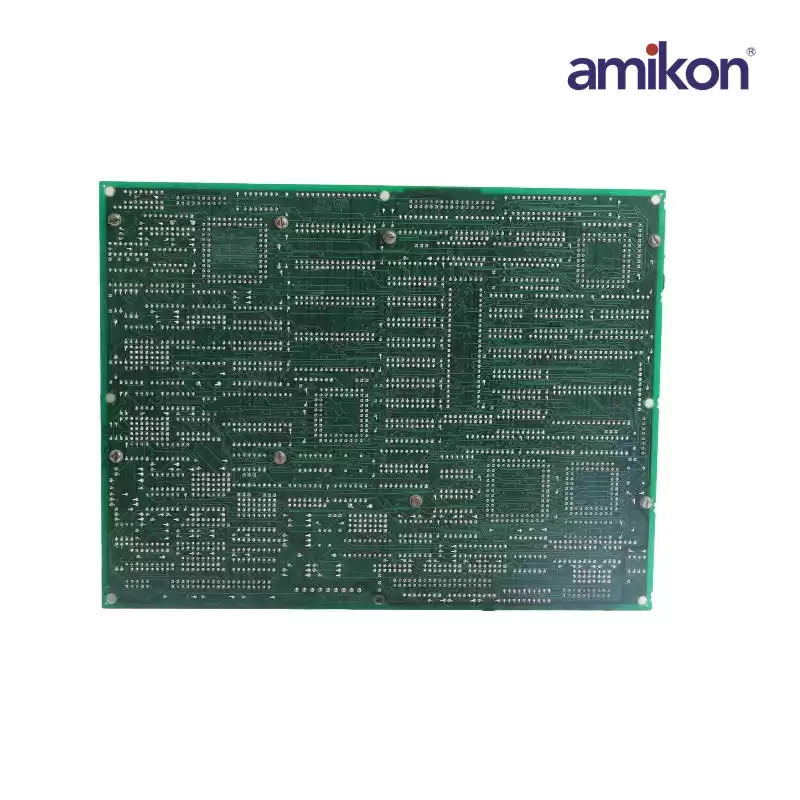

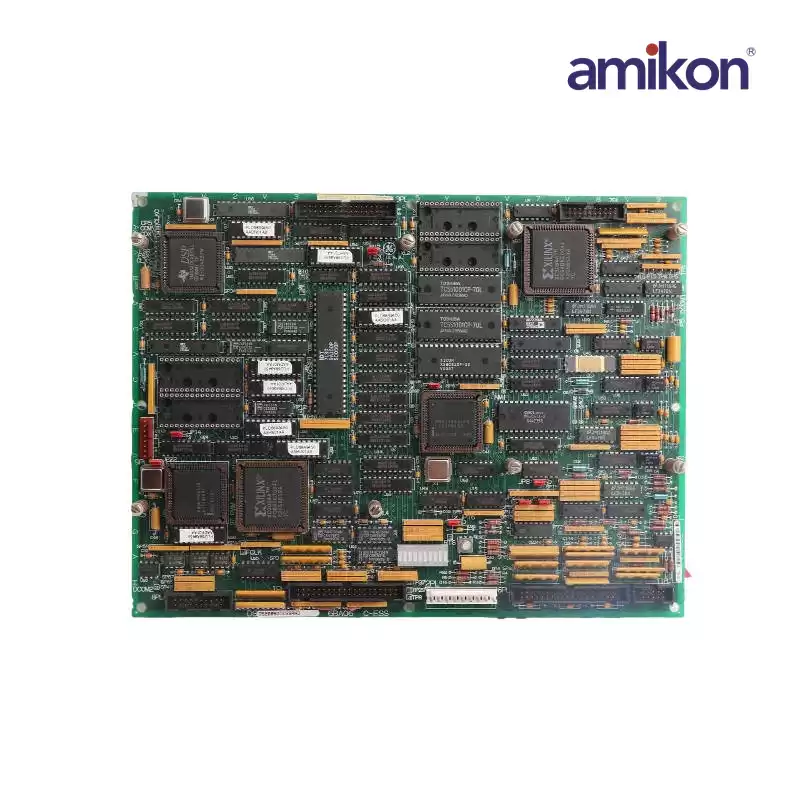

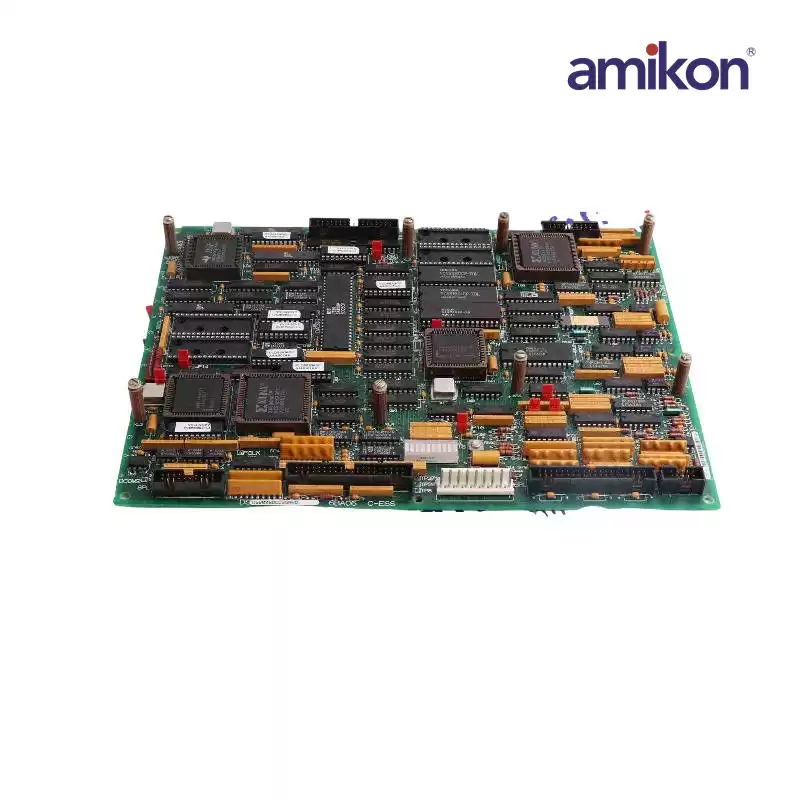

General Electric DS200SDCCG5A Drive Control Card

General Electric DS200SDCCG5A Drive Control Card

Dimensions:

28x21.4x3cm

Weight:

0.54kg

Master Gateway：

-20 to 45°C

Voltage：

12 VDC

AUXILIARY BOARD MOUNTING PROVISIONS:

Additional auxiliary boards and modules can be mounted using the SDCC mounting facilities. The SDCC is compatible with the following boards:

DS215SLCC or 531X306LCC LAN Communications Card

531X309SPC Signal Processor Card

DS200SPCB Multibridge Signal Processor Card

DS200SDCCG5A

The DS200SDCCG5A is a Drive Control Card designed for use within the GE Mark V Speedtronic system. The GE Drive Control Board DS200SDCCG5A is the primary controller for the drive. The GE Drive Control Board DS200SDCCG5A is populated with 3 microprocessors and RAM that can be accessed by multiple microprocessors at the same time. The microprocessors are assigned a specific task involved in the drive control processing.

The microprocessors have installed on them the firmware and hardware required to perform the tasks. For example, one microprocessor is equipped with the processing functionality to perform the math calculations involved in co-motor control functions.

The board features five EPROM connectors for storing configuration software. Four of the EPROM modules store configuration parameters that are assigned in the factory. The one remaining EPROM module stores configuration parameters that are assigned by the user or servicer. The GE Drive Control Board DS200SDCCG5A is populated with the EPROM connectors but you must use the EPROM modules from the old board.
