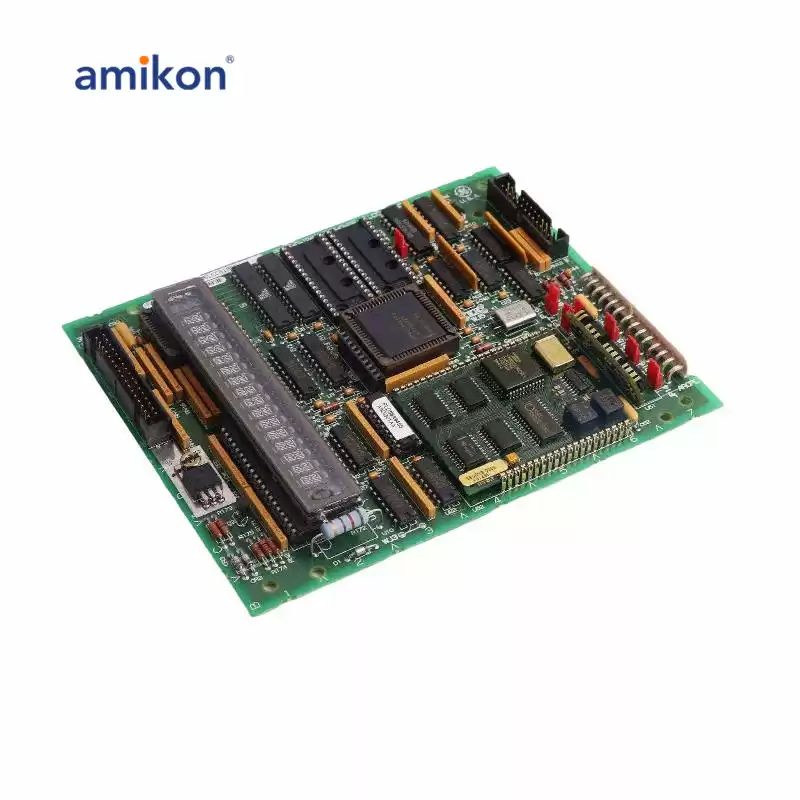

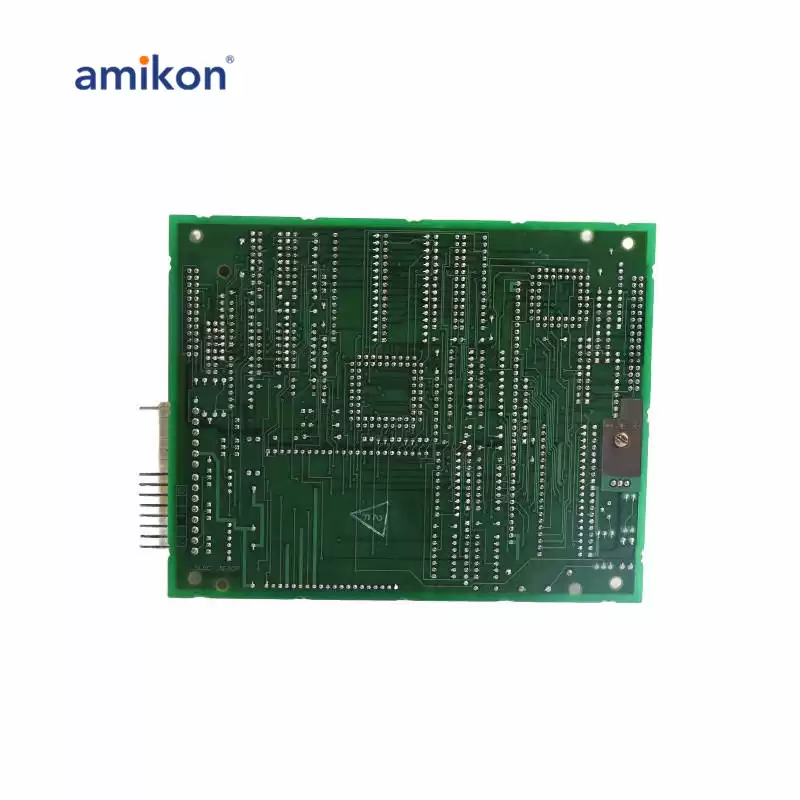

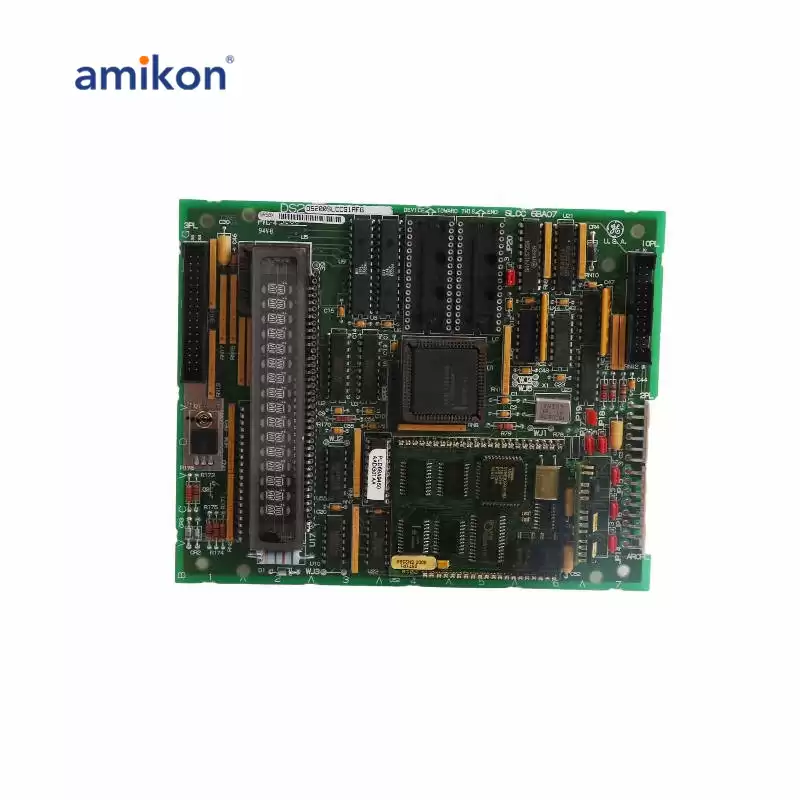

General Electric DS200SLCCG1AFG Communication Card

Brand new and original sealed//Same Day Shipment

DS200SLCCG1AFG has a 16-position alphanumeric display located parallel to one edge. There are four posts located close to the end of this display (ST1 through ST4) that are used to protect its glass tip.
These posts look like jumpers but should not be confused with the jumpers located elsewhere on the board.Jumper settings can be modified to change RS-422 DLAN drivers or to isolate the DLAN circuit.
DS200SLCCG1AFG Data sheet	Additionally, the J19 jumper is used to connect the crystal to the processor. This board is designed for use with GE’s Mark V turbine control systems, designed to control and manage industrial gas and steam turbine systems
	It is important that customers know DS200SLCC boards typically do not include software located within the U6 and U7 EPROMs, as the board is shipped with these sockets empty.
	The MK V Control system can be set up as either a Simplex or TMR (triple modular redundant) system.
Award-winning service	More than 25 in stock	Full 12-month warranty	We deliver worldwide
