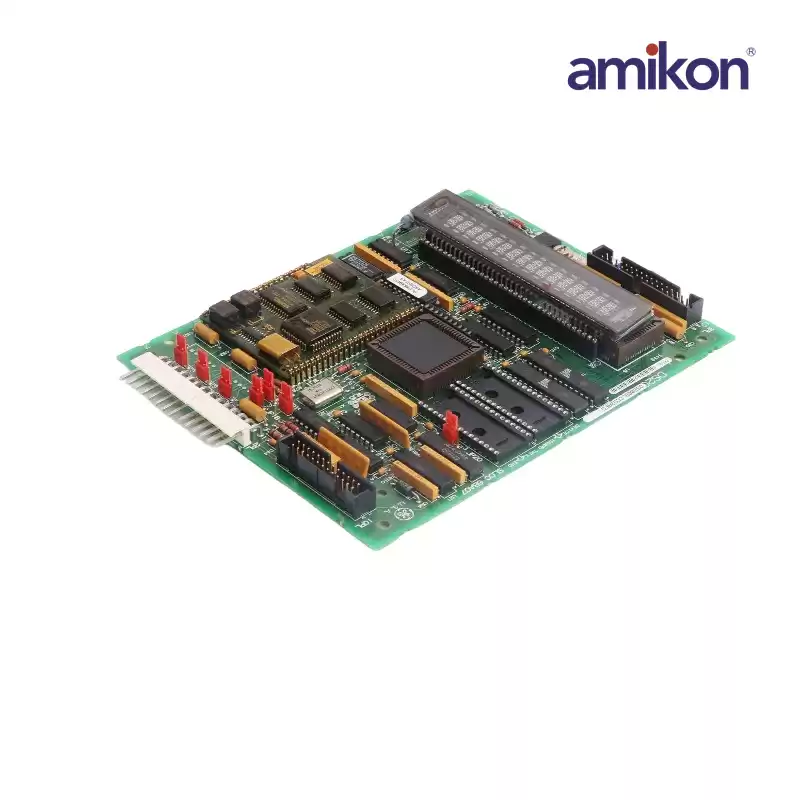

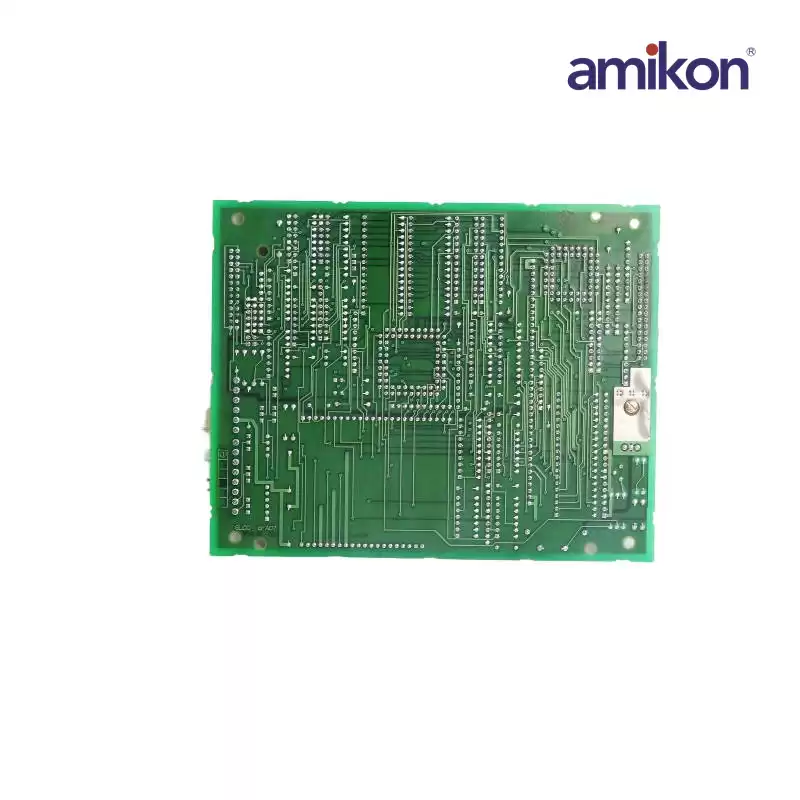

General Electric DS200SLCCG3AFG LAN Communication Board

General Electric DS200SLCCG3AFG LAN Communication Board

Dimensions:

18.8x4.2x2cm

Weight:

0.24kg

Master Gateway：

-20 to 45°C

Voltage：

132 VDC

DS200SLCCG3AFG is a high frequency power supply board developed for General Electric’s Mark V board series. When installed, this 600 to 700 W board is capable of inputting both AC and DC sourced power supplies.

This card can be installed and applied to a wide range of GE manufactured drives and exciters. AC power sourced to the board can measure between 80 and 132 VAC. Should DC power be inputted to the drive, sources can rate between 105 and 140 VDC.

DS200SLCCG3AFG

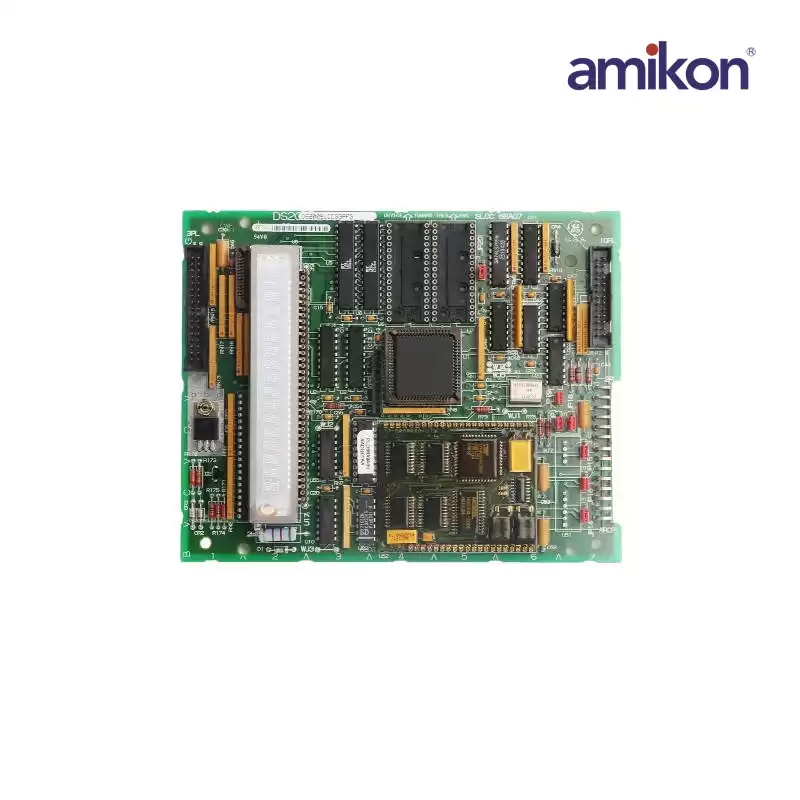

DS200SLCCG3A is a LAN Communication Card and is part of the GE Speedtronic Mark V & EX2000 gas turbine control system. The LAN Communication Card (SLCC) contains both isolated and no isolated circuits for communication inputs to the controller. The SLCC board connects to the NTB/3TB, SDCC, TCCB, and to the DCFB through a 2PL connector. The SLCC boards are used in either Mark V (or) EX2000 control cabinet. An operator interface module that includes a digital display and keypad used for software adjustment diagnostic testing and digital readout of fault codes included on the SLCC board. The SLCC features a 16 position alphanumeric display (and display controller U-18) that connects to the programmer module.

The programmer module mounts on the SLCC and plugs into a connector (KPPL). The principal microprocessor on the SLCC is the LAN control processor (U1).

The LCP software is stored in replaceable EPROMS (U6, U7). The LCP dedicated RAM is provided by (U8, and U9).

Dual ported RAM (U5) is used for communication between the LCP and the driver controller processor (DCP) on the DS215SDCC Drive control card (SDCC) via 3PL.
