General Electric DS200TBQAG1ABB RST Terminal Board
|
|
Dimensions:
|
28.6x7x3.5cm
|
Weight:
|
0.32kg
|
|
Master Gateway：
|
-20 to 25°C
|
Voltage：
|
12VDC
|
|

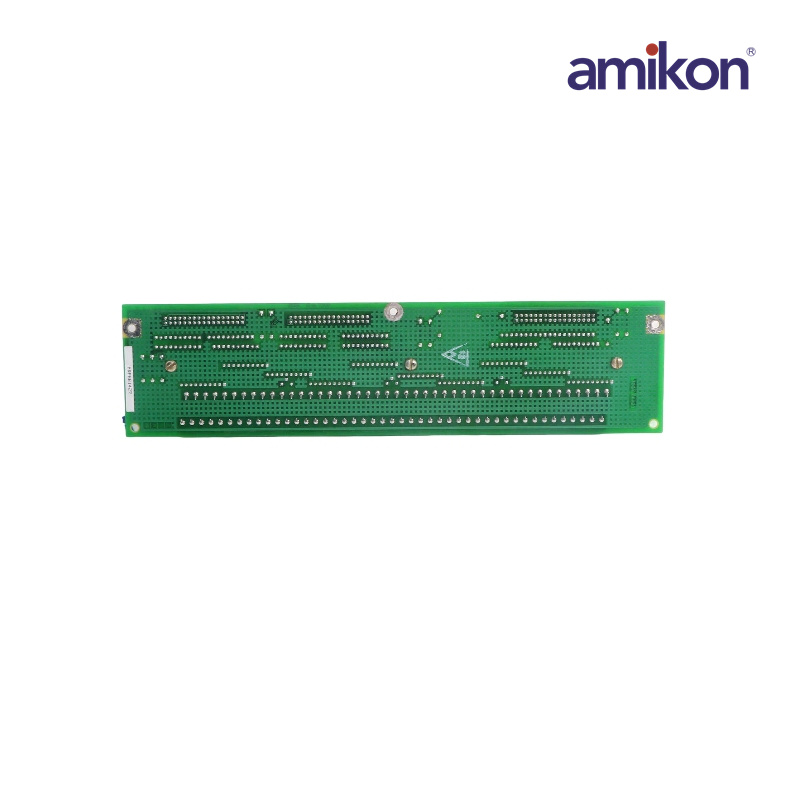

The GE RST Terminal Board DS200TBQAG1A features 2 90-pin terminal blocks to support a maximum of 180 signal wires. The terminal blocks are labeled TB1 and TB2.
|
|
DS200TBQAG1ABB
|

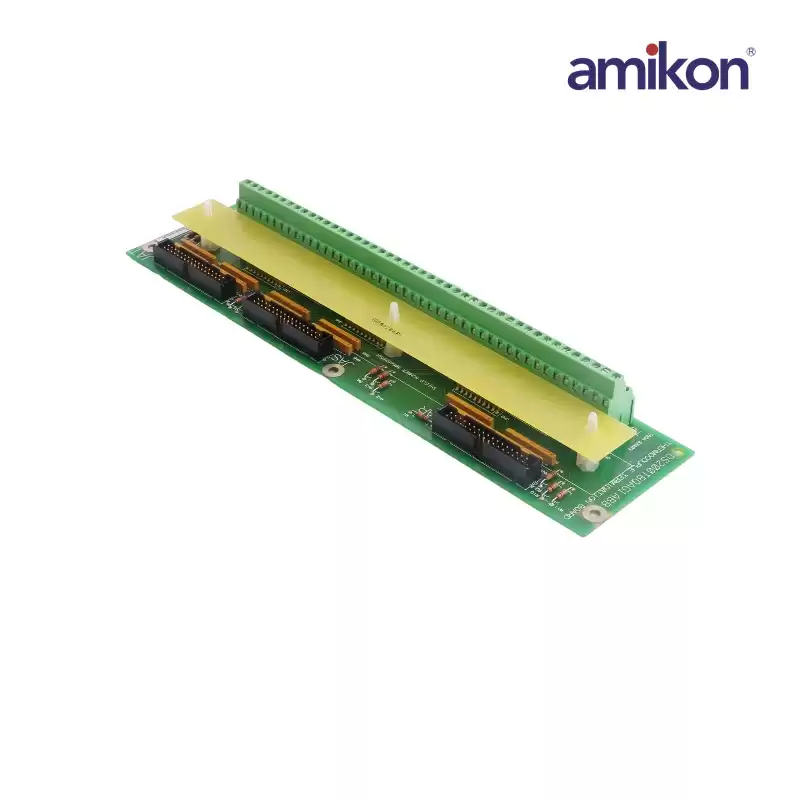

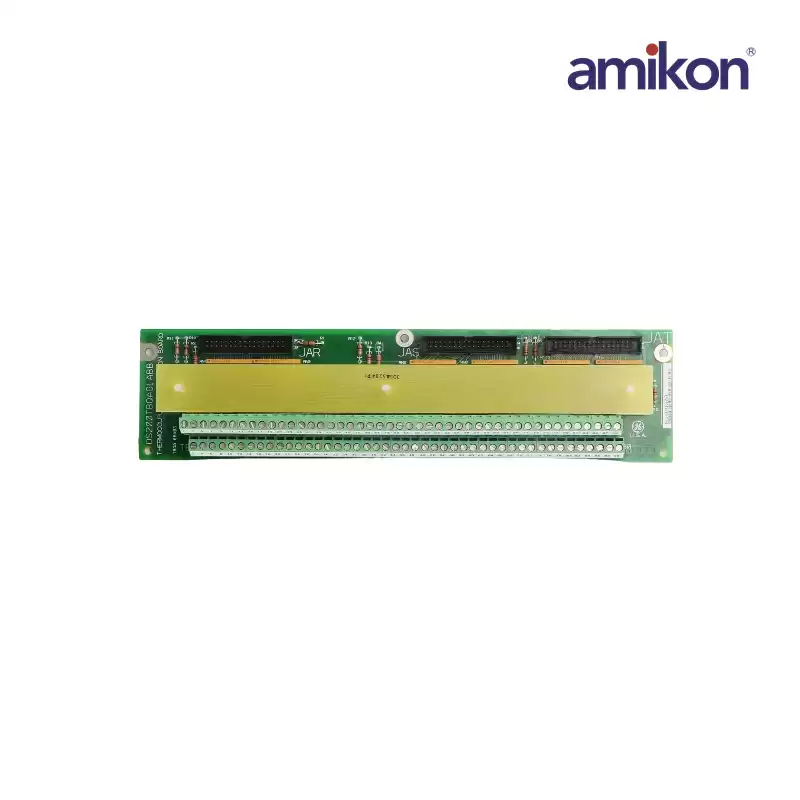

The GE RST Terminal Board DS200TBQAG1A also contains 3 20-pin connectors. The GE RST Terminal Board DS200TBQAG1A contains five screw holes that secure the board inside the board rack. The board is heavy due to the terminal blocks and the multiple signal wires so it must be securely attached to the rack.
The written instructions that come with the GE RST Terminal Board DS200TBQAG1ABB outline the signal connections that can be made to the terminals when you initially install them. After you've figured out which terminal to attach a signal wire to, you'll need to remove the insulation from the signal wire's end to expose around 0.5 inches. The wire should then be inserted into the terminal after loosening the screw. To secure the wire, tighten the screw. Pull the wire gently to make sure it's securely fastened in the terminal and can't be easily withdrawn.
|
