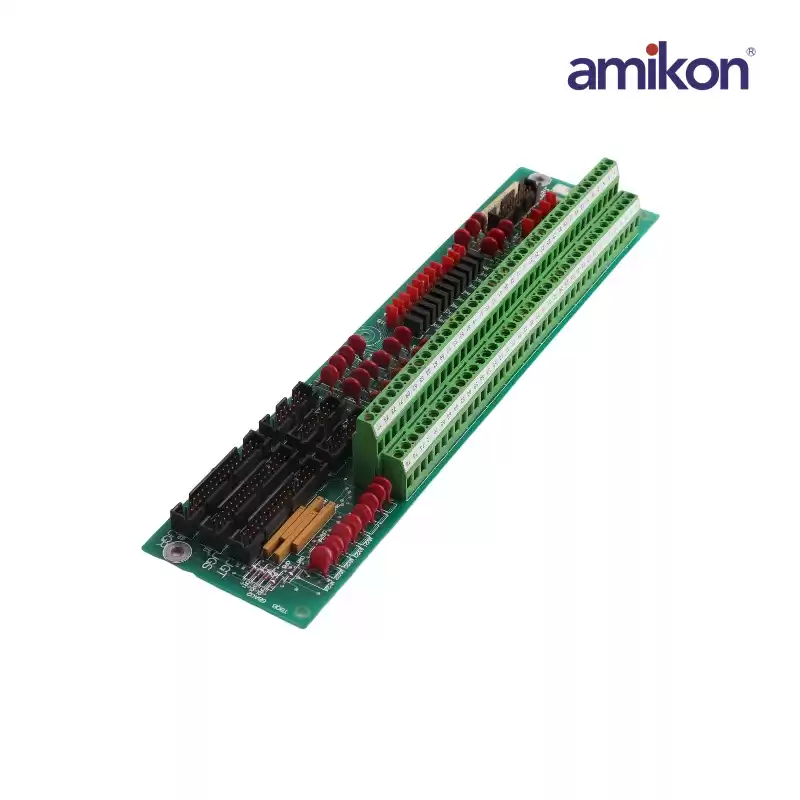

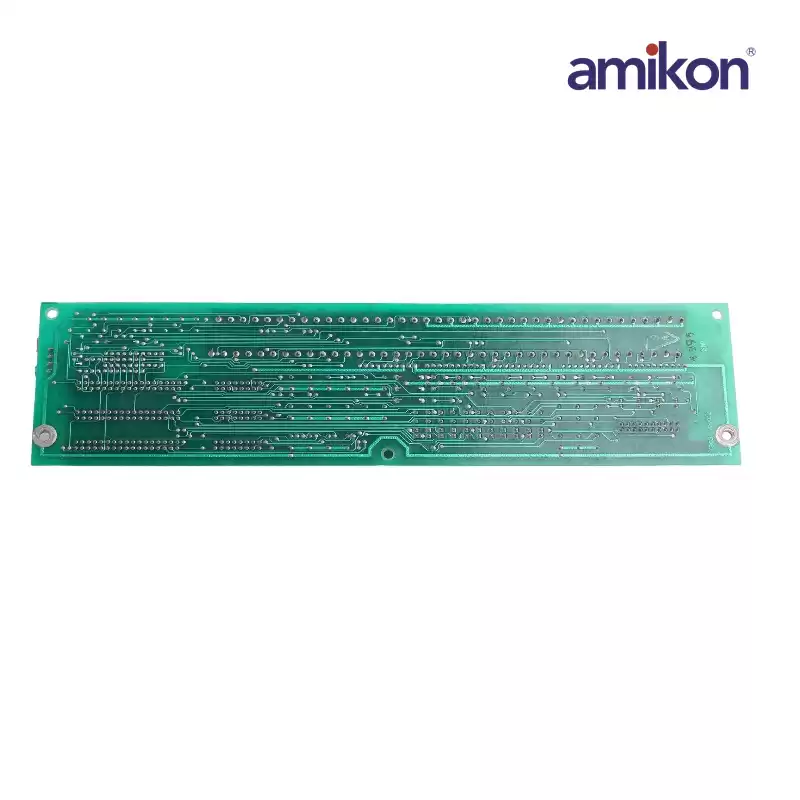

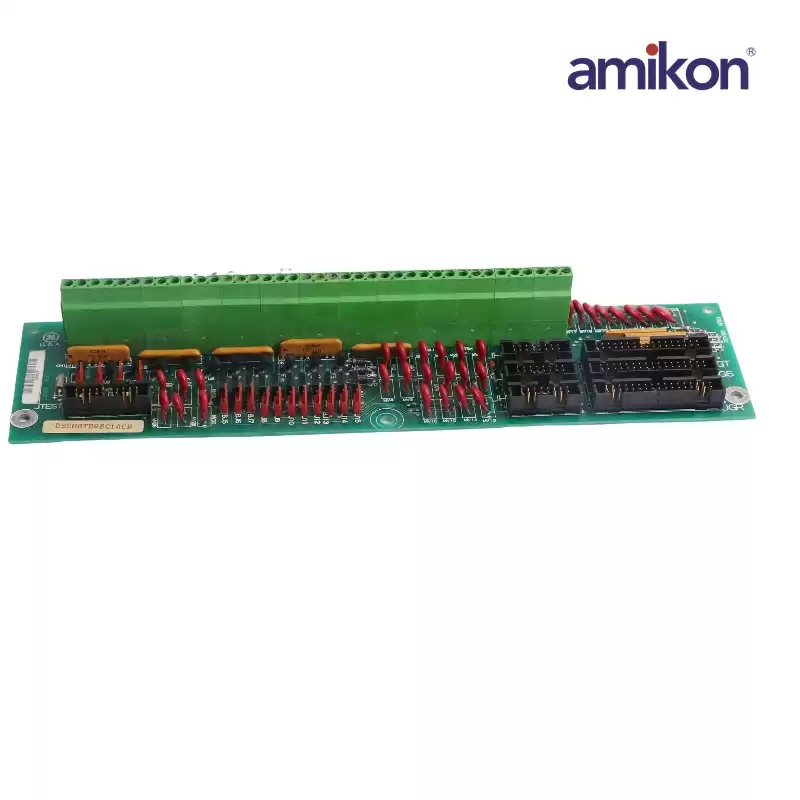

General Electric DS200TBQBG1ACB Analog termination Board
|
|
Dimensions:
|
28.8x7.2x3.8cm
|
Weight:
|
0.32kg
|
|
Master Gateway：
|
-20 to 35°C
|
Voltage：
|
12VDC
|
|
DS200TBQBG1ACB
|
There are two terminal blocks on the GE Analog Termination Board DS200TBQBG1ACB. Each block has 77 signal wire connections. 15 jumpers, three 34-pin connectors, and three 16-pin connections are likewise found on the GE RST Analog Termination Board DS200TBQBG1ACB. The copper signal wires are connected to the board using the 154 terminals. The signal cables are connected to the drive's other components and boards, and the board receives and processes the signals.
|
