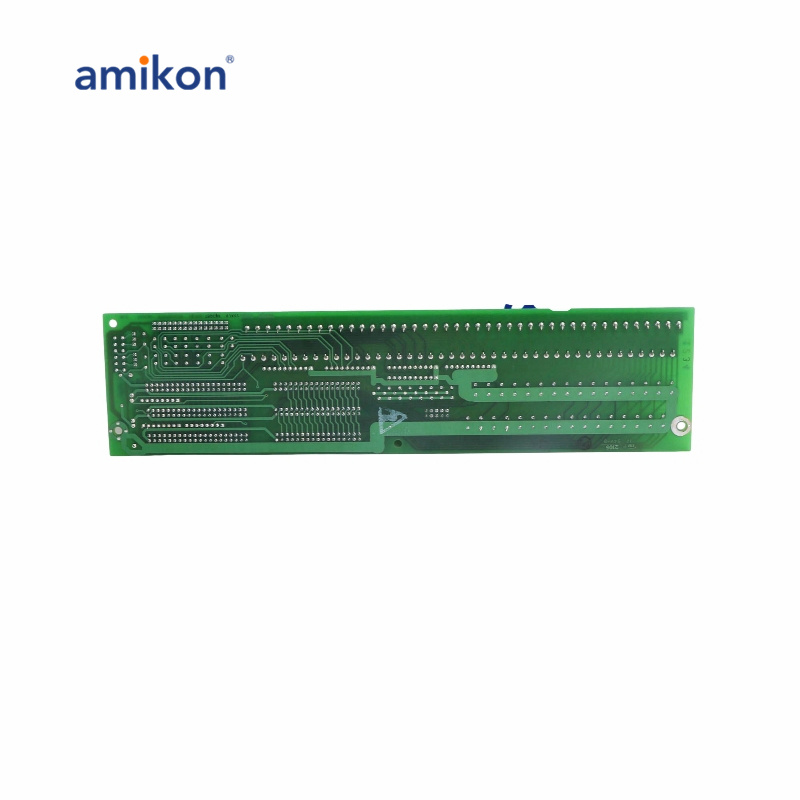

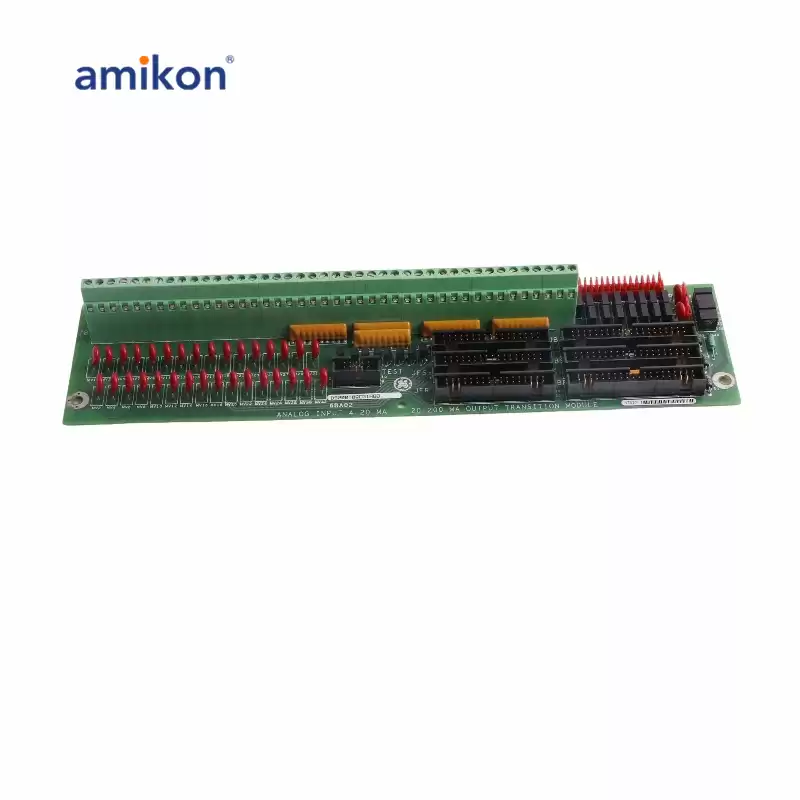

General Electric DS200TBQCG1ABB RST Analog Termination Board

The GE RST Analog Termination Board DS200TBQCG1ABB features 2 terminal blocks. Each block contains 83 terminals for signal wires. The GE RST Analog Termination Board DS200TBQCG1ABB also contains 15 jumpers, 3 40-pin connectors, and 3 34-pin connectors.

The board is 11.25 inches in length and 3 inches in height and it is engineered for installation in the rack cabinet.

DS200TBQCG1ABB Data sheet

The board has one hole for attaching the board in each corner. When you install the board, it aligns with the matching holes in the rack.

GE Power Excitation Board DS200RTBAG3AEB is an optional board that is installed in the drive cabinet and it features ten relays that are driven either directly from the plot relays or remotely by the user.

Diagnostics are available on the drive if you have a need to verify the relays are setup correctly or if you suspect a problem with the drive or the DS200RTBAG3AEB board.
