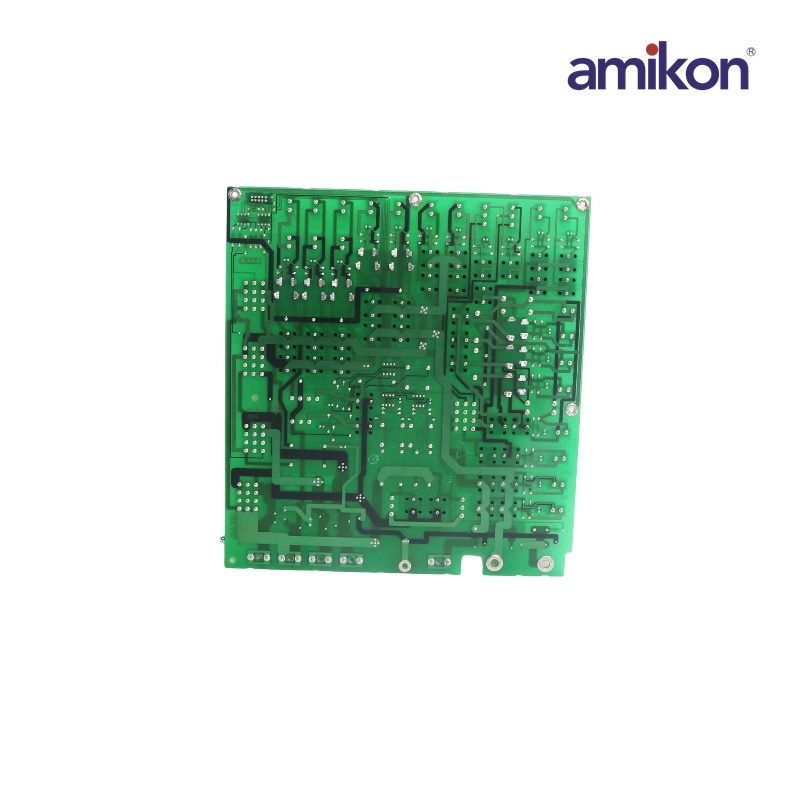

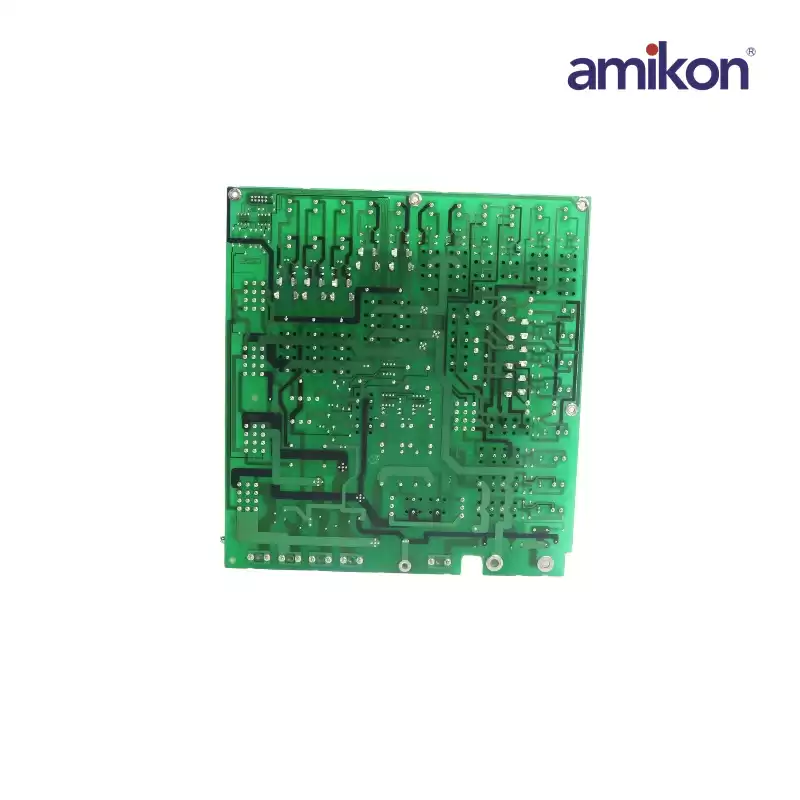

General Electric DS200TCPDG1BEC Power Distribution Board

General Electric DS200TCPDG1BEC  Power Distribution Board

Dimensions:

26.8x29.1x5cm

Weight:

0.98kg

Master Gateway：

-20 to 25°C

Voltage：

12VDC

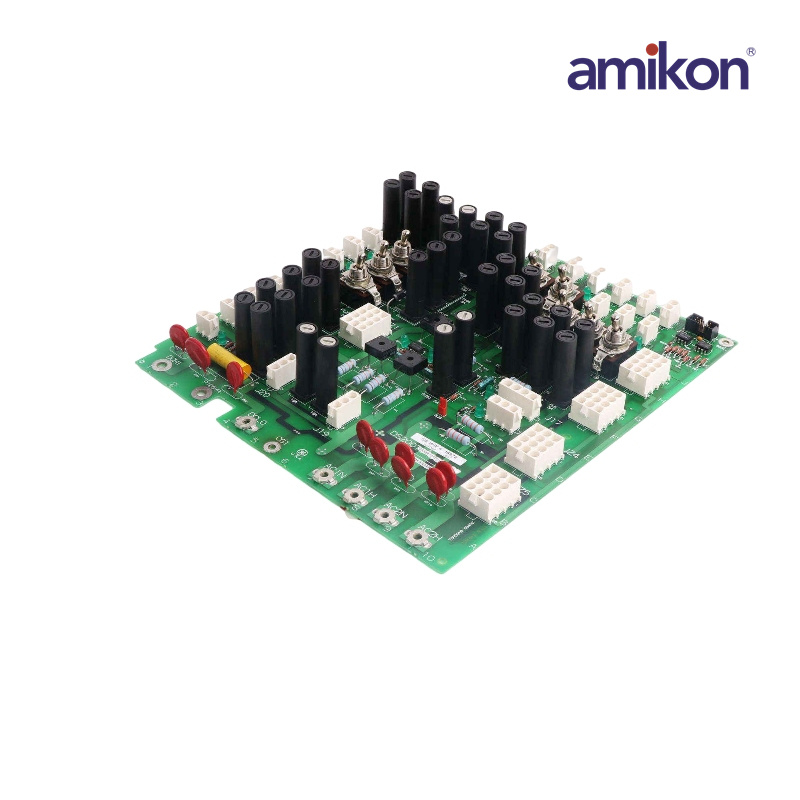

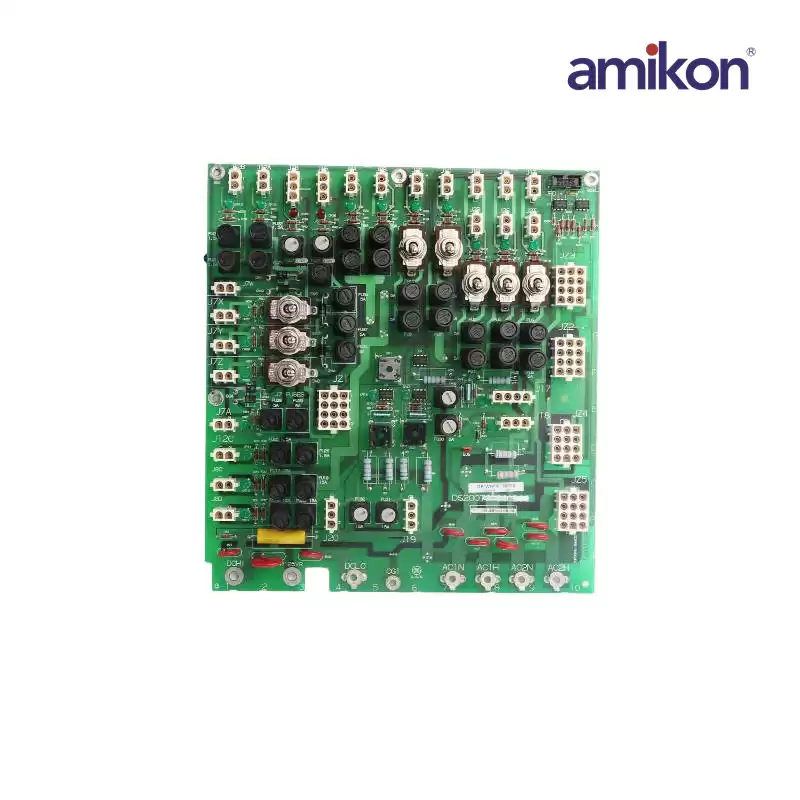

DS200TCPDG1BEC is a power distribution board developed by GE under the Mark V series. There are 36 fuses, 8 toggle switches, and 4 signal wire terminals on the Board.

There are also 36 OK LEDs and 1 10-pin connector. The GE Power Distribution Board DS200TCPDG1BEC is outfitted with 36 fuses housed in black plastic housings.

DS200TCPDG1BEC

The GE Power Distribution Board DS200TCPDG1BEC features 8 toggle switches, 36 fuses, and 4 signal wire terminals. It also has 36 OK LEDs and 1 10-pin connector. The GE Power Distribution Board DS200TCPDG1BEC is populated with black plastic housings for 36 fuses.  The fuses are situated in a vertical position in the canisters and are easy to access and replace when needed.

To replace a fuse on the board, twist the top of the canister to open it. The top remains attached to the canister for ease of use. Use your thumb and one finger to remove the fuse from the canister. It is best practice to discard the blown fuse so that is isn’t inserted into a canister again on the board accidently. To install a new fuse, align the fuse with the opening and drop it into the canister. Either end of the fuse can be dropped into the canister. Place the top on the canister and twist it to close it.
