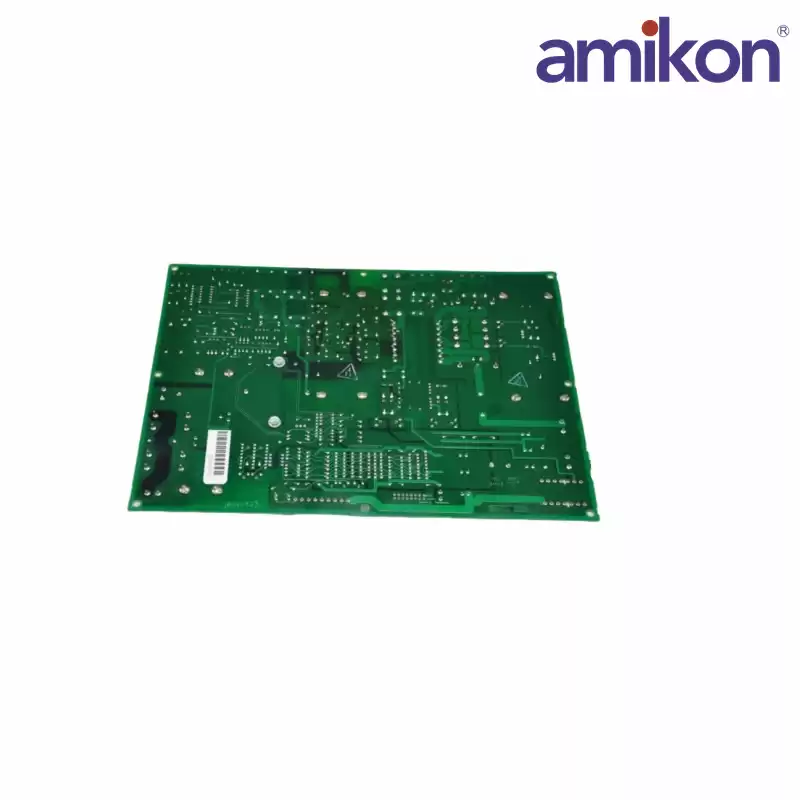

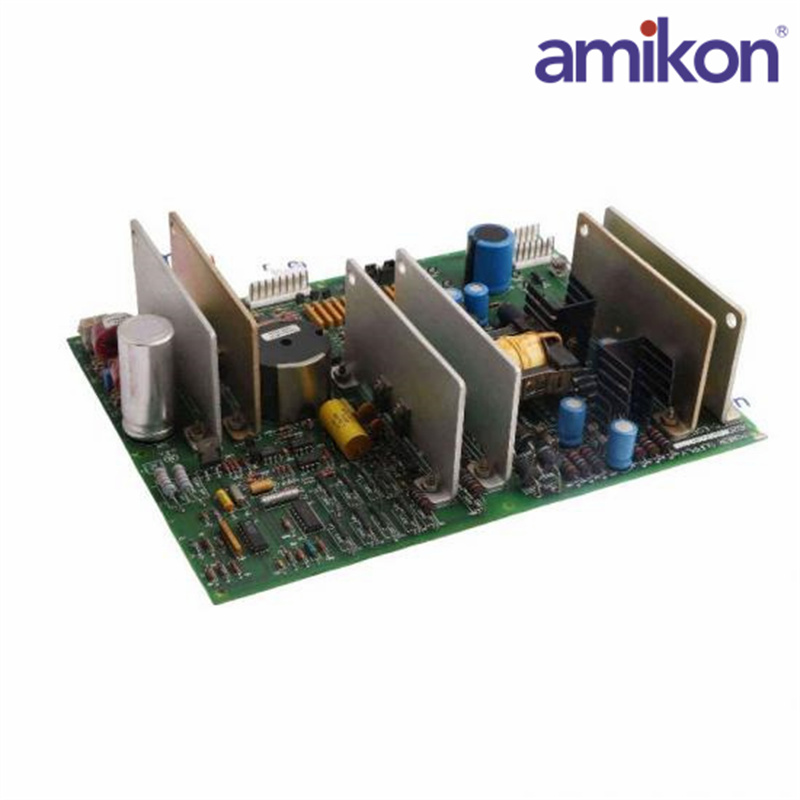

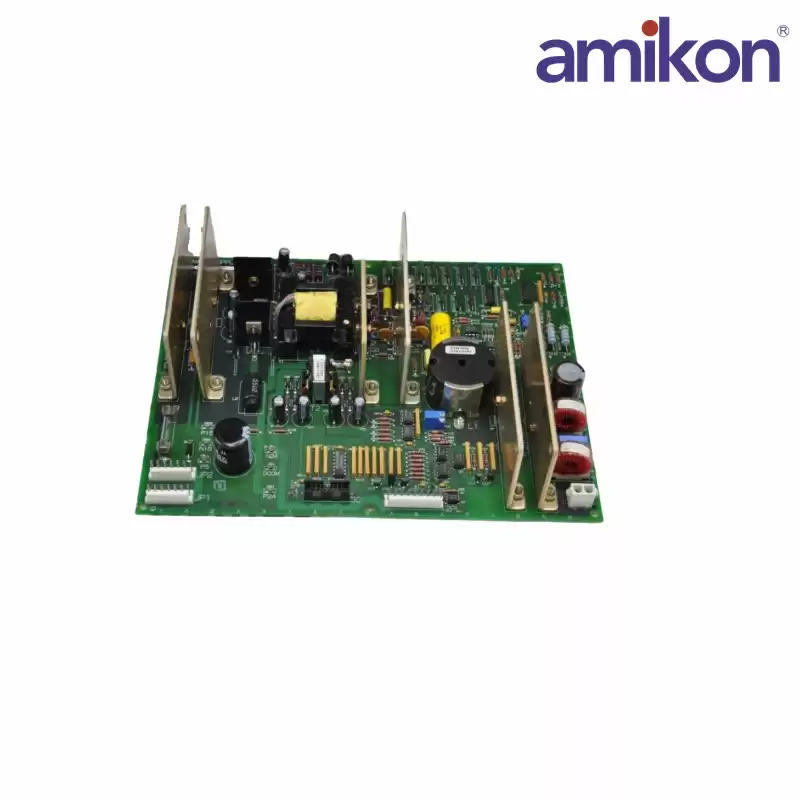

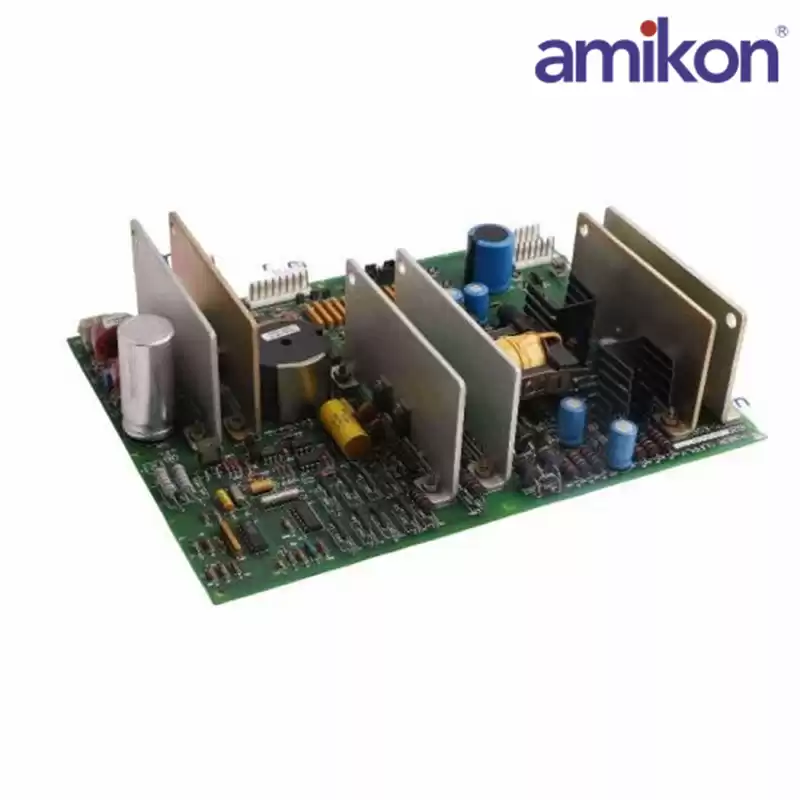

General Electric DS200TCPSG1APE Power Supply DC Input Board

General Electric DS200TCPSG1APE Power Supply DC Input Board

Dimensions:

27.8x21.2x6.5cm

Weight:

1.2kg

Master Gateway：

-20 to 25°C

Voltage：

12VDC

The GE Power Supply DC Input Board DS200TCPSG1APE contains three fuses, one 16-pin connector, and one 9-pin connector. It also contains multiple test points.  The drive in which the GE Power Supply DC Input Board DS200TCPSG1APE is installed features multiple diagnostic tools that you can use to determine if the  board is defective or if other boards and components are operating normally.

DS200TCPSG1APE

DS200TCPSG1APE is a Power Supply DC Input Board and is part of the GE Speedtronic Mark V gas turbine control systems. Three fuses, one 16-pin connector, and one 9-pin connector are included. It also has a number of test points. Multiple diagnostic tools are available on the drive in which the GE Power Supply DC Input Board DS200TCPSG1APE is placed to detect if the board is malfunctioning or if other boards and components are operating normally. The drive has a 2-line display and various keys on the interface panel. You interact with the drive-through menu options that let you choose from a variety of actions. The menus allow you to go around the configuration software and alter the programs that regulate the drive's behavior when it's running.
