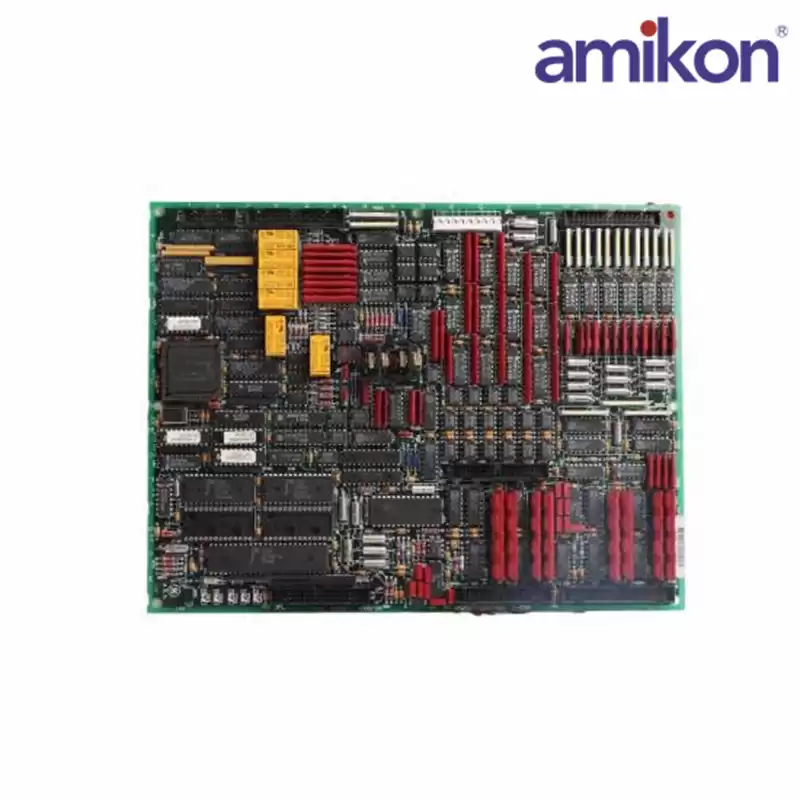

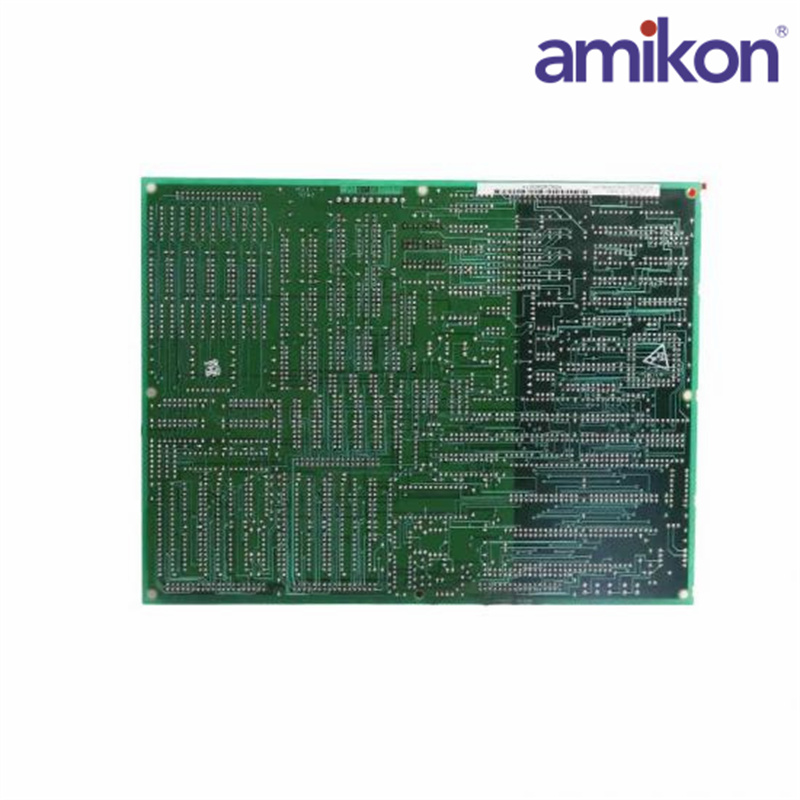

General Electric DS200TCQAG1A ANALOG I/O BOARD
|
|
Dimensions:
|
28x21.4x2cm
|
Weight:
|
0.6kg
|
|
Master Gateway：
|
-20 to 25°C
|
Voltage：
|
12VDC
|
|
DS200TCQAG1A
|
DS200TCQAG1A is an Analog I/O Board developed by GE. The Analog IO Board (TCQA) scales and conditions many of the analog signals read in by terminal boards mounted on the I/O cores R1, R2, and R3. These signals include LVDT inputs, servo valve outputs, thermocouple inputs, 420 mA inputs and outputs, vibration inputs, relay driver outputs, pulse inputs, voltage inputs, and generator and line signals. Some of the signals are written to the STCA board via the 3PL connector. The JE connector is used to exchange the generator and line signals with the TCQC board. The TCQA board scales and conditions 420 mA input signals such as fuel flow pressure and compressor stall-detect signals.
|
