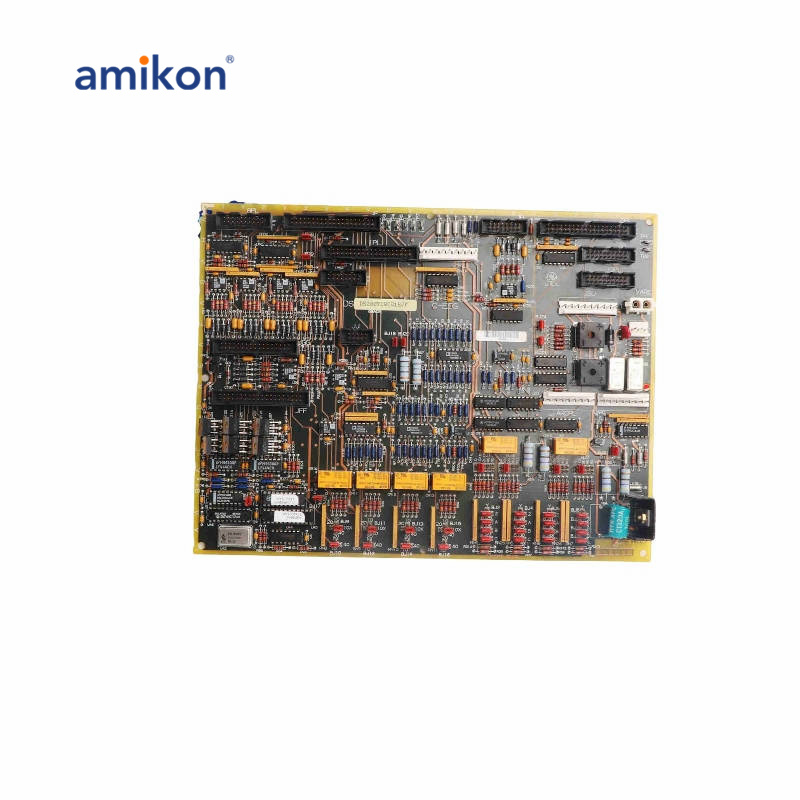

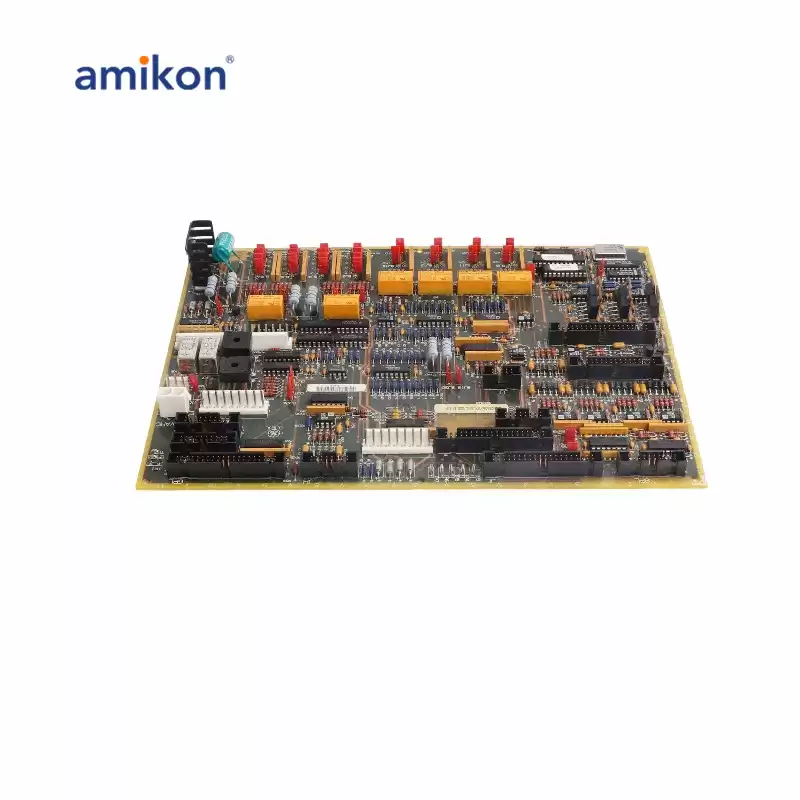

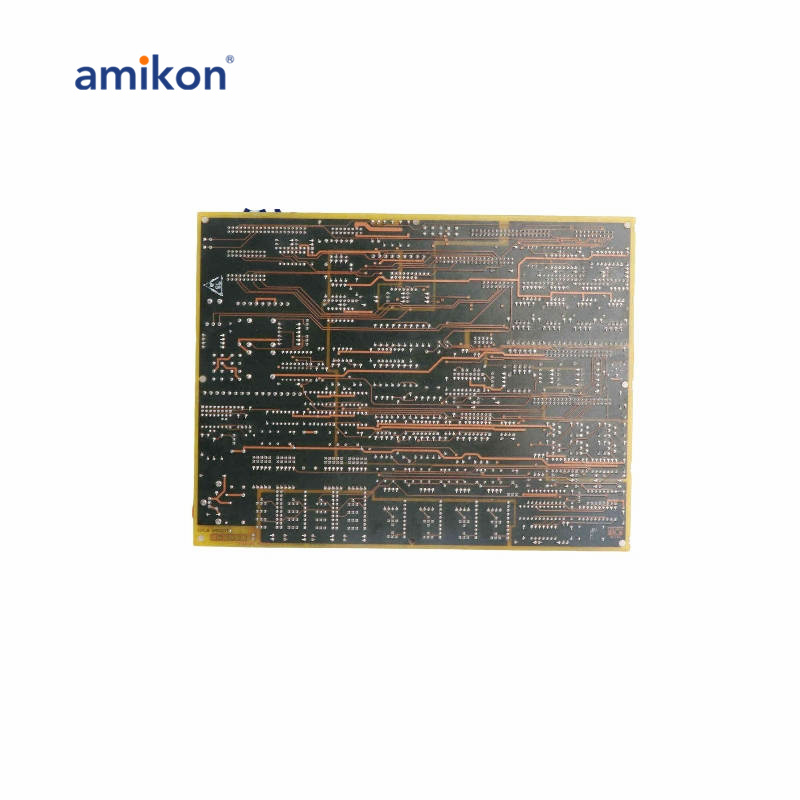

General Electric DS200TCQCG1BJF Overflow Board

DS200TCQCG1BJF is a high frequency power supply board developed for General Electric’s Mark V board series. When installed, this 600 to 700 W board is capable of inputting both AC and DC sourced power supplies.

This card can be installed and applied to a wide range of GE manufactured drives and exciters. AC power sourced to the board can measure between 80 and 132 VAC. Should DC power be inputted to the drive, sources can rate between 105 and 140 VDC.

DS200TCQCG1BJF  Data sheet

The GE RST Overflow Board DS200TCQCG1BJF is populated with 24 jumpers and 3 40-pin connectors. It also has 3 34-pin connectors and 1 16-pin connector. The ID assigned to the 16-pin connector is JC.

The IDs assigned to the 40-pin connectors are JFF, JE, and 6PL. The GE RST Overflow Board DS200TCQCG1BJF also contains several relays that switch circuits on the board on and off.

The IDs of the 34-pin connectors are JFF, 1PL, and JA. The 40-pin connectors and 34-pin connectors attach to ribbon cables that connect the GE RST Overflow Board DS200TCQCG1BJF to other boards and components in the drive.
