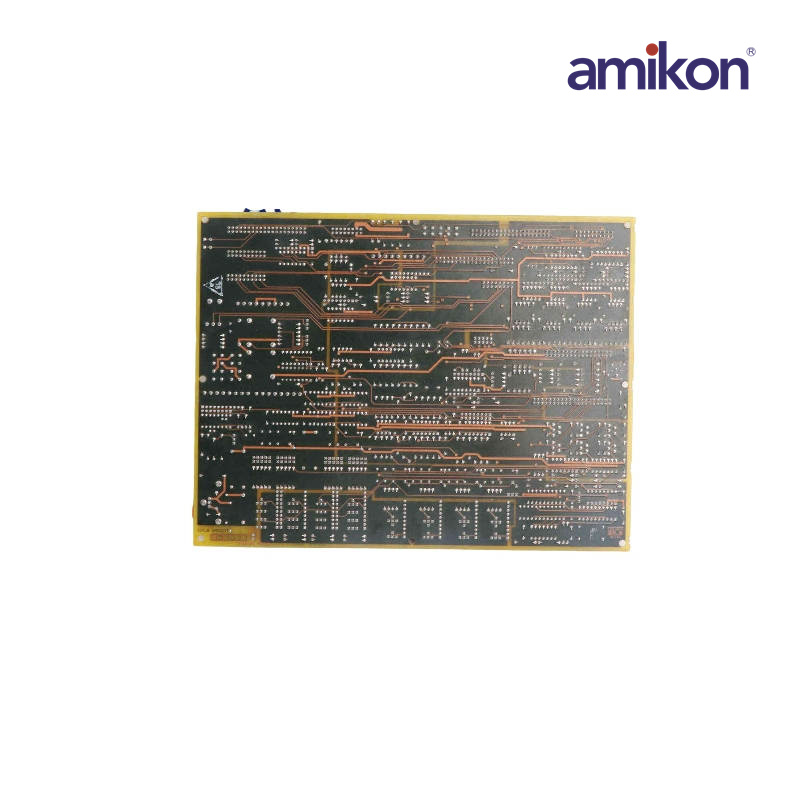

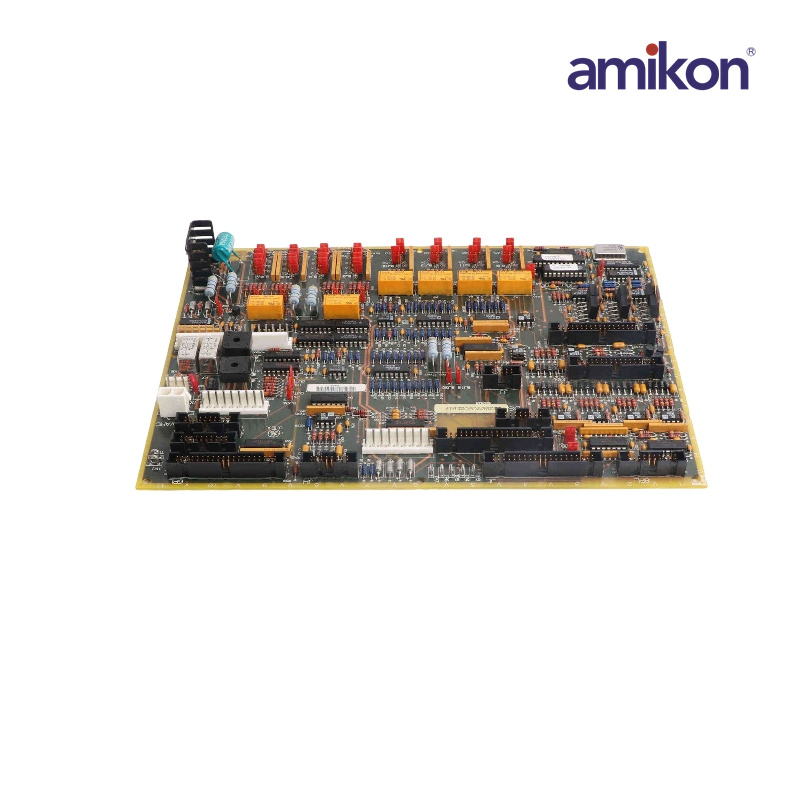

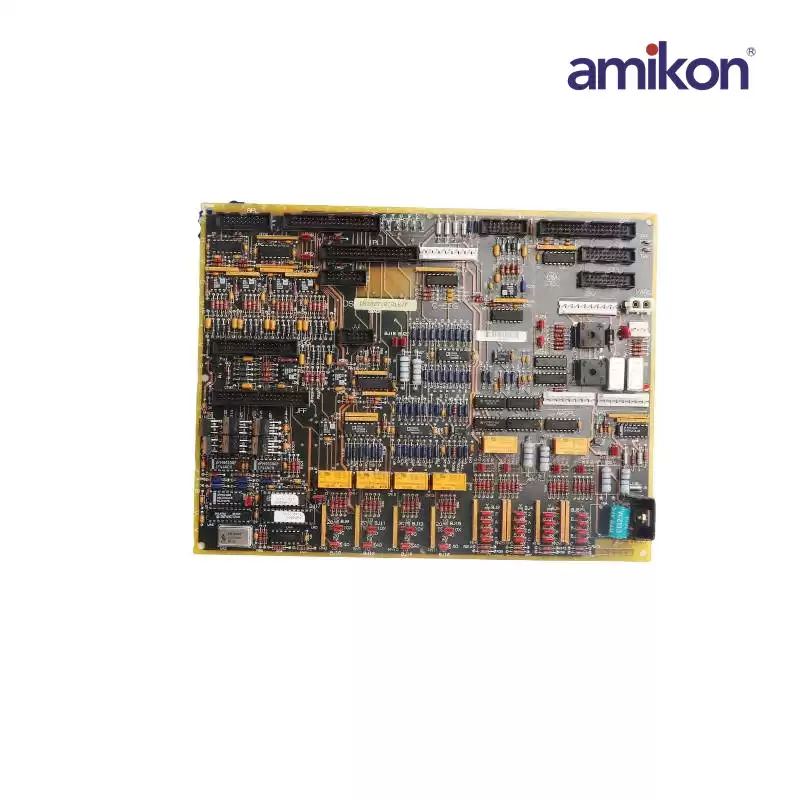

General Electric DS200TCQCG1BJF Overflow Board
|
|
Dimensions:
|
28x21.2x3.5cm
|
Weight:
|
0.46kg
|
|
Master Gateway：
|
-20 to 25°C
|
Voltage：
|
132VDC
|
|
DS200TCQCG1BJF
|
DS200TCQCG1BJF is an RST Overflow Board and is part of the GE Speedtronic Mark V gas turbine control systems. The DS200TCQCG1BJF RST Overflow Board is equipped with 24 jumpers and three 40-pin connections. There are three 34-pin connectors and one 16-pin connector on the board. The 16-pin connector has the ID JC given to it. JFF, JE, and 6PL are the IDs allocated to the 40-pin connectors. Several relays on the GE RST Overflow Board DS200TCQCG1BJF switch on and off circuits on the board.
|
