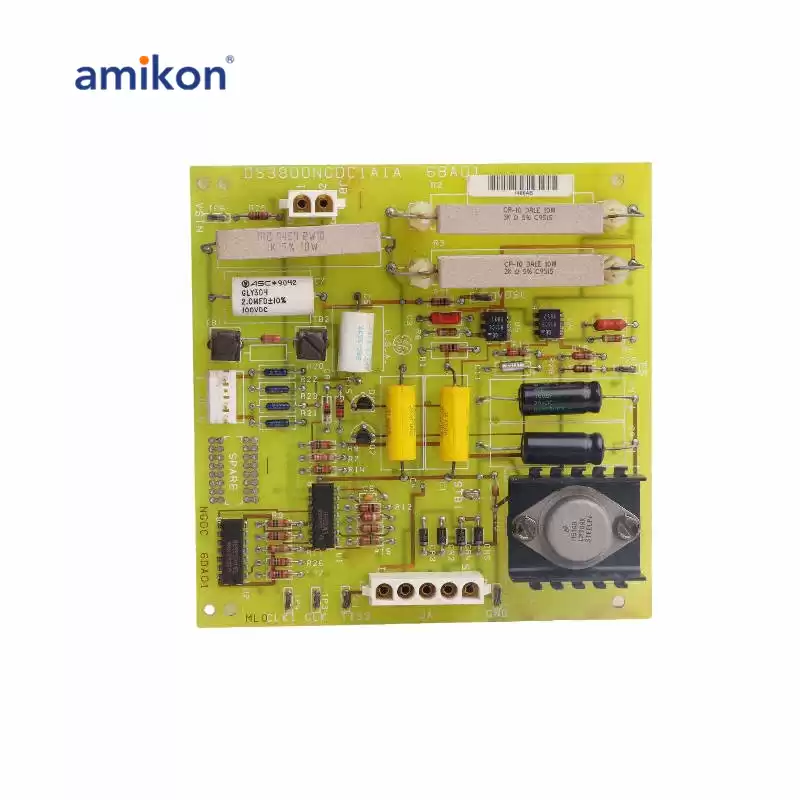

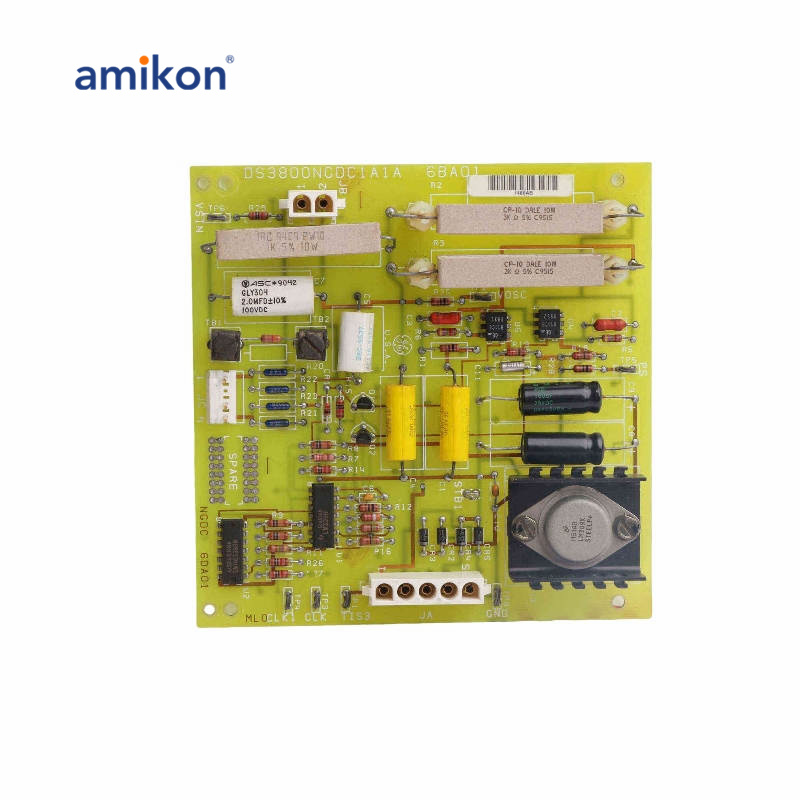

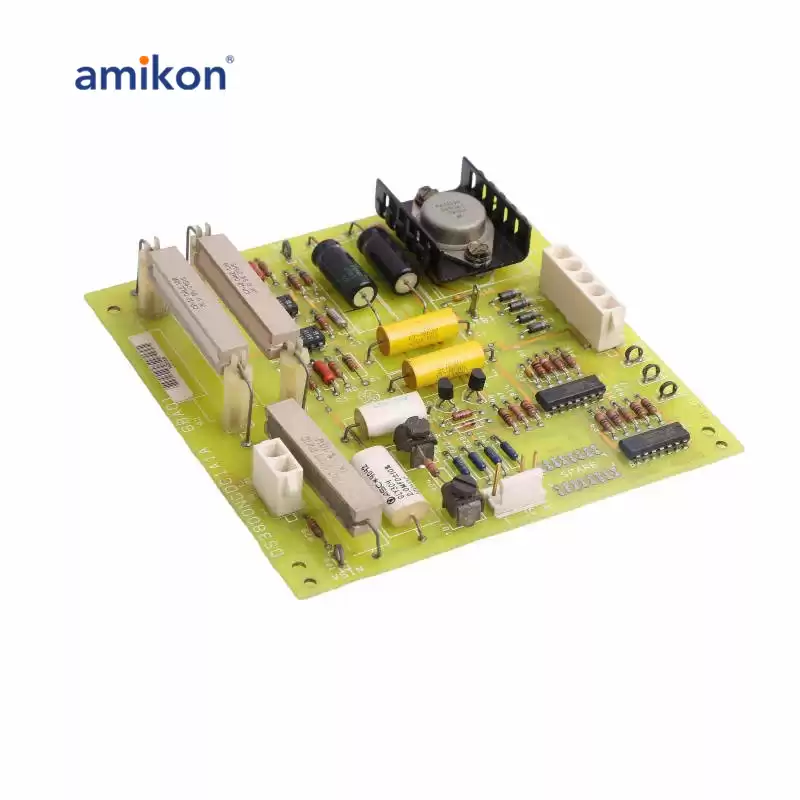

The DS3800NGDC1A1A is built with three transistors. Two of these transistors are small, but the third is a larger Motorola NPN power transistor with a heat sink installed.
|
|
|
DS3800NGDC1A1A Data sheet
|
It has four integrated circuits. It is also built with six test points (TPs.) It is worth noting these TP test points are labeled TP0 through TP5, as TP0 acts as a ground.
|
|
DS3800NGDC1A1A is a ground detector board manufactured by GE as a component for their Mark IV/Speedtronic series.
|
|
This series, designed for gas/steam turbine control, can automate some procedures for the turbine system including shut down and startup.
|
|
