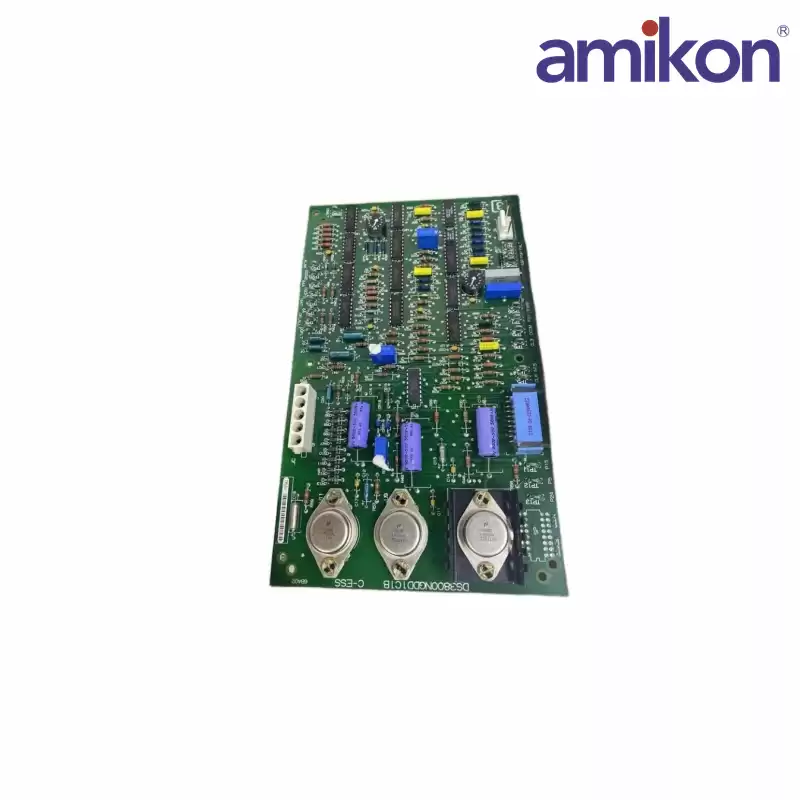

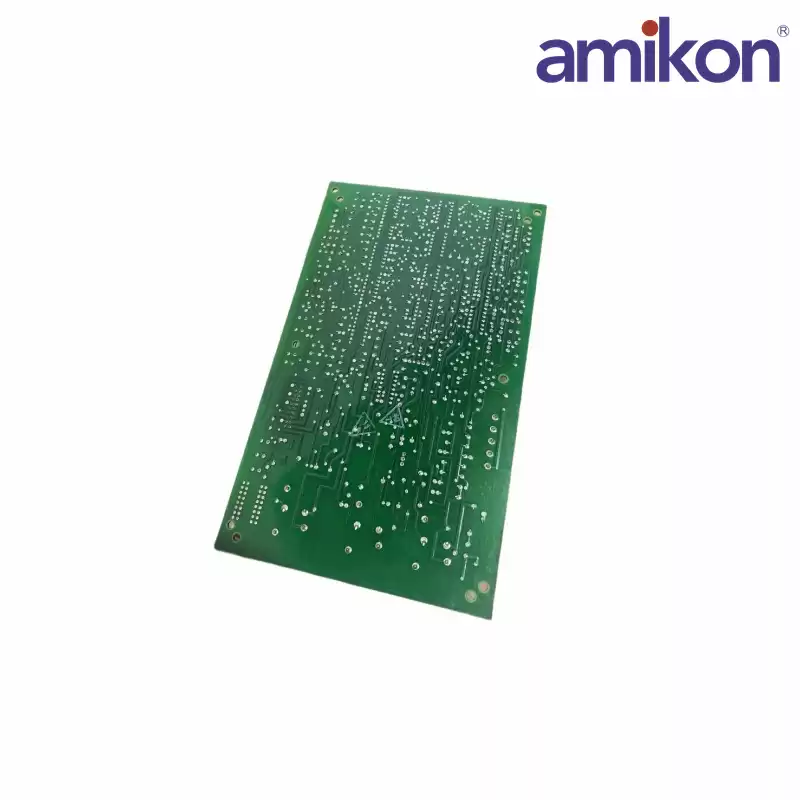

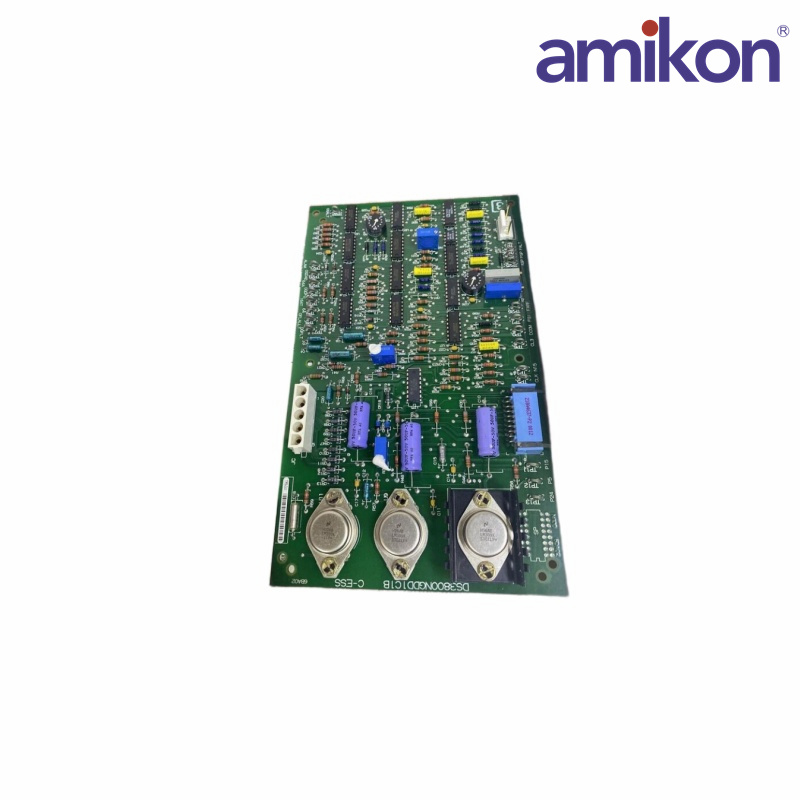

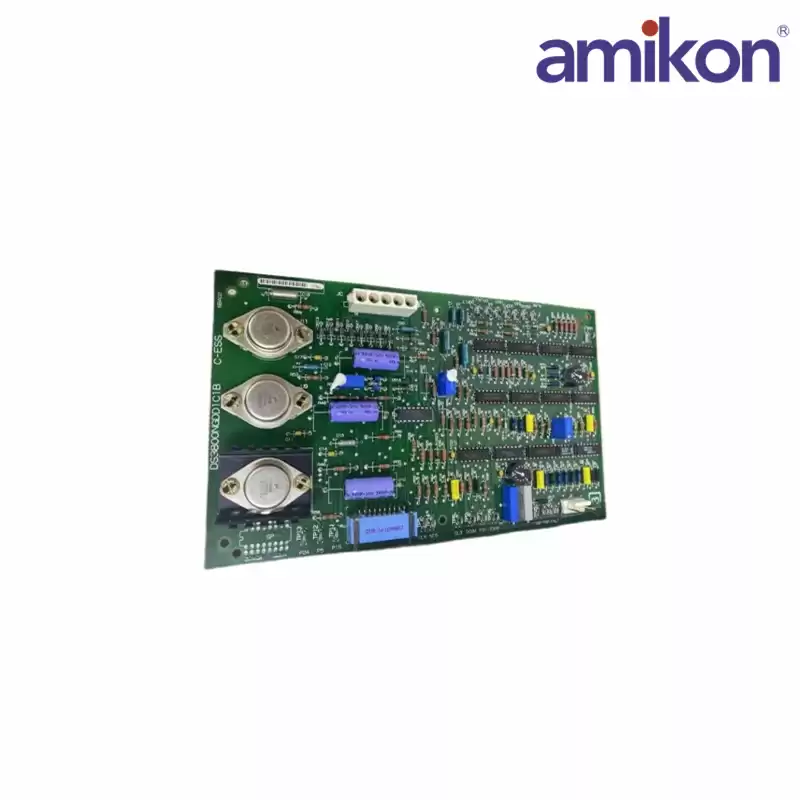

General Electric DS3800NGDD1C1B Field Ground Detector

General Electric DS3800NGDD1C1B  Field Ground Detector

Dimensions:

23x13.8x2cm

Weight:

0.24kg

Master Gateway：

-20 to 35°C

Voltage：

12VDC

DS3800NGDD1C1B

The GE DS3800NGDD1C1B is a Field Ground Detector used in General Electric's Mark IV and Mark V turbine control systems. Here’s a comprehensive overview of its features, functions, and maintenance:

Key Features:

Field Ground Detection: The primary function of the DS3800NGDD1C1B is to monitor and detect ground faults in the field wiring connected to the turbine control system. This helps in identifying potential issues that could affect the system’s performance or safety.

Safety and Reliability: By detecting ground faults, the board contributes to the safety and reliability of the turbine control system. It helps in preventing electrical faults from causing damage or affecting the control system’s operation.

Interface: It interfaces with the control system to provide real-time status and diagnostic information regarding field ground conditions.

Signal Processing: The board processes signals from various sensors and inputs to determine the presence of ground faults. It helps in isolating and diagnosing faults in the system.
