General Electric DS3800XAIB1E1E DS3820AIQA1A1A Analog I/O Board

General Electric DS3800XAIB1E1E DS3820AIQA1A1A   Analog I/O Board

Dimensions:

46.8x31.7x6cm

Weight:

3.3kg

Master Gateway：

-20 to 35°C

Voltage：

12VDC

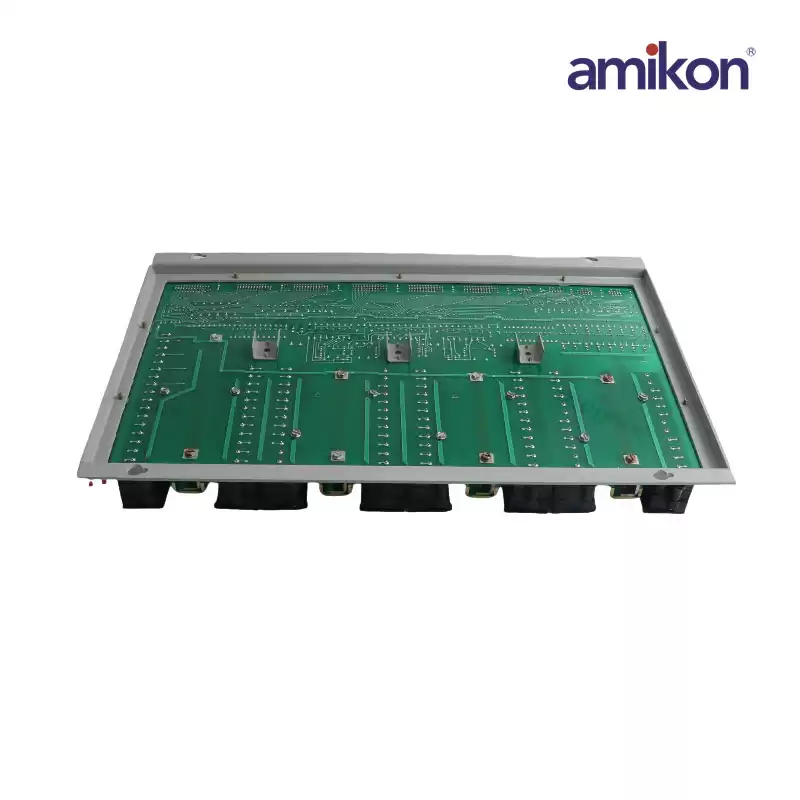

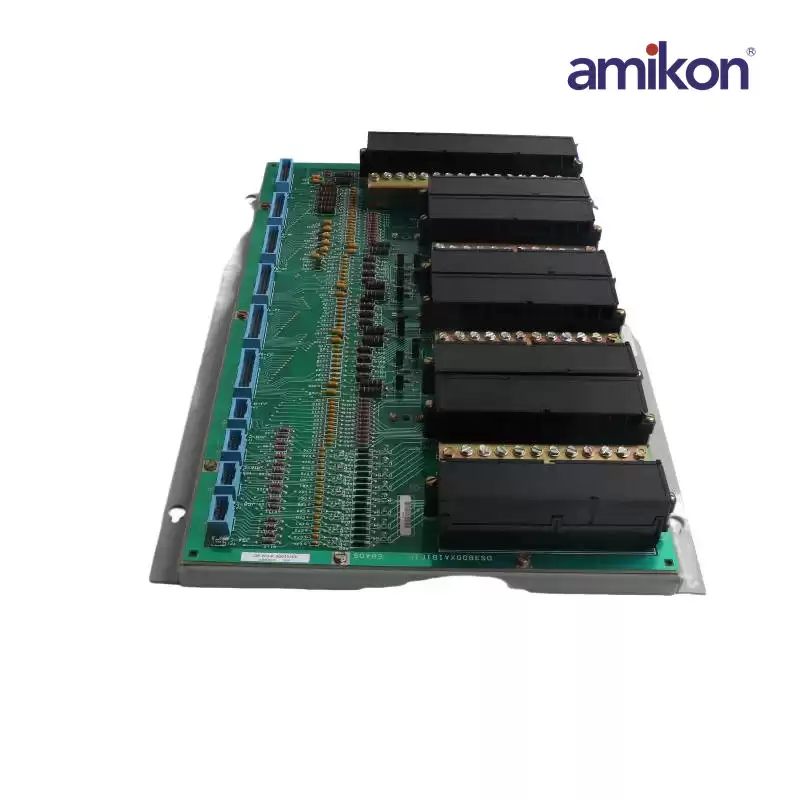

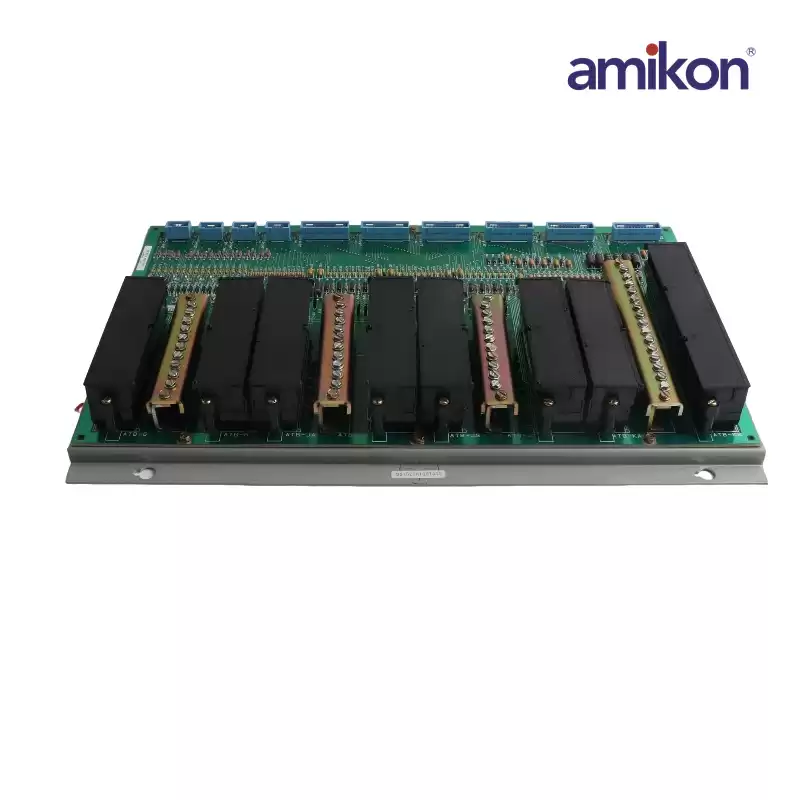

The DS3820AIQA1A1A is a part of General Electric’s Mark IV Speedtronic line. The DS3820AIQA1A1A has eight large black rectangles. The DS3820AIQA1A1A has four metal platforms in between the black rectangles. Three of the metal platforms has twelve metal screws on the top. The fourth metal platform has seventeen metal screws on the top.

DS3800XAIB1E1E DS3820AIQA1A1A

DS3820AIQA1A1A Analog I/O Board  used in the Mark V series of control systems. This board is more advanced than its predecessors and offers both input and output capabilities.

Key Features:

Analog Inputs and Outputs: Handles both analog input and output signals, allowing for both monitoring and control of various parameters.

Signal Processing: Includes features for signal conditioning, scaling, and conversion to ensure accurate data handling.

Interface: Connects with the Mark V control system to facilitate real-time control and data acquisition.

Applications:

Turbine Control Systems: Commonly used in power plants for gas and steam turbine control.

Industrial Processes: Suitable for a wide range of industrial control applications.
