General Electric DS3820AIQA1A1A DS3800XAIB1E1E Analog I/O Board

DS3820AIQA1A1A  DS3800XAIB1E1E

Dimensions:

46.8x31.7x6cm

Weight:

3.3kg

Master Gateway：

-20 to 35°C

Voltage：

12VDC

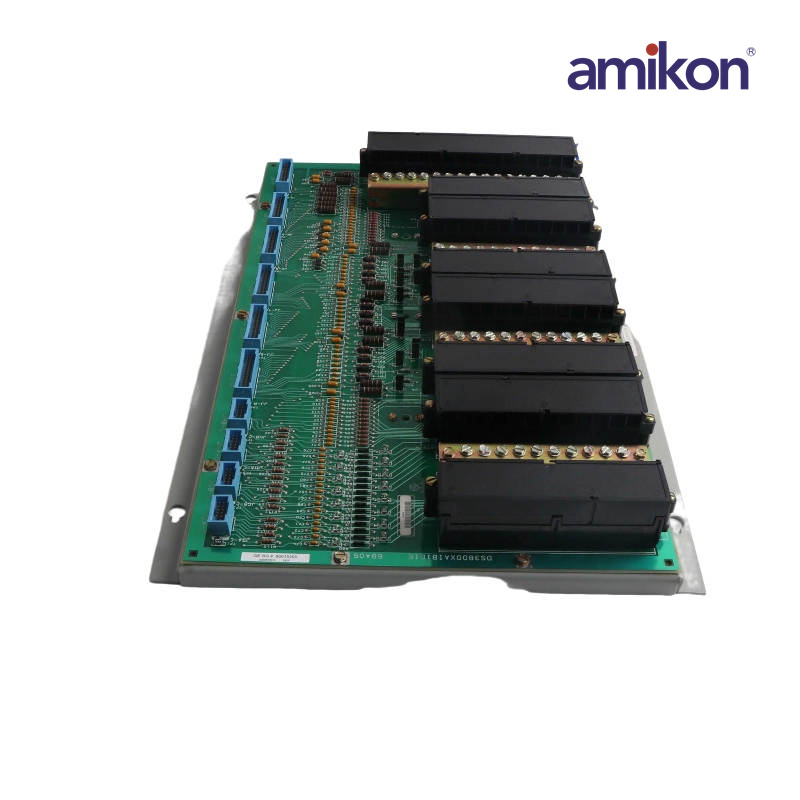

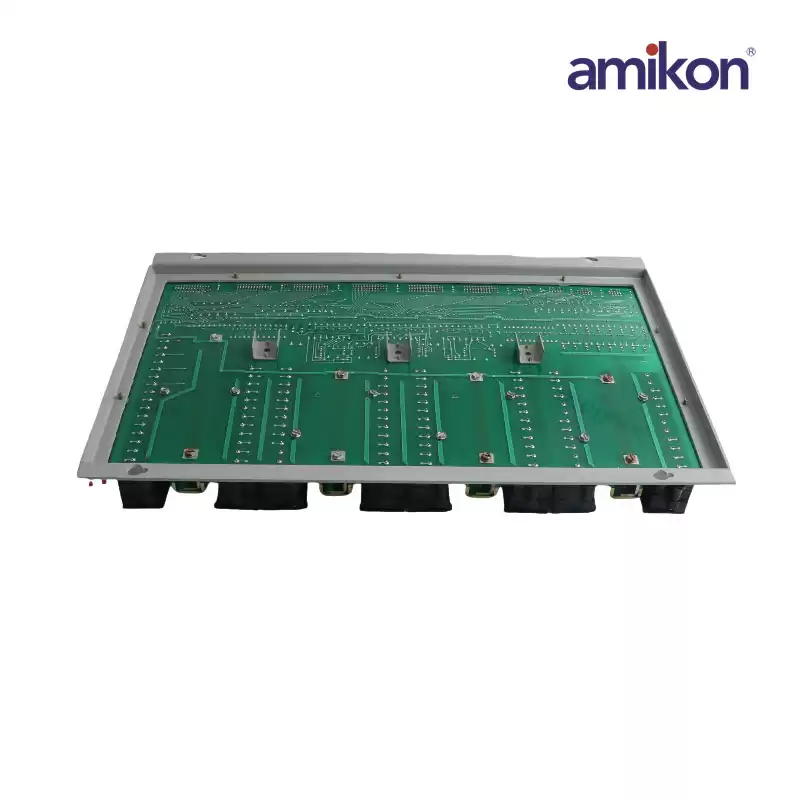

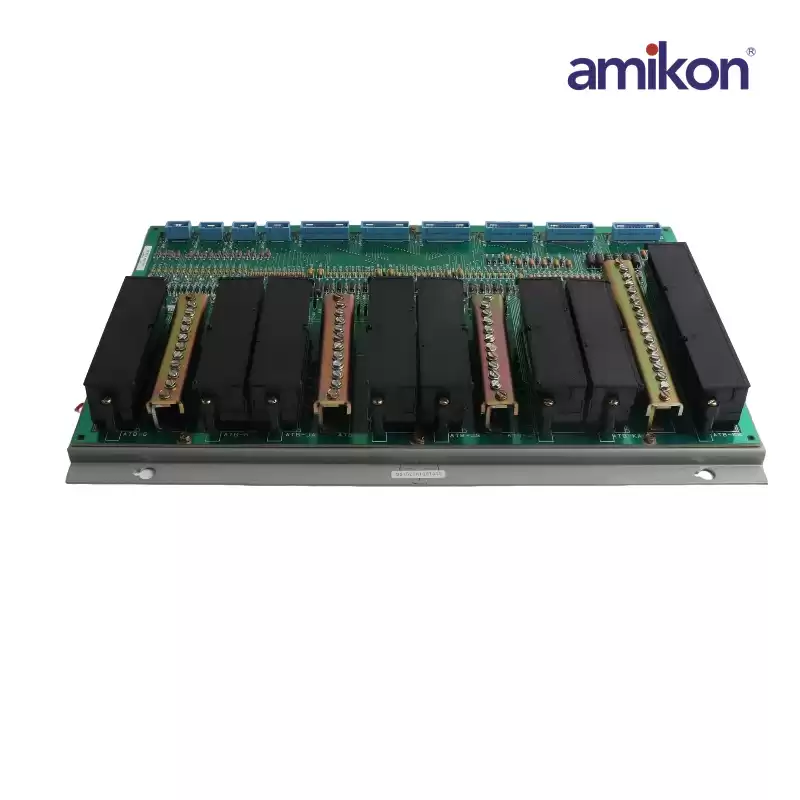

The DS3820AIQA1A1A  DS3800XAIB1E1E is a part of General Electric’s Mark IV Speedtronic line. The DS3820AIQA1A1A  DS3800XAIB1E1E has eight large black rectangles. The DS3820AIQA1A1A  DS3800XAIB1E1E has four metal platforms in between the black rectangles. Three of the metal platforms has twelve metal screws on the top. The fourth metal platform has seventeen metal screws on the top.

DS3820AIQA1A1A  DS3800XAIB1E1E

The DS3820AIQA1A1A  DS3800XAIB1E1E can be installed using the two thin metal edges with two screw ports on either side. The DS3820AIQA1A1A  DS3800XAIB1E1E has eleven small black half circles. These half circles are called transistors. A transistor is a semi-conductive device that helps to amplify or alter electrical power or electronic signals. The didoes direct energy by only allowing it to flow in one direction.

The DS3820AIQA1A1A  DS3800XAIB1E1E  has thirty-two large bright red diodes, sixteen large bright yellow diodes, and sixty-five small teal blue diodes.  The DS3820AIQA1A1A  DS3800XAIB1E1E has four small blue male connection terminals with ten metal pins in each terminal. The DS3820AIQA1A1A has six blue male connection terminals with twenty-six metal pins inside the terminal. These male connection terminals connect the DS3820AIQA1A1A with other circuit boards surrounding it. Resistors have multiple rings of several colors. The resistors can have up to five rings to help indicate how much energy it can restrict.
