GE DS3820PSCC1D1B
|
|
Dimensions:19.5x28.5x29cm
|
Country of Origin: United States
|
temperature : -20 to 35°C
|
|
Weight: 5.56KG
|
Voltage：12 VDC
|
Description: Input/Output Circuit Board
|
|

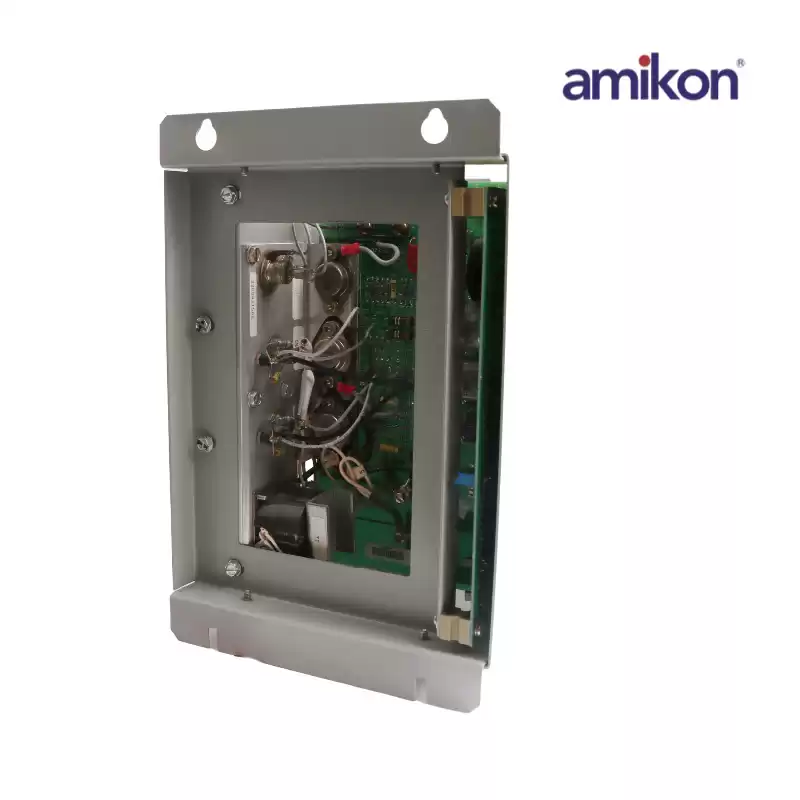

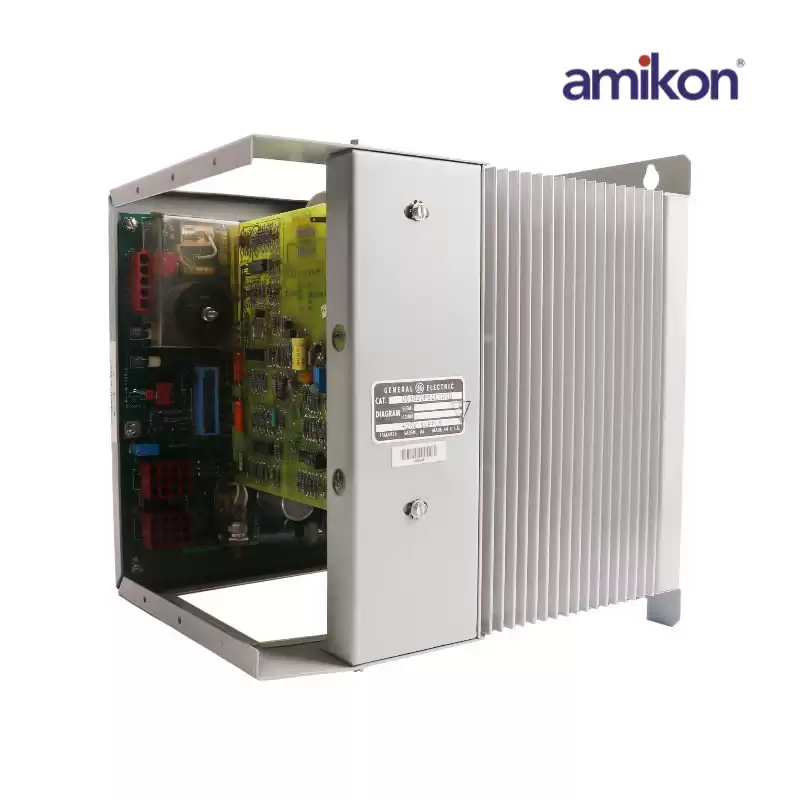

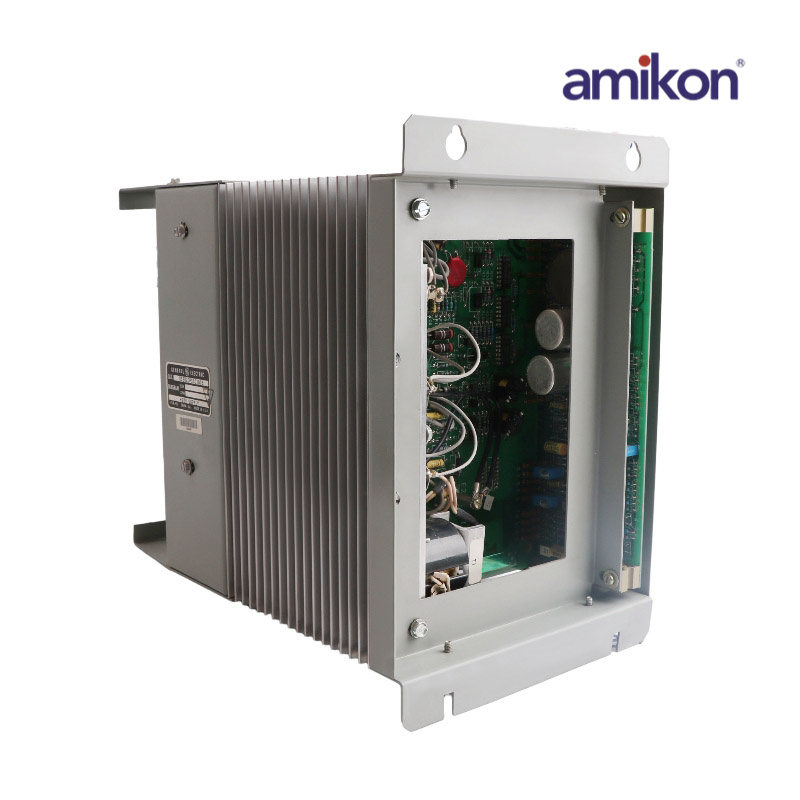

DS3820PSCC1D1B
|
The DS3820PSCC1D1B is a modification of several DS3800 boards. The DS3820PSCC1D1B includes components mounted on PCBs and some components that are freestanding. The module has two terminal strips that do not belong to any printed circuit board. Terminal strips are useful for neatly connecting multiple circuits together by using the screw-type connections on the component’s bar.
Other components used in the DS3820PSCC1D1B include a very large capacitor that is reinforced by a collar clamp, smaller polyester vinyl capacitors and capacitors of other material, potentiometers, LEDs, thermistors, amplifiers, transistors, and spare PTH. The DS3820PSCC1D1B is built by GE as a power supply unit for the Mark IV series. The MKIV manages steam/gas turbine systems and is built using integrated microprocessors which use distributed control functions to take care of such things as start-up and shut down, speed control, and temperature control.
|
|
