Dimensions: 3.5cmx13cmx13.5cm
|
Weight: 0.38kg
|
Product Package: Original Package
|
|
Condition: 100% New Original
|
Input Current: 7 mA
|
|
Full Description: New Factory Package Cleaned and Tested. With 1 Year Warranty.
|
|
IC693PWR322
|

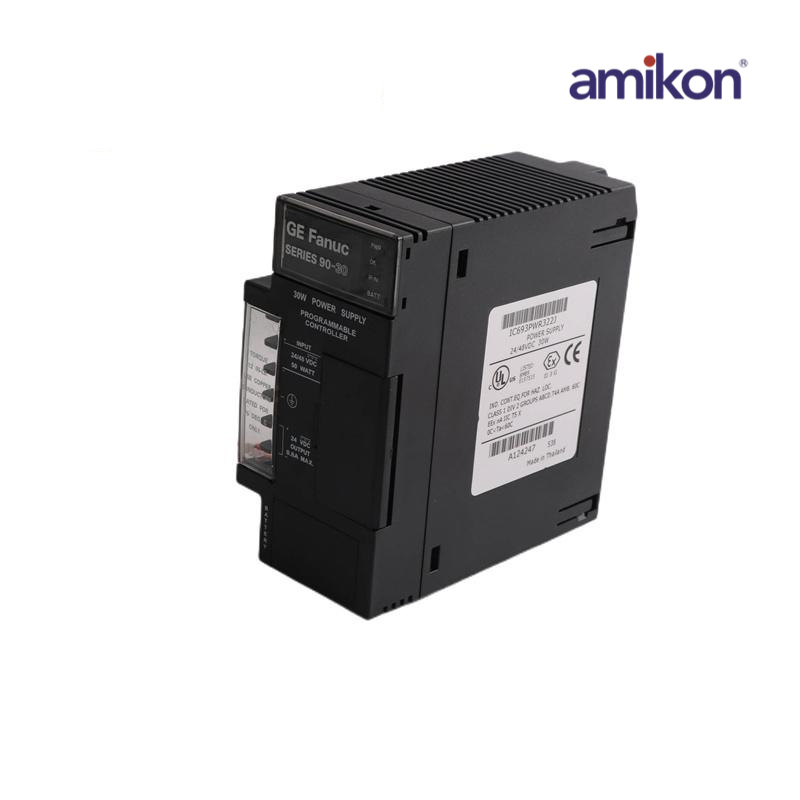

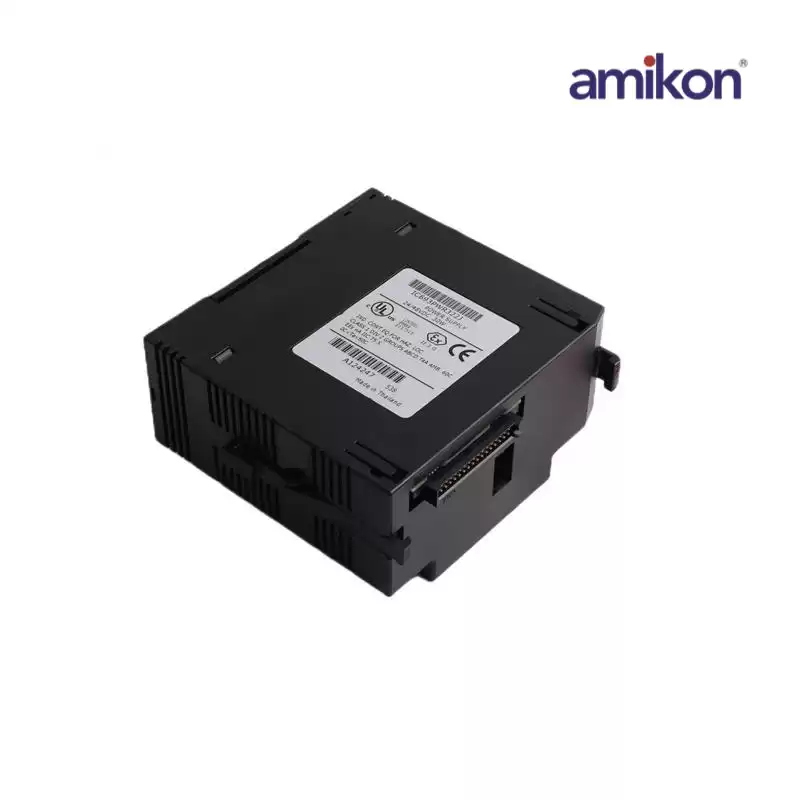

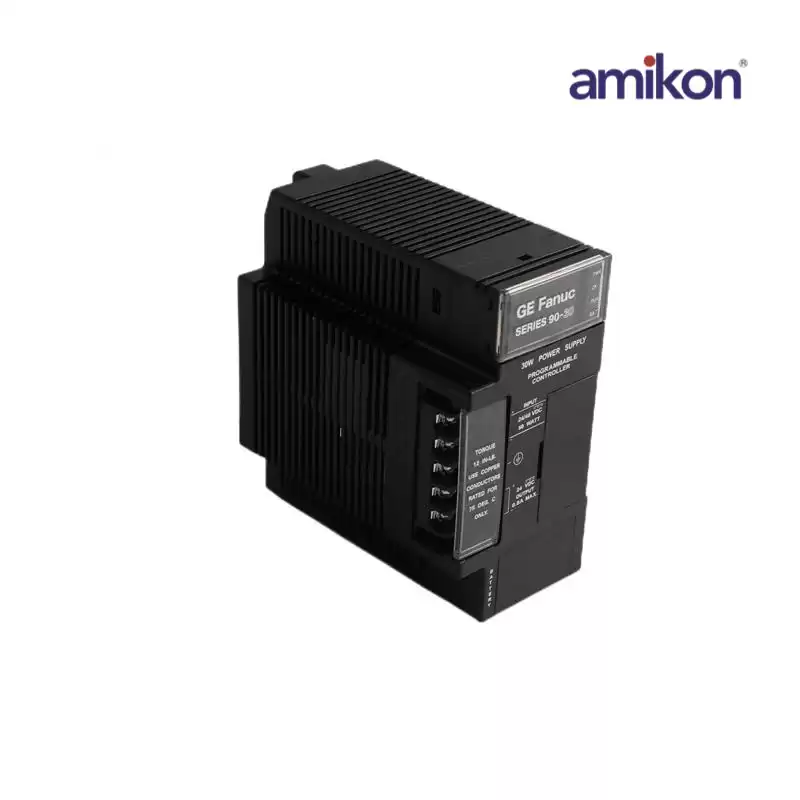

The GE Fanuc IC693PWR322 is a 24/48 VDC standard power supply. The standard unit, which does not include a battery, is designed to work off a nominal input of 12V DC or 48V DC and has a 30 watt output. This unit can be mounted in a standard power supply slot through any IC693 PLC baseplate. Although it is capable of maintaining all outputs (within specifications) with input voltages as low as 18VDC, it will not start with initial input voltages of less than 21 VDC. This power supply provides three separate outputs. These are +5VDC, +24VDC relay output for powering circuits on any IC693 relay output module and +24VDC Isolated power for Input modules.
|
