Technical Specifications for HE693THM884
|
Manufacturer
|
General Electric
|
|
Condition
|
100% New Original
|
|
Brand
|
General Electric
|
Operating Temperature
|
0 to 60°C
|
|
Part Number
|
HE693THM884
|
Accuracy
|
± 0.5°C typical
|
|
Product Name
|
Thermocouple Input Module
|
Resolution
|
0.1°C
|
|
Manufacture Year
|
2021
|
Relative Humidity
|
5% to 95%
|
|
Product Package
|
Original Package
|
Shipping term
|
TNT DHL FEDEX EMS UPS
|
About HE693THM884
|

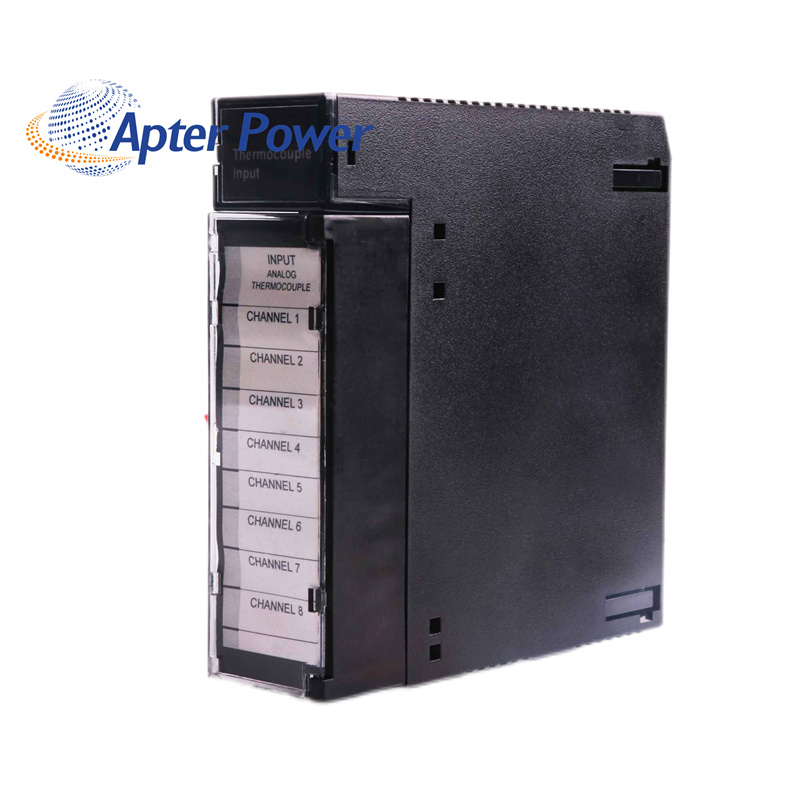

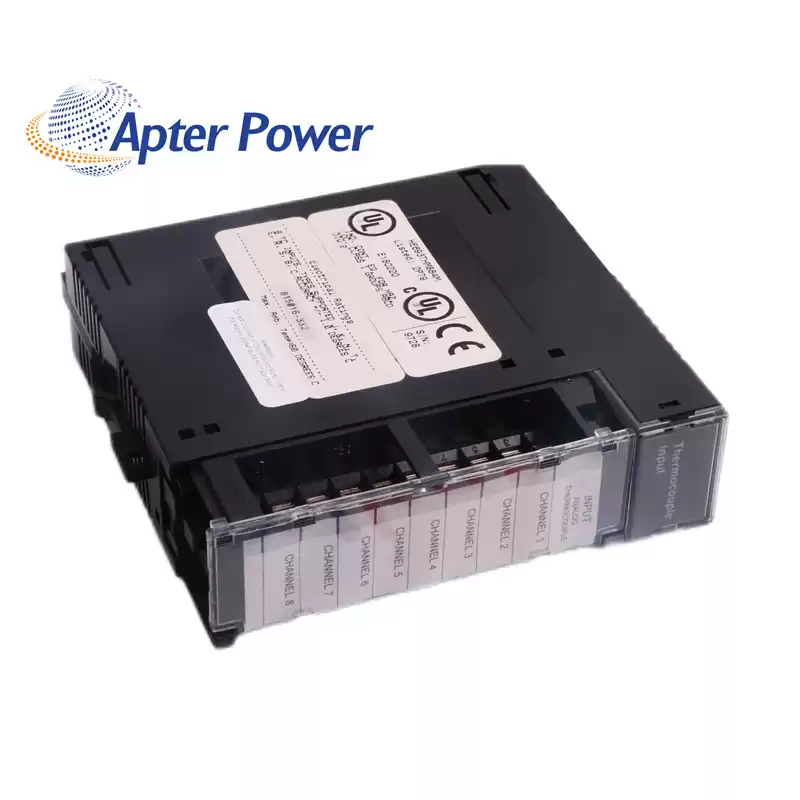

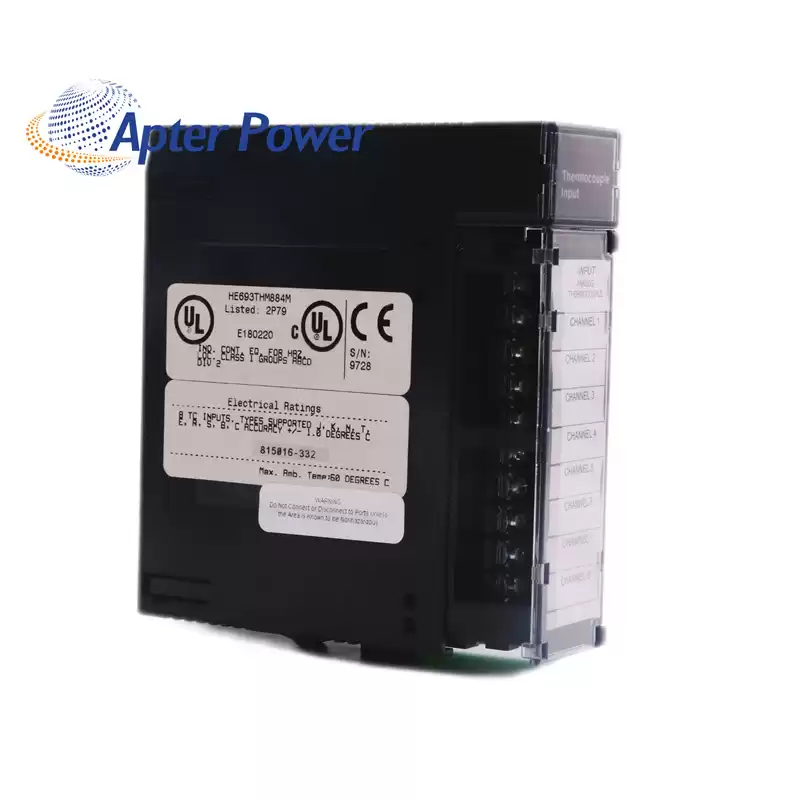

The HE693THM884 is a Thermocouple Input Module.The Horner APG High Resolution Thermocouple Input Module allows thermocouple temperature sensors
to be directly connected to the PLC without external signal processing (transducers, transmitters, etc.).
All analog and digital processing of the thermocouple signal is performed on the module. This highresolution module (0.1°C), can report values to the PLC I/O table in 0.5°C, 0.5°F, 0.1°C, or 0.1°F
increments. The module features eight thermocouple channels assigned to 8 %AI input registers. There
are 16 %I Alarm Bits, one open circuit alarm and one setpoint alarm for each channel.
Alarm setpoints
are set for each channel through 8 %AQ registers. Open circuit alarm bits for each channel correspond
to the first eight successive %I bits, and the alarm setpoints for each channel correspond to the second
eight successive %I bits.On the THM888, A feature available on Revision H or later is auto detected external AD592 cold junction
compensation. This allows cold junction compensation to be accomplished in a remote isothermal
terminal strip, with standard copper wire run from the remote terminal strip to the module. AD Converter
on THM888 hardware has been optimized for 60Hz rejection.
|
