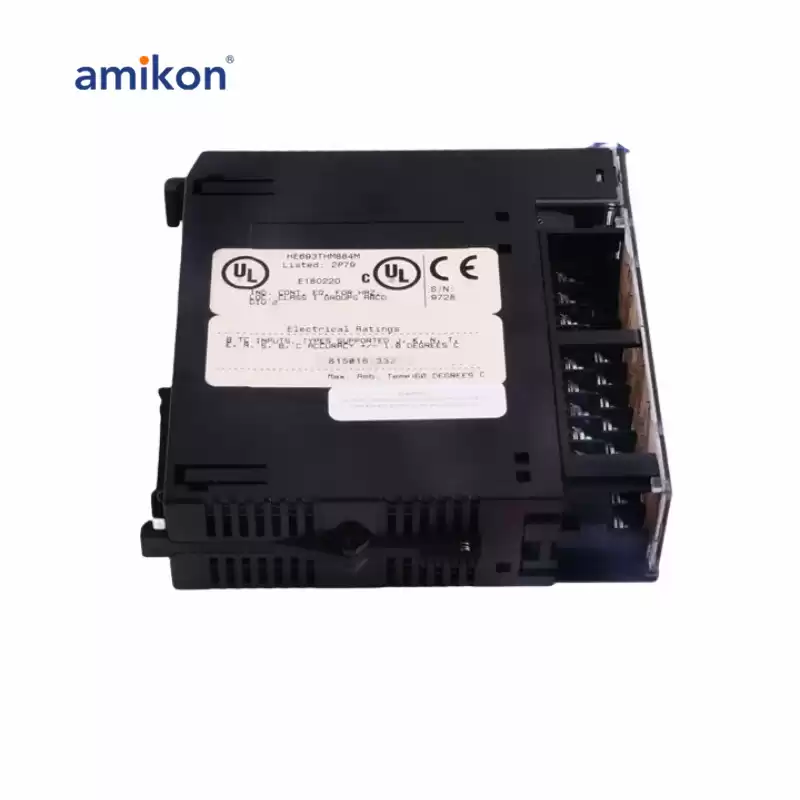

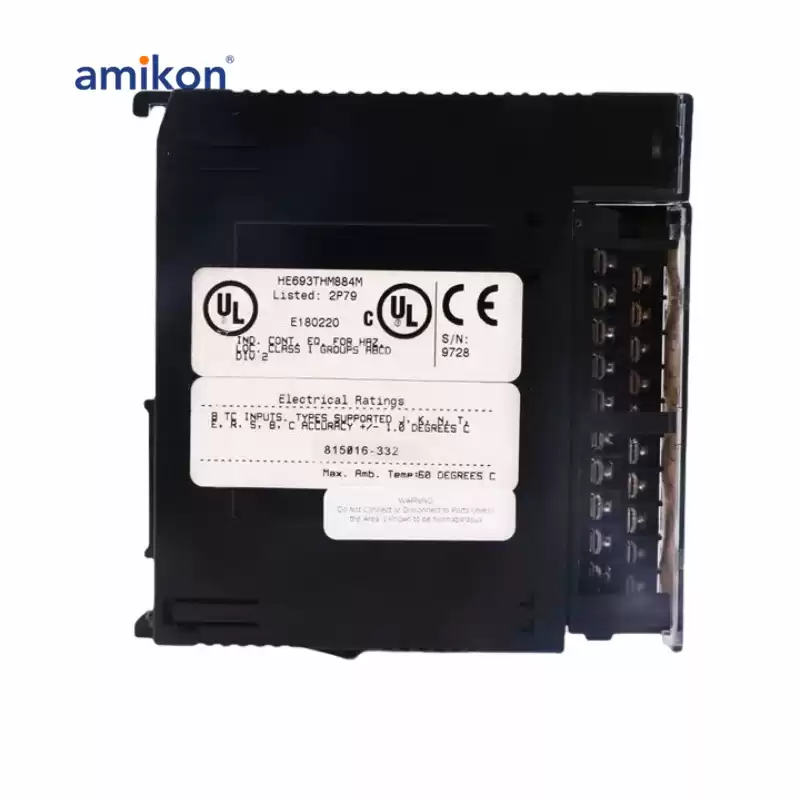

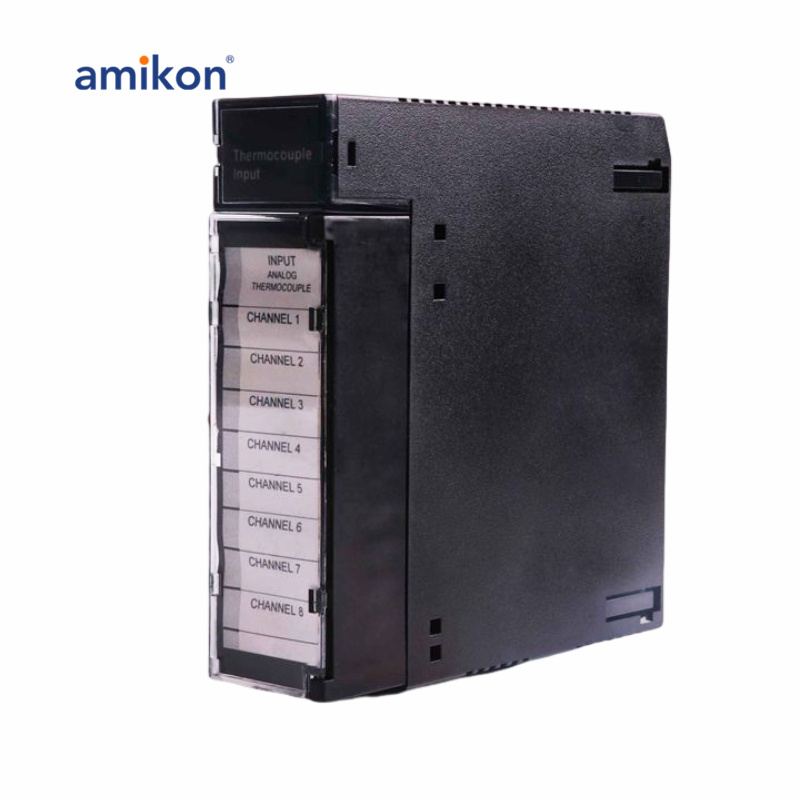

The HE693THM884 is a Thermocouple Input Module.The Horner APG High Resolution Thermocouple Input Module allows thermocouple temperature sensors to be directly connected to the PLC without external signal processing (transducers, transmitters, etc.).
|
|
|
HE693THM884 Data sheet
|
All analog and digital processing of the thermocouple signal is performed on the module. This highresolution module (0.1°C), can report values to the PLC I/O table in 0.5°C, 0.5°F, 0.1°C, or 0.1°F increments.
|
|
The module features eight thermocouple channels assigned to 8 %AI input registers. There are 16 %I Alarm Bits, one open circuit alarm and one setpoint alarm for each channel.
|
|
Alarm setpoints are set for each channel through 8 %AQ registers. Open circuit alarm bits for each channel correspond to the first eight successive %I bits, and the alarm setpoints for each channel correspond to the second eight successive %I bits.
|
|
