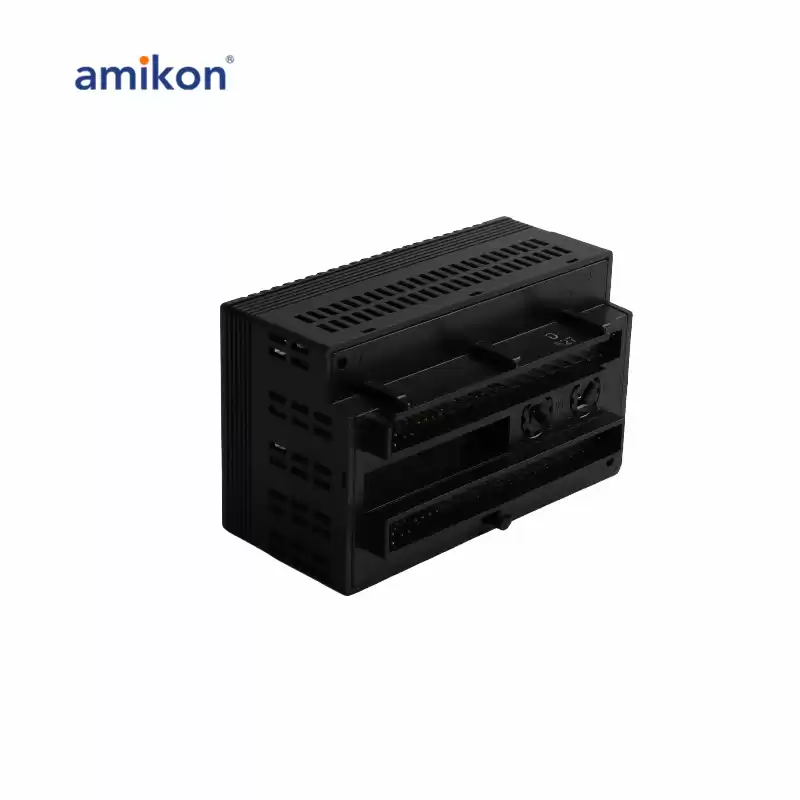

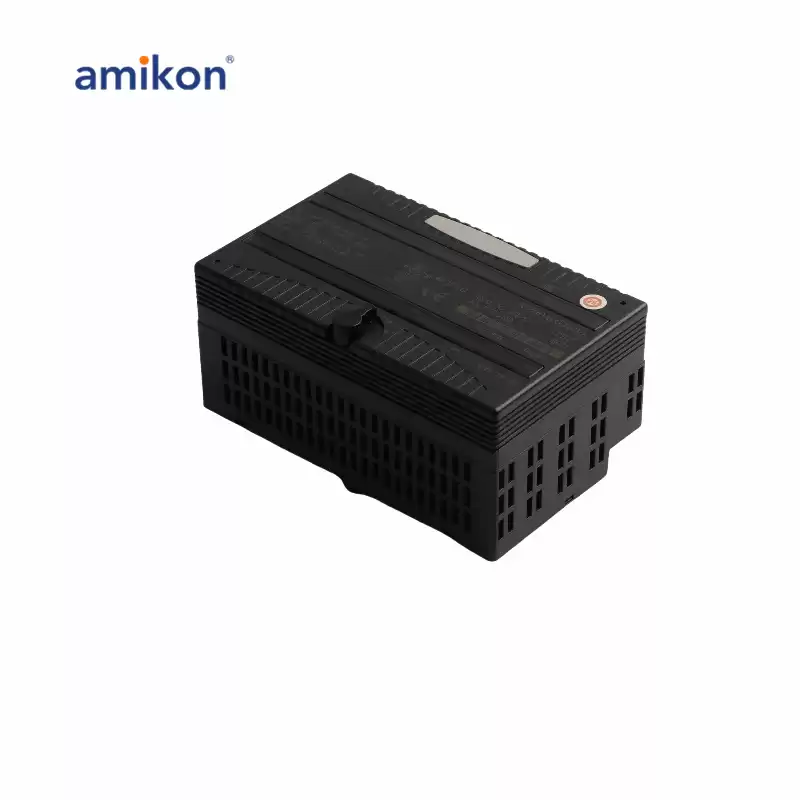

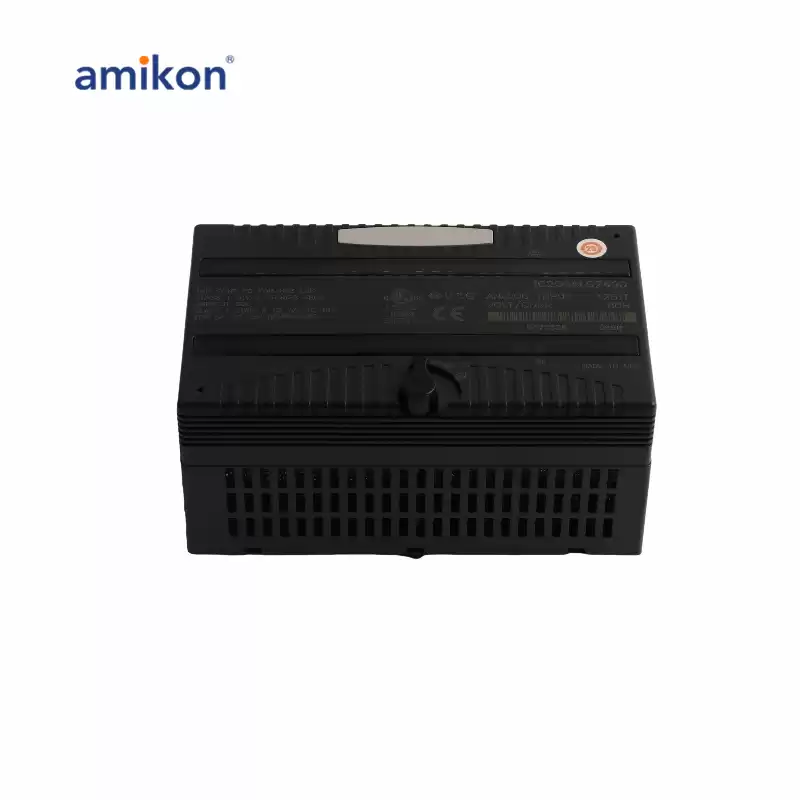

General Electric IC200ALG260 Analog Input Module

Contact me to get the best price:

Decription:

The IC200ALG260 Analog Input Module provides an interface for either 8 voltage inputs or 8 current inputs. It is a versatile module designed to handle various input configurations.

For configuration, two jumpers on the carrier terminals allow for selection between voltage or current mode, as well as unipolar or bipolar operation in voltage mode. When a jumper is connected, the module accepts current inputs in the 4mA to 20mA range. If the jumper is not installed, the module accepts voltage inputs ranging from -10VDC to +10VDC. Additionally, in voltage mode, another jumper on the carrier can be used to select the 0 to 10VDC input range.

The module features eight isolated inputs, making it suitable for receiving signals from up to eight separate analog devices. It is an intelligent module that ensures reliable data acquisition for various industrial applications.

FAQ:
1. What type of input signals can the IC200ALG260 module accept?
The IC200ALG260 module can accept either voltage or current input signals. It has 8 channels that can be individually configured for voltage or current mode.

2. How do I configure the IC200ALG260 module for voltage or current inputs?
The module has two jumpers on the carrier terminals. One jumper allows you to select between voltage or current input mode. The second jumper is used in voltage mode to select either the 0 to 10VDC range or the -10VDC to +10VDC range.

3. What current input range does the IC200ALG260 support?
When configured for current mode (using the jumper), the module accepts input signals within the 4mA to 20mA range.
