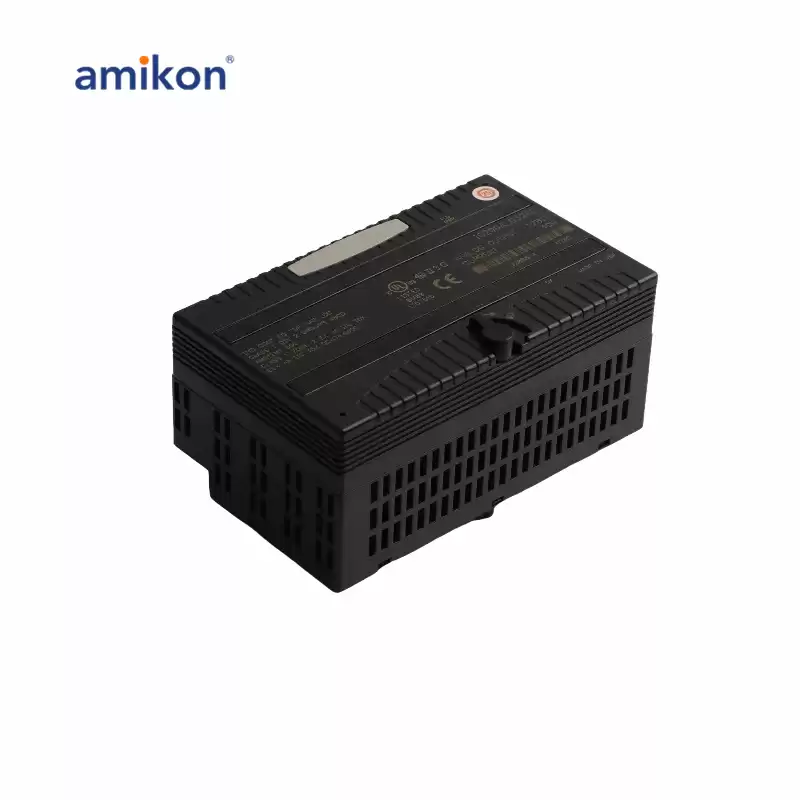

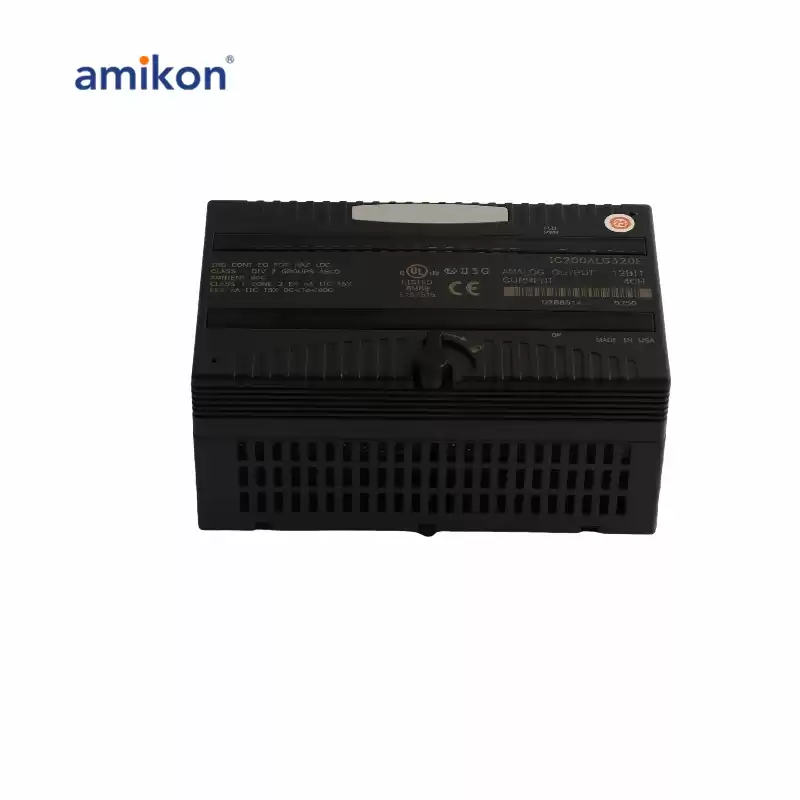

General Electric IC200ALG320 Analog Output Module

Contact me to get the best price:

Decription:

The IC200ALG320 is an analog output module that features two status LED indicators: a FLD PWR LED to show the presence of field power and an OK LED to indicate continuous supply of backplane power. This module is designed with enhanced functionality, including the detection of user-side power and configurable output defaults in case of CPU stoppage or module faults. These defaults include options like Hold Last State or output scaling down to 4 mA.

The IC200ALG320 is equipped with 4 analog current-sourcing outputs, each rated within the range of 4 to 20 milliamps, with the ability to handle a modest overrange of approximately 20.38 mA per channel to drive output loads effectively.

For voltage output applications, similar modules such as the IC200ALG322 and BXIOAO4210 provide 4 analog voltage outputs, with an output range of -10 to +10VDC.

FAQ:
1. Can the IC200ALG320 drive loads requiring higher currents than 20 mA?
The IC200ALG320 can provide an overrange output of approximately 20.38 mA per channel. However, for higher current demands, additional external components or modules may be required.

2. What is the range of output current for the IC200ALG320?
The IC200ALG320 outputs are in the 4 to 20 mA range, suitable for a wide range of industrial control applications.

3. How does the IC200ALG320 compare with other analog output modules?
While the IC200ALG320 specializes in current output (4-20 mA), similar modules like the IC200ALG322 and BXIOAO4210 offer analog voltage outputs with ranges of -10V to +10VDC. This makes the IC200ALG320 more suitable for applications requiring current output rather than voltage control
