Products Detail:
|

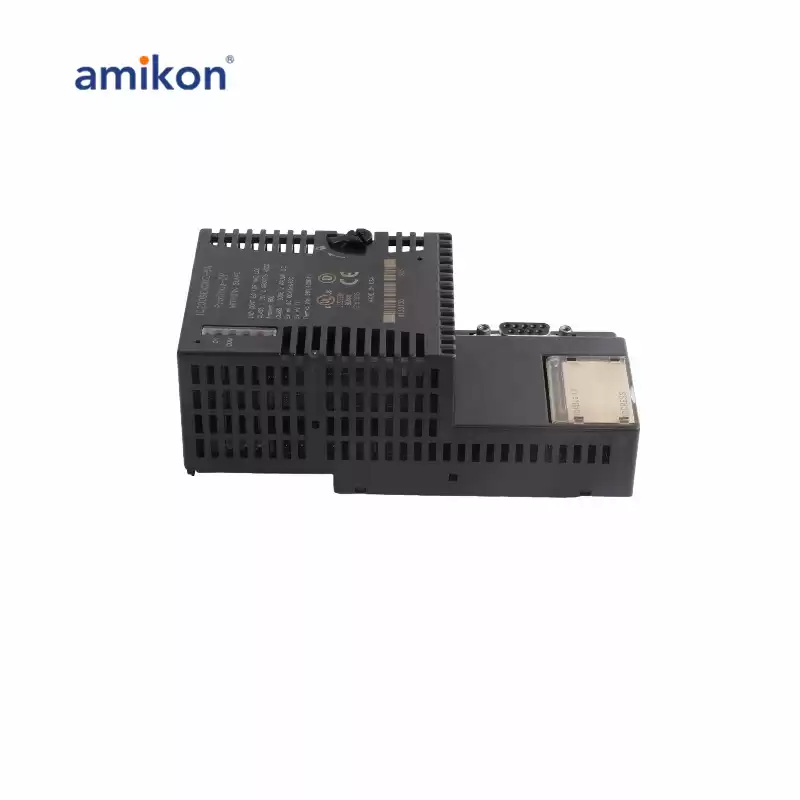

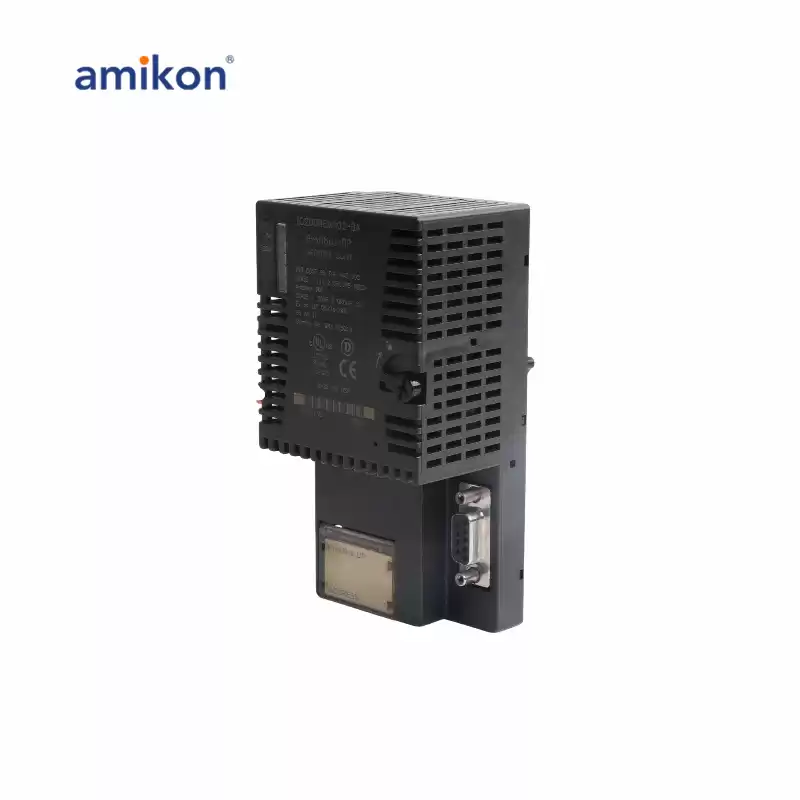

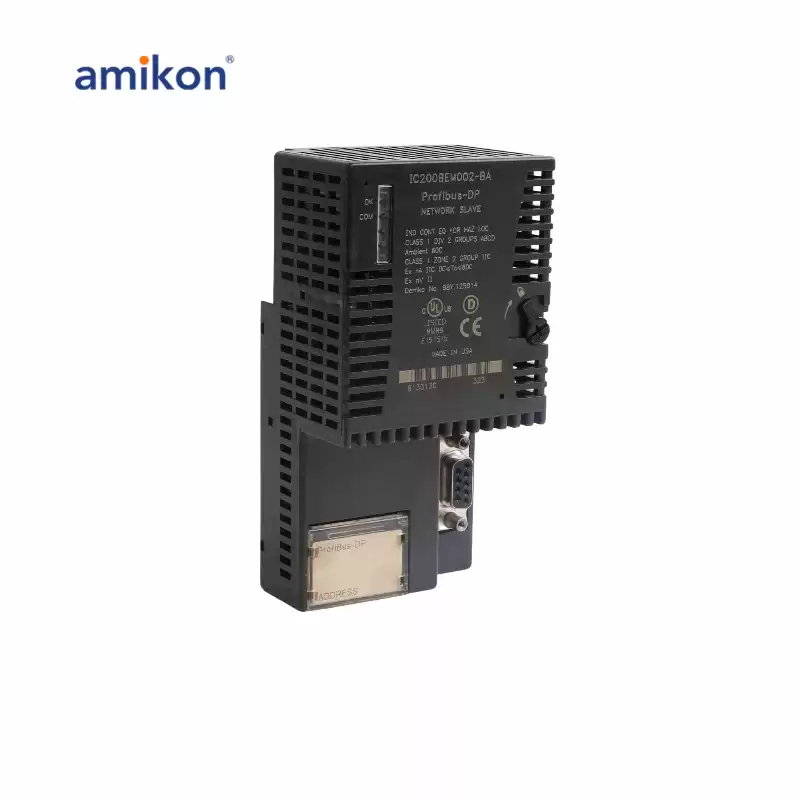

General Electric IC200BEM002 Network communication module
|
|
The IC200BEM002 module is a network communication module with network data rates between 9.6 K Baud and 12 M Baud. It is part of the Versamax series and manufactured by GE Fanuc. It supports up to 32 stations without using repeaters, and up to 125 stations when a repeater is used. The I/O data of the module uses 384 bytes of data. The module connector is a 9 Pin D sub connector type. It consumes a total of 460 milliamps of current from the 5 Volts Bus. At a given time, the network module can process 244 bytes of data from the network, and push up to 244 bytes of output data. The communication module uses the ver 1.00 firmware. It is equipped with flash memory that can be easily upgraded by connecting with a personal computer and using the serial port. The IC200BEM002 module can be mounted using a DIN Rail.
|
|
Attribute
|
Specification
|
|
Brand
|
GE Fanuc
|
|
Series
|
Versamax
|
|
Part Number
|
IC200BEM002
|
|
Description
|
Network Communication Module
|
|
Data Rate
|
9.6 Kbaud to 12 Mbaud
|
|
Supported Devices
|
32 without repeater, 125 with repeater
|
|
I/O Data Capacity
|
384 bytes
|
|
Connector Type
|
9-Pin D-sub
|
|
Wire Gauge
|
Greater than 0.64 millimeters
|
