Products Detail:
|

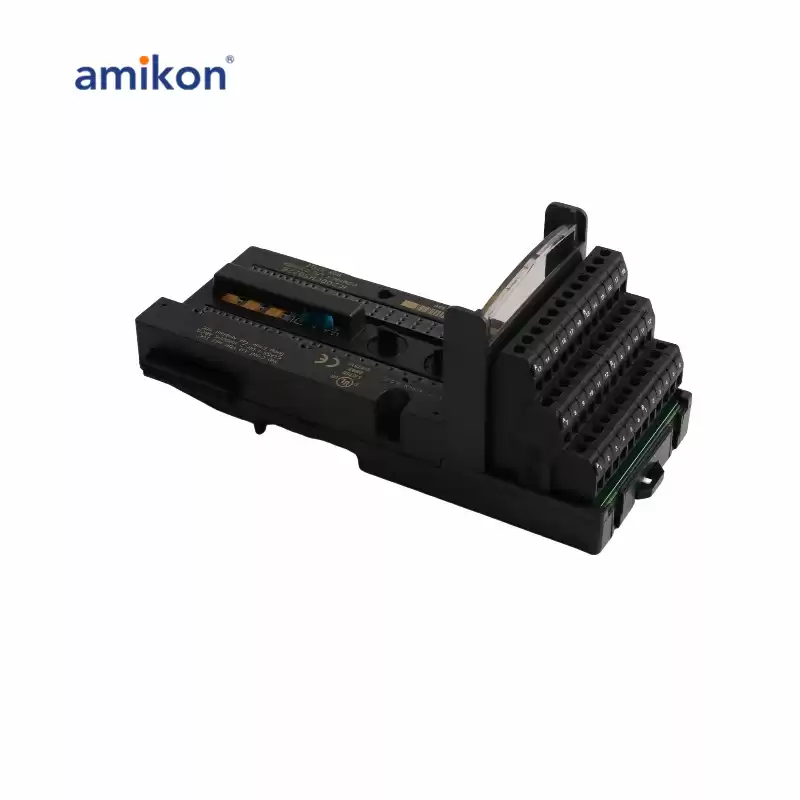

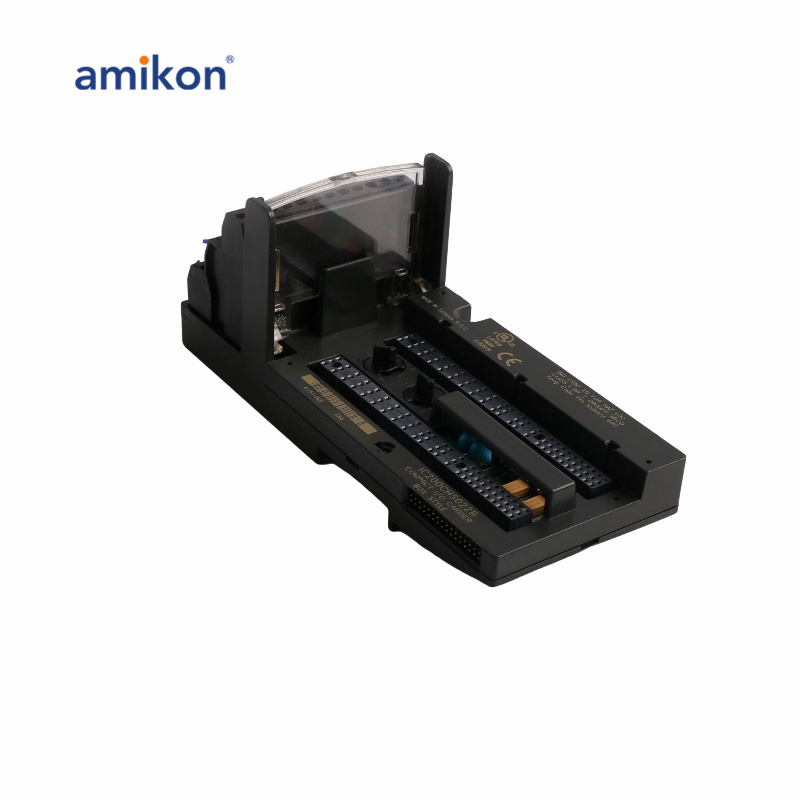

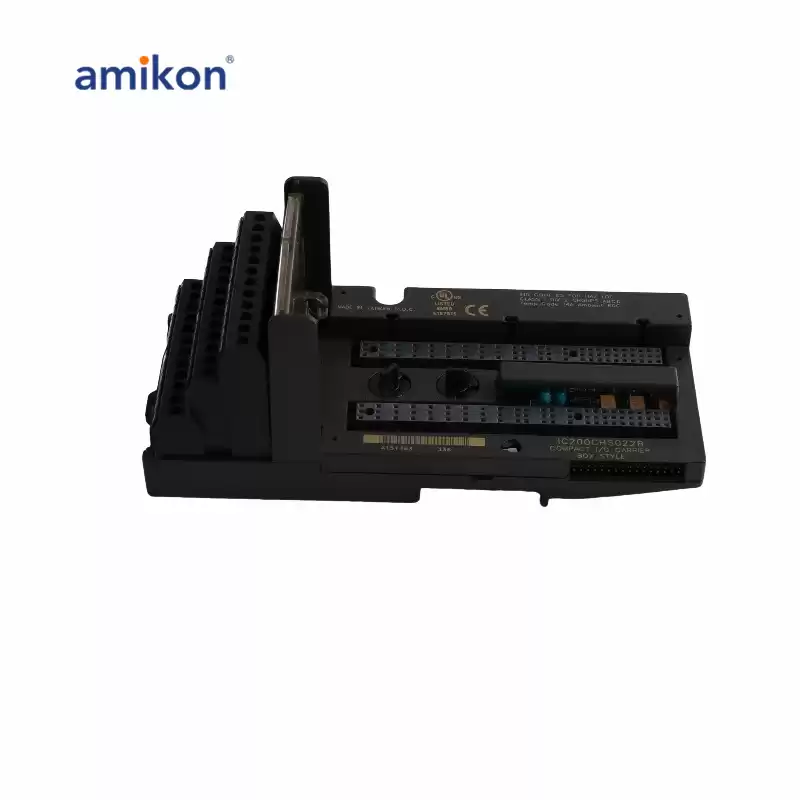

General Electric IC200CHS022 Compact I/O Carrier
|
|
The IC200CHS022 is a carrier module from the VersaMax product family that is manufactured by Emerson This module is combined with VersaMax I/O modules, providing wiring terminals for termination of input and output devices, depending on the module type installed. The IC200CHS022 may also be referred to as a terminal base. It features 36 screw type terminals that are designed to accommodate Solid or stranded copper ranging AWG # 14 to AWG #22 for single wire connection and AWG #18 for Two (2) wire connection in a single terminal for implementing terminal shorting. The carrier’s terminal are labeled A1 - A18 and B1-B18 for proper grouping. Each terminal is rated 0-264 VAC, 2 Amperes per terminal and 8 Amperes per ground and power segment. Each terminals are also designed to withstand up to 300 VAC transient voltage.
|
|
Attribute
|
Specification
|
|
Part Number
|
IC200CHS022
|
|
Series
|
VersaMax
|
|
Product Type
|
Compact Box-Style I/O Carrier
|
|
Product Description
|
I/O Carrier Module
|
|
Box-Style Terminals
|
36
|
|
Number of Terminal Strips
|
Three (3)
|
|
Dimensions
|
Height: 167.89 mm (6.61 in)
|
|
|
Length: 66.80 mm (2.63 in)
|
|
Number of Terminals
|
36
|
