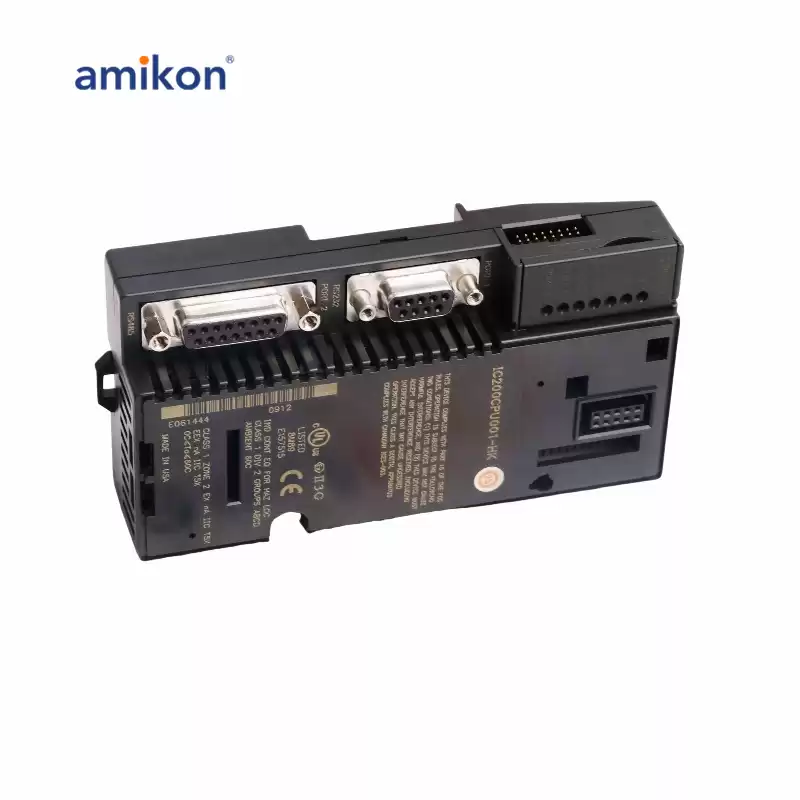

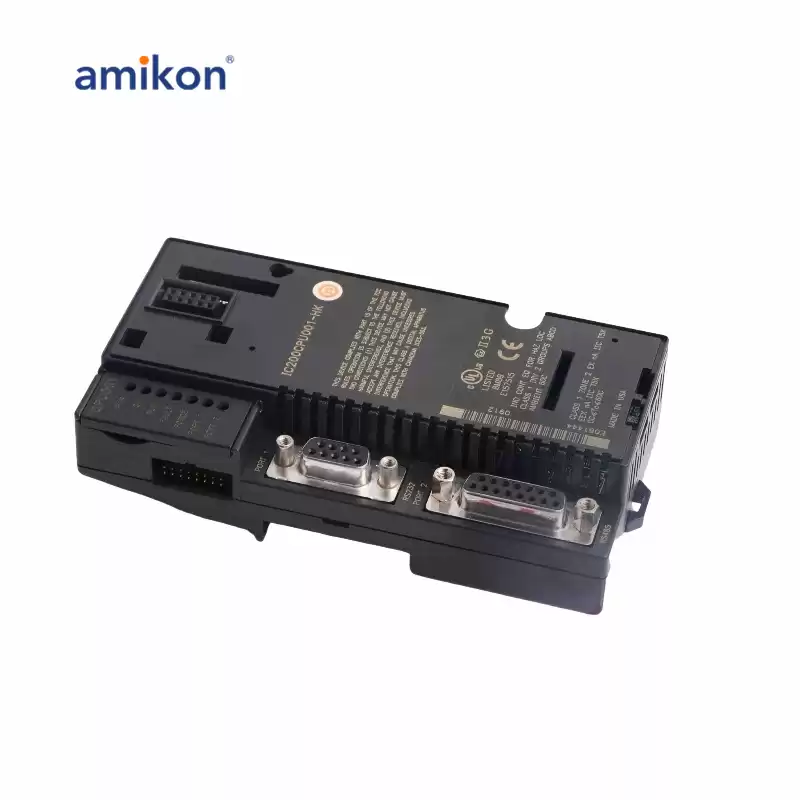

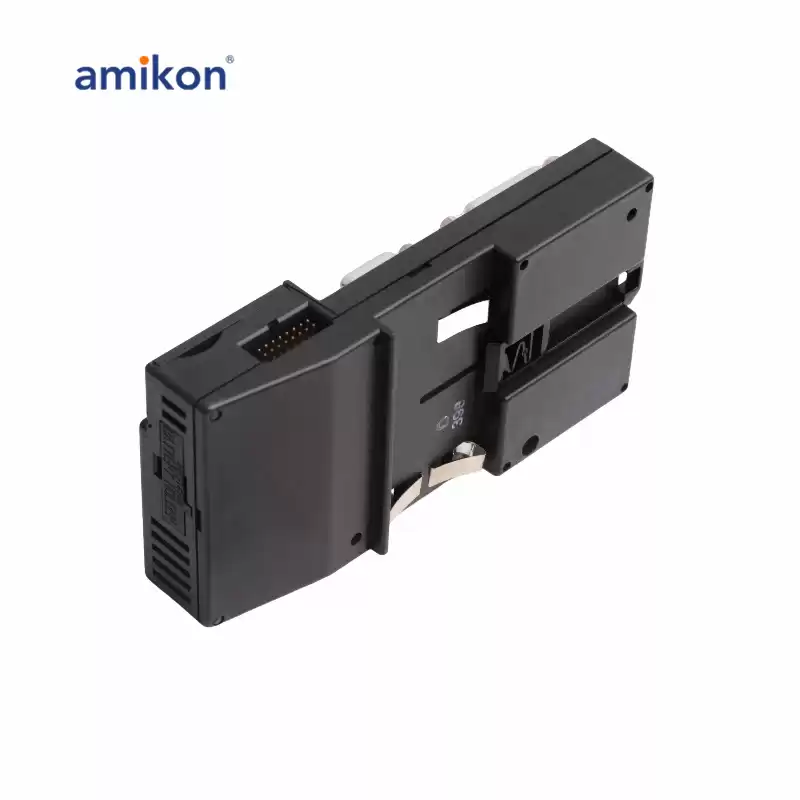

General Electric IC200CPU001 CPU Module
|
|
The IC200CPU001 is a compact controller from the VersaMax series from Emerson , formerly by GE Intelligent Platforms (GE IP). This is a DIN rail or panel mounted Central Processing Unit (CPU) module that is capable of processing up to 2048 Discrete inputs, 2048 Discrete outputs and a 34 Kbytes of memory that can be allocated for user program, Analog Input and Analog Output data as well as internal registers. This CPU is also equipped with 1024 points of discrete internal bits, 256 points of discrete temporary bits, and 1280 points of Global discrete bits. The integrated communication ports available to the IC200CPU001 are One (1) RS232 and One (1) RS485 communication interfaces. These interfaces support a variety of industrial communication protocols such as SNP Slave, RTU Slave and Serial I/O which can be used in implementing distributed I/O architecture, data exchange between Human Machine Interface (HMI), Supervisory Control and Data Acquisitions (SCADA) systems and other applicable and compatible partner devices. These CPU module is configured using CIMPLICITY Machine Edition Logic Developer, VersaPro or Control programmer.
|
|
Attribute
|
Specification
|
|
Brand
|
GE Fanuc
|
|
Series
|
VersaMax
|
|
Part Number
|
IC200CPU001
|
|
Description
|
Configurable CPU
|
|
Product Type
|
CPU Module
|
|
Product Description
|
Central Processing Unit (CPU)
|
|
Serial Ports
|
2
|
|
User Memory
|
34 KB
|
|
Internal Memory
|
384 KB Configurable Memory
|
|
Floating Point Math
|
Supported
|
|
Supported Programming Languages
|
Ladder Diagram, Instruction List
|
|
Discrete Internal Bits
|
1024 Points
|
|
Discrete Inputs
|
2048 Points
|
|
Discrete Outputs
|
2048 Points
|
|
Discrete Temporary Bits
|
256 Points
|
|
Boolean Execution Speed
|
1.8 ms / K
|
|
Type of Memory Storage
|
RAM and Flash
|
