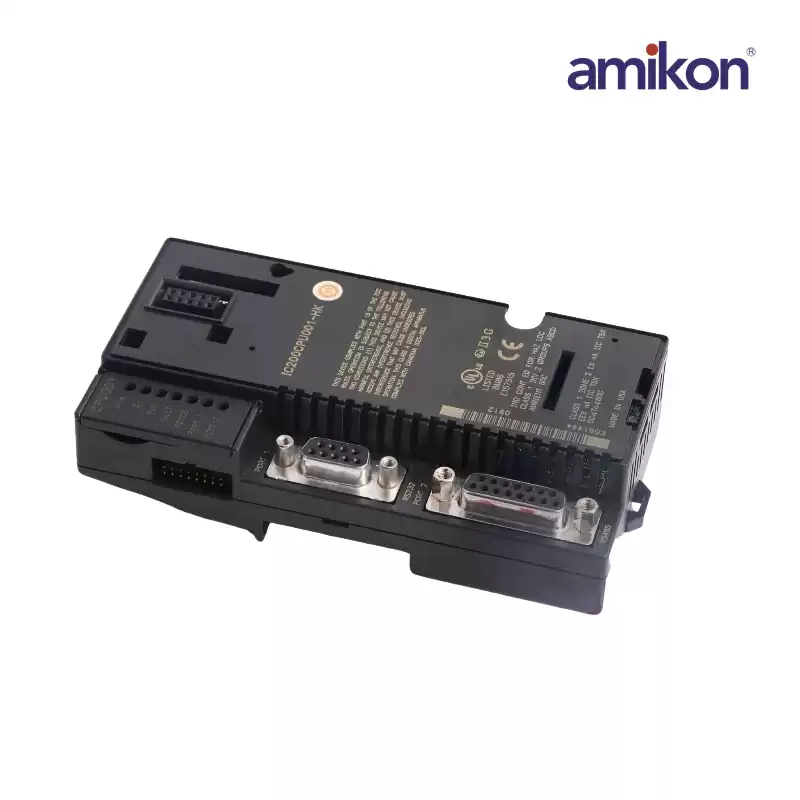

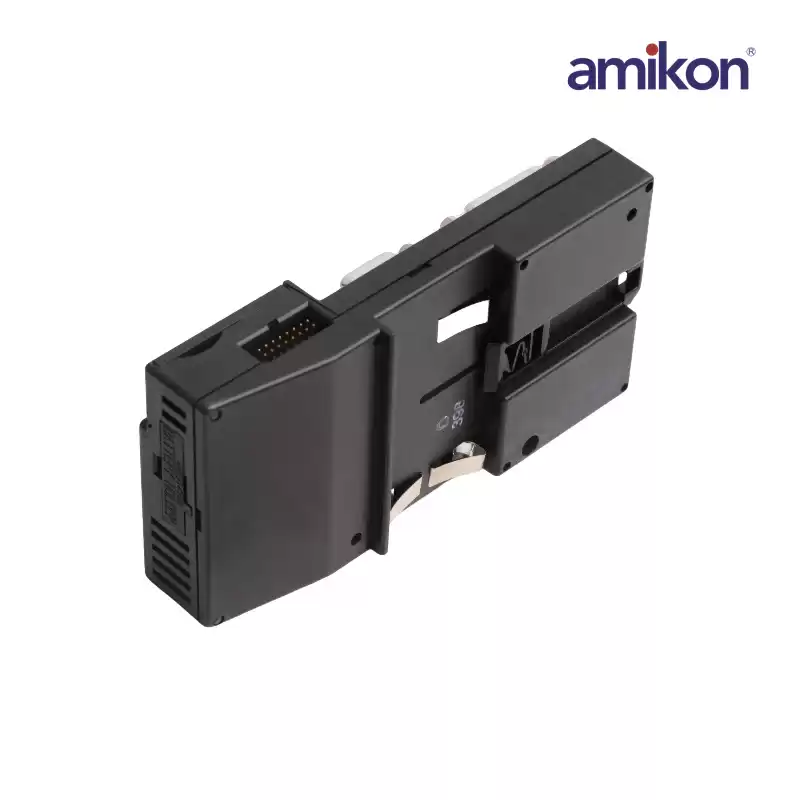

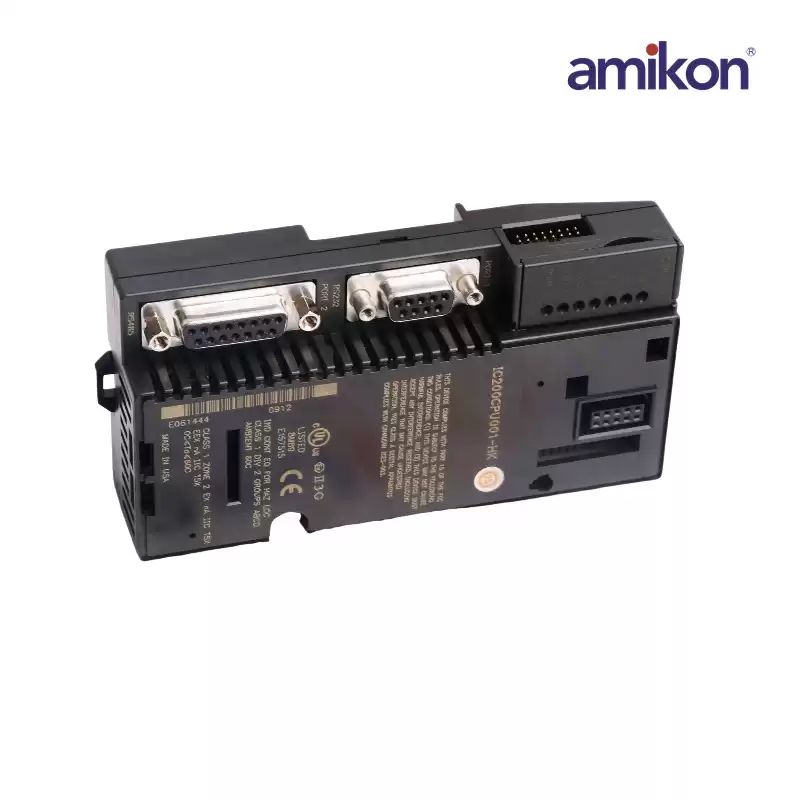

General Electric IC200CPU001 CPU Modules
|
|
Dimensions:
|
13.2x6.7x3.2cm
|
Weight:
|
0.12kg
|
|
Master Gateway：
|
-20 to 35°C
|
Voltage：
|
12VDC
|
|
The GE Fanuc Versamax IC200CPU001 CPU can be easily mounted by using a DIN rail with the power supply. The IC200CPU001 CPU is designed with 32 modbus registers, an enhanced PID function block, and a higher communication output than other CPUs.
|
|
IC200CPU001
|
The IC200CPU001 CPU is a user-configurable CPU manufactured by GE Fanuc. It comes with 2 serial ports and 34 KB of configurable memory. The CPU uses non-volatile memory for storing programs. It supports programming in ladder diagrams and instruction lists. It comes with 1024 points for discrete internal bits and 256 points for temporary bits. The global discrete bits of the CPU include 1280 points. The boolean execution speed of the CPU is 1.8 ms/K. The IC200CPU001 CPU supports both floating point and override. The CPU is equipped with built in RS-232 and RS-485 ports. For internal communication, the CPU uses the SNP slave and the serial I/O protocol. The memory of the CPU is battery-backed and it features a real time clock. The clock timestamps critical time events during the operation. The real-time clock accuracy if 100 ppm at a full temperature range.
|
