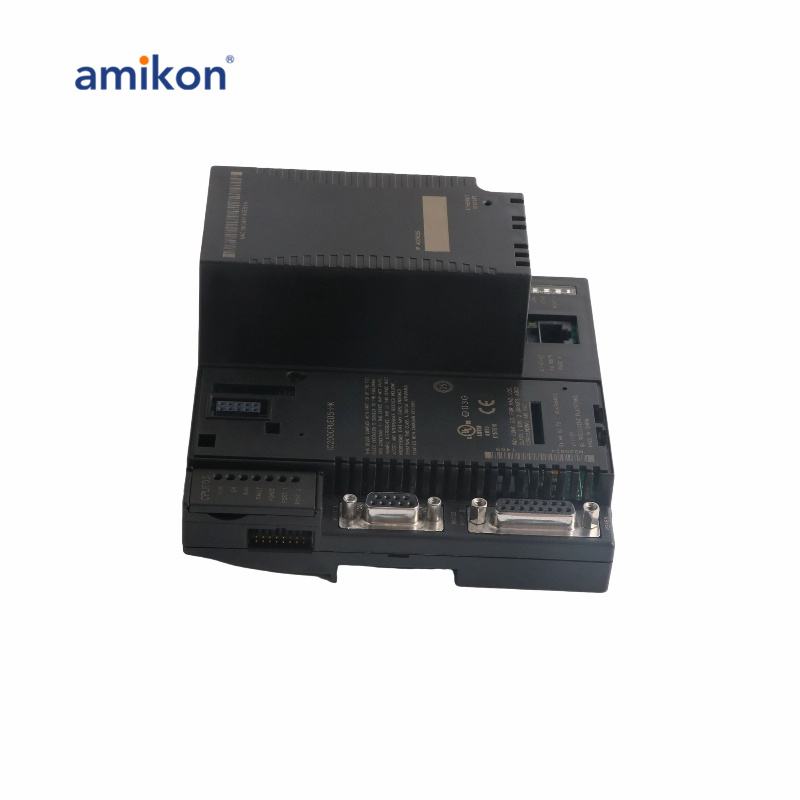

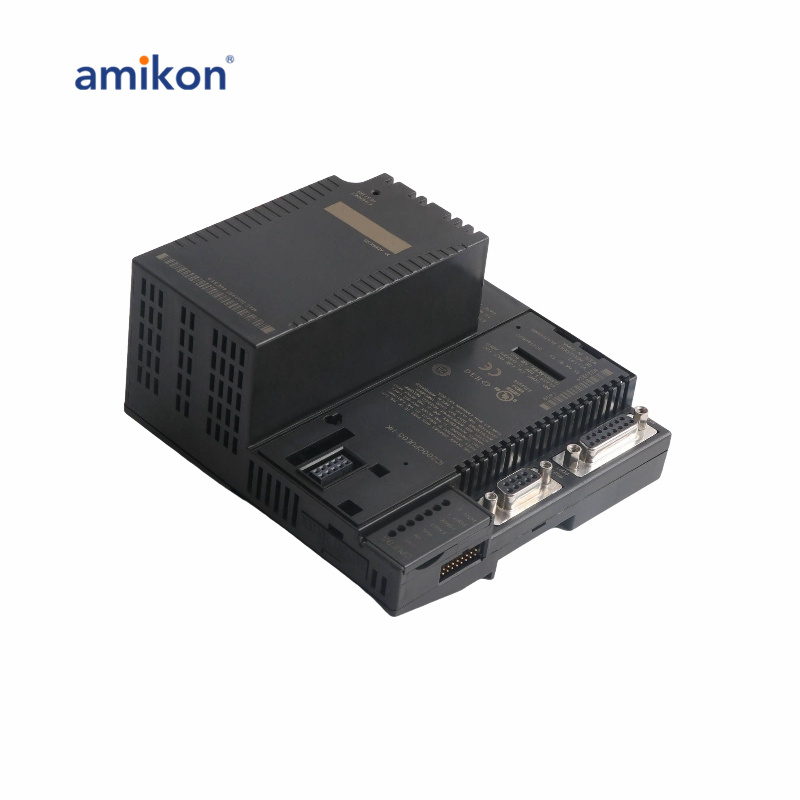

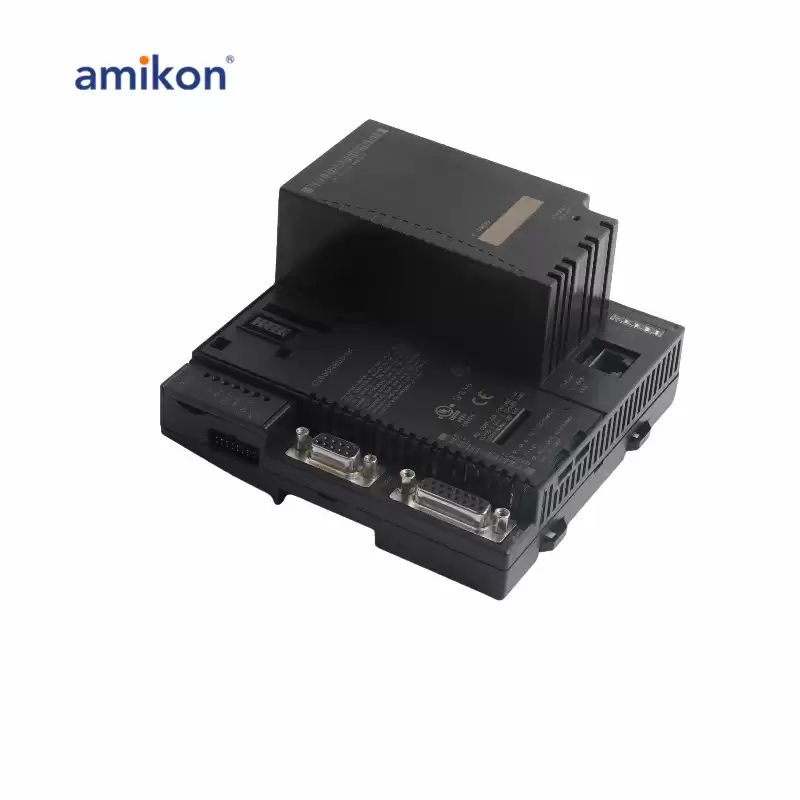

General Electric IC200CPUE05 Processor Module
|
|
The GE Fanuc Versamax IC200CPUE05 CPU module comes with a super capacitor that is able to power the memory for up to an hour. A run/stop switch is present in the module for controlling the operations. The CPU is able to process floating point data functions. The CPU module comes with 2 sets of LEDs on the top corner and the lower right corner. It comes with the PWR, OK, RUN, FAULT, FORCE, PORT 1, and PORT 2 LEDs that illuminates when power is present in the module and to send different update messages to the users. The IC200CPUE05 CPU module can be programmed by using the ladder diagram and instruction list programming languages. The CPU features EGD time synchronization and supports up to 8 SRTP server connections.
|
|
Attribute
|
Specification
|
|
Brand
|
GE Fanuc
|
|
Series
|
VersaMax
|
|
Part Number
|
IC200CPUE05
|
|
Description
|
CPU Module
|
|
Supported Modules
|
64
|
|
I/O Points
|
2048
|
|
Serial Ports
|
RS-232, RS-485
|
|
Boolean Execution Speed
|
0.8 milliseconds
|
|
Memory
|
64 KB
|
|
SRTP Server Connections
|
8
|
|
Ethernet Port
|
One (1) RJ45 port
|
|
Ethernet Transmission Speed
|
10 Mbps, full / half duplex
|
|
EGD Configuration
|
32 configurations
|
