GE IC200MDL650
|
|
Dimensions:11x6x6.7cm
|
Series：Versamax Series
|
Input Voltage Range : 0 to 30 Volts DC
|
|
Weight: 0.14KG
|
Voltage：0 to 30 Volts DC
|
Backplane Current Consumption : 50 milliamps, 5 Volts
|
|

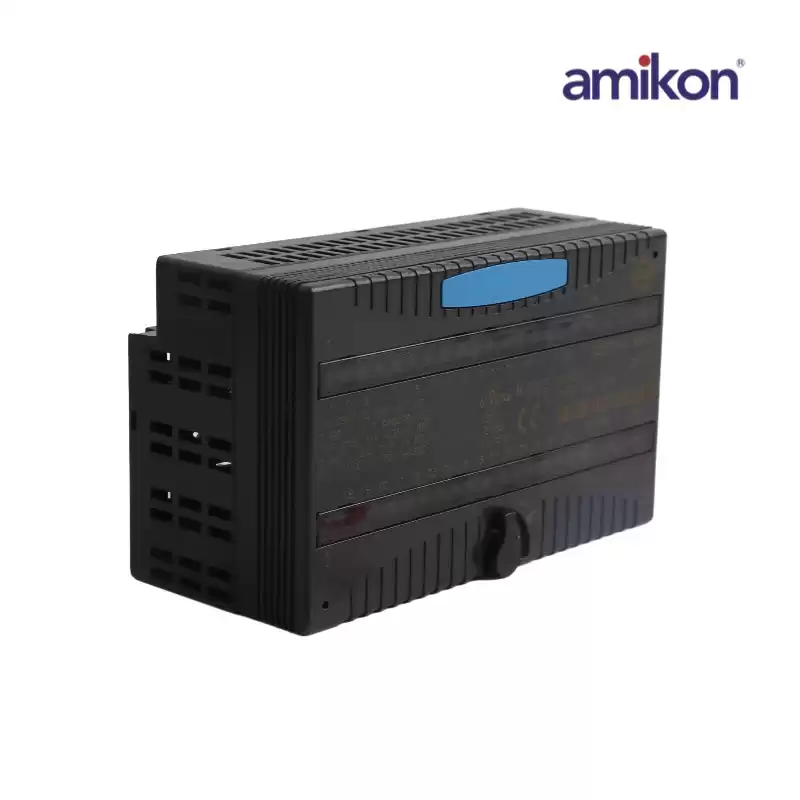

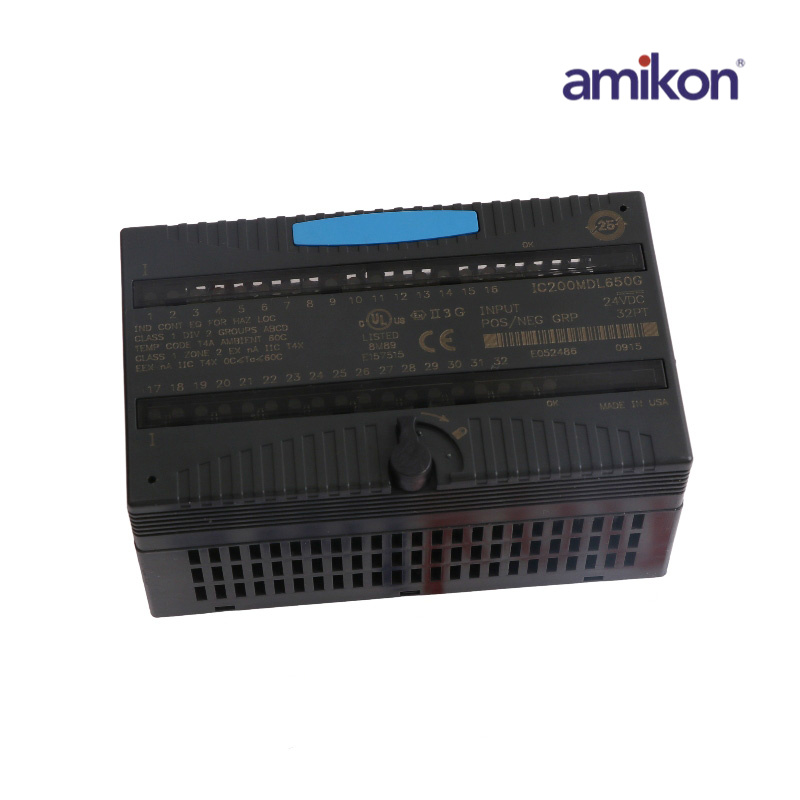

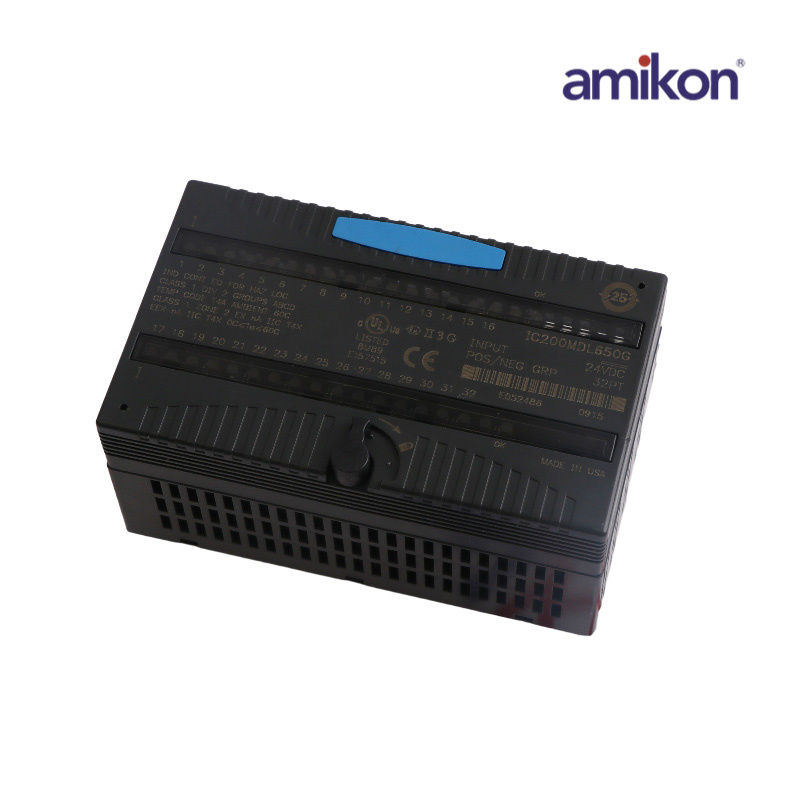

IC200MDL650
|
The IC200MDL650 is an input module made by GE Fanuc as part of the VersaMax series of PLC components. This module has a total of 32 input points, all of which are discrete. These input points are divided into four groupings of eight. Each input point on this device can support either positive logic or negative logic. Positive logic means that the current is taken from the attached input devices and returned on the common line. Negative logic means that the current is received from the common line and returned to the connected input devices. To support negative logic, this module must be upgraded to the IC200MDL650C version or better.
The main source of power for this device is the rack-mounted connection backplane to which this module is attached. No external power supply is necessary with this product. The input point voltage for this device ranges from 0 to 30 volts direct current with 24 volts being nominal. The maximum amount of current this device consumes from the 5V backplane is 50 milliamps. Input point impedance is rated at a maximum of 10k Ohms.
The IC200MDL650 does support thermal derating; however, thermal derating is not required when this device is operating at 24 volts direct current. When operating at 30 volts direct current, the number of active input points varies depending on certain factors.
The default input response time is 0.5 milliseconds, but this response time can be changed via configurable filters. This module is 2.63 inches tall (66.8mm), 1.956 inches deep (50mm), and 4.3 inches wide (110mm).
|
|
