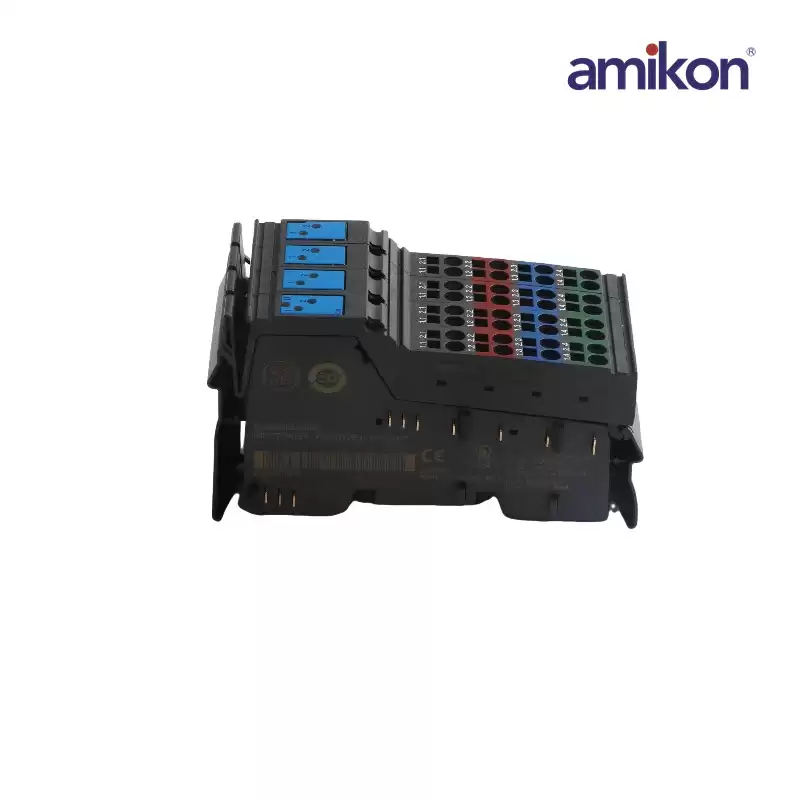

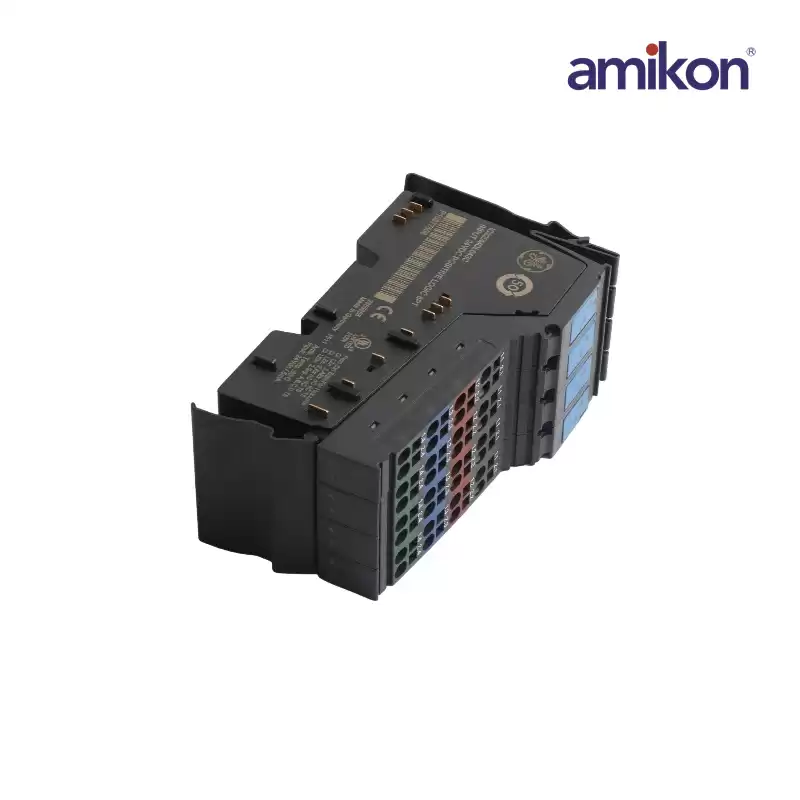

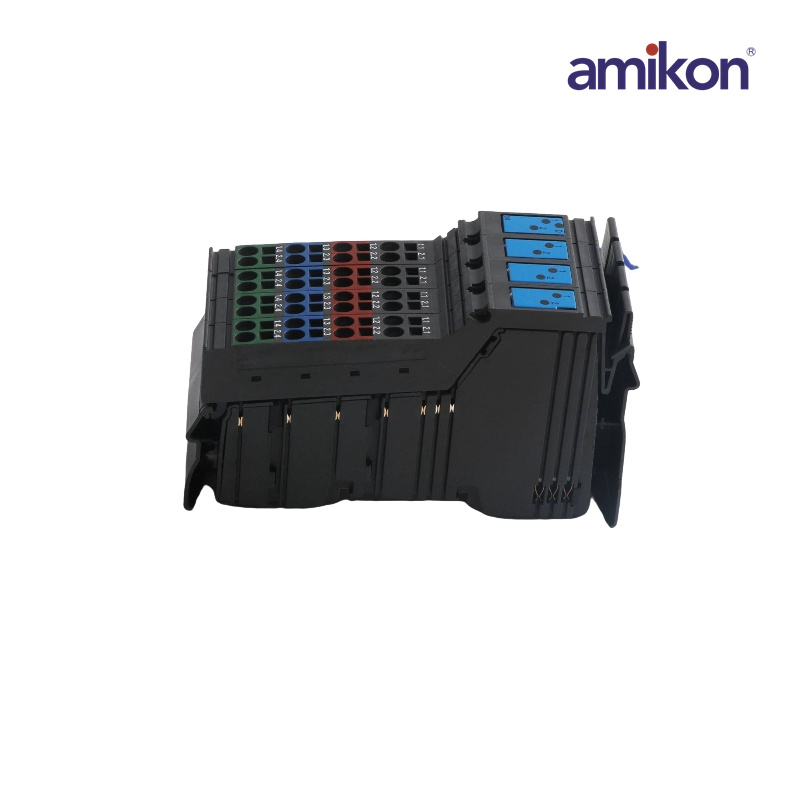

General Electric IC220MDL643 Digital Input Terminal Module

General Electric IC220MDL643 Digital Input Terminal Module

Dimensions:

4.8x7x12cm

Weight:

0.18kg

Master Gateway：

-25to 85°C

Voltage：

7.5V

Connections for eight digital sensors

Connection of 2-, 3-, and 4-wire sensors

Maximum permissible load current per sensor:

250mA.

Maximum permissible load current from the

module: 2.0A.

 IC220MDL643

The GE Fanuc Module IC220MDL643 is used to accept 24VDC digital input signals.Module IC220MDL643 requires four (4) I/O Terminal Strips, IC220TBK082, ordered separately. See the ordering information below. Connections for eight digital sensors. Connection of 2-, 3-, and 4-wire sensors. Maximum permissible load current per sensor: 250mA. Maximum permissible load current from the module: 2.0A. Diagnostic and status indicators.
