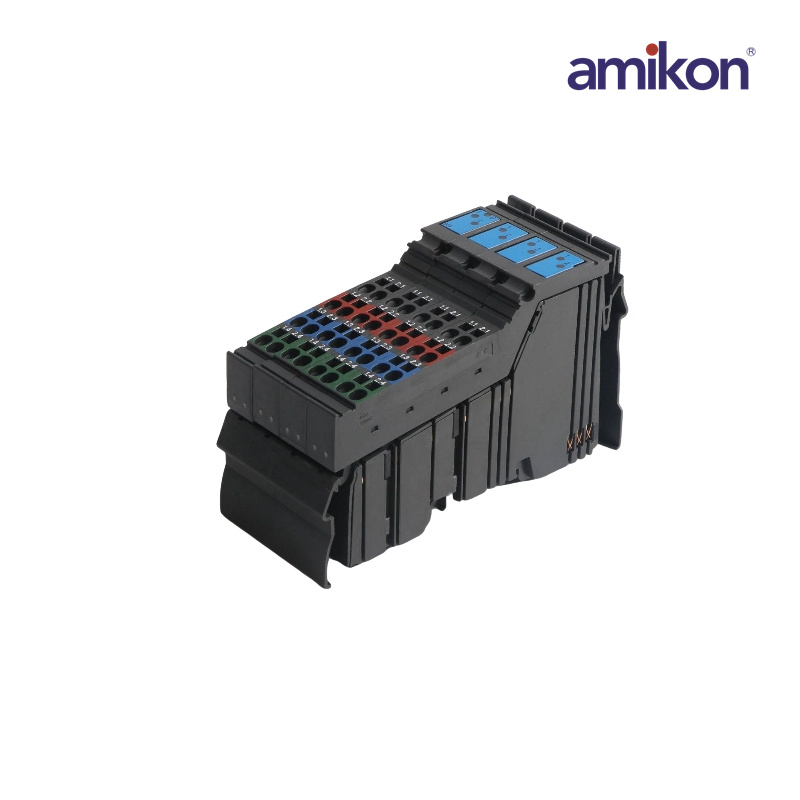

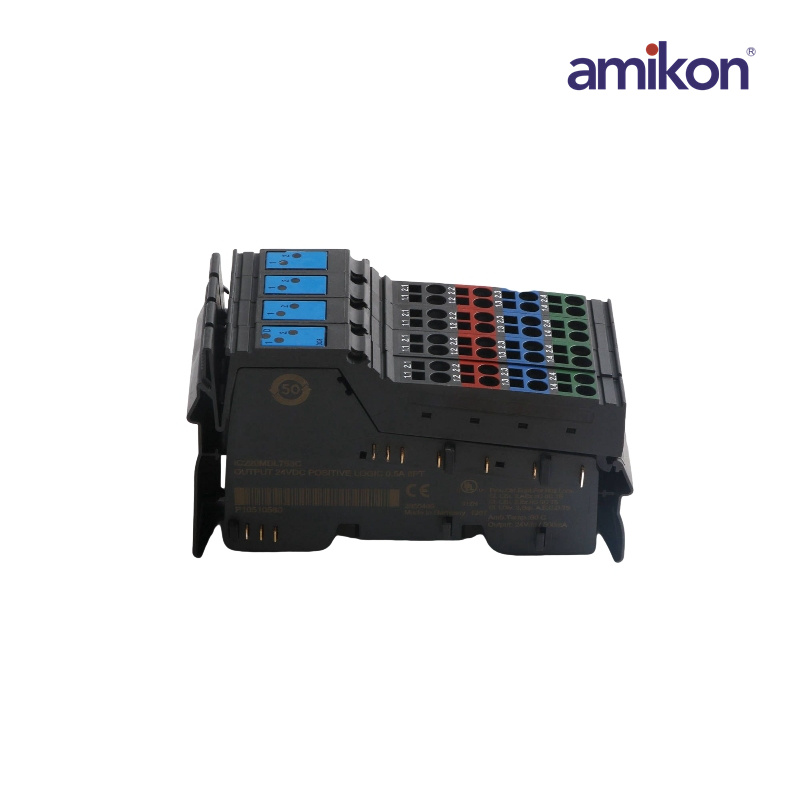

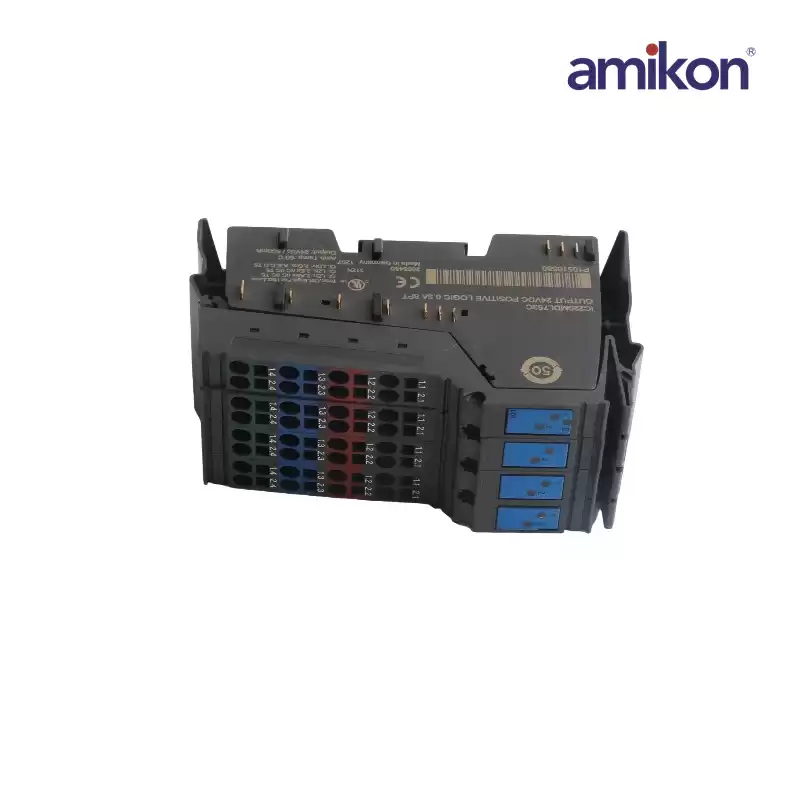

General Electric IC220MDL753 POSITIVE LOGIC OUTPUT MODULE

General Electric IC220MDL753  POSITIVE LOGIC OUTPUT MODULE

Dimensions:

4.8x7x12cm

Weight:

0.18kg

Master Gateway：

-25to 85°C

Voltage：

7.5V

Features

Connections for eight 24V discrete actuators

Connection of 2-, 3-, and 4-wire actuators

Nominal current per output: 0.5A

Total current of the module: 4A

 IC220MDL75

The GE Fanuc Module IC220MDL753 is Discrete output modules send control signals to devices such as contactors, indicator lamps, and interposing relays that can also have two states.

iscrete Input – converts AC/DC input from user devices to logic levels required by the PLC. Modules are available with options of 8, 16, or 32 points

Discrete Output – converts logic levels from the PLC to AC/DC power level required by system devices. Available in 2 models: the Semiconductor Switched Output module has options of 5, 8, 12, 16, or 32 output points; the Relay Output module has options of either 8 or 16 normally open relay points

Discrete Input/Output – these combination modules feature AC/DC inputs and relay outputs in one module. They feature 8 inputs and 8 outputs in one module

Analog Input, Analog Output, and Analog Combination Modules are also available
