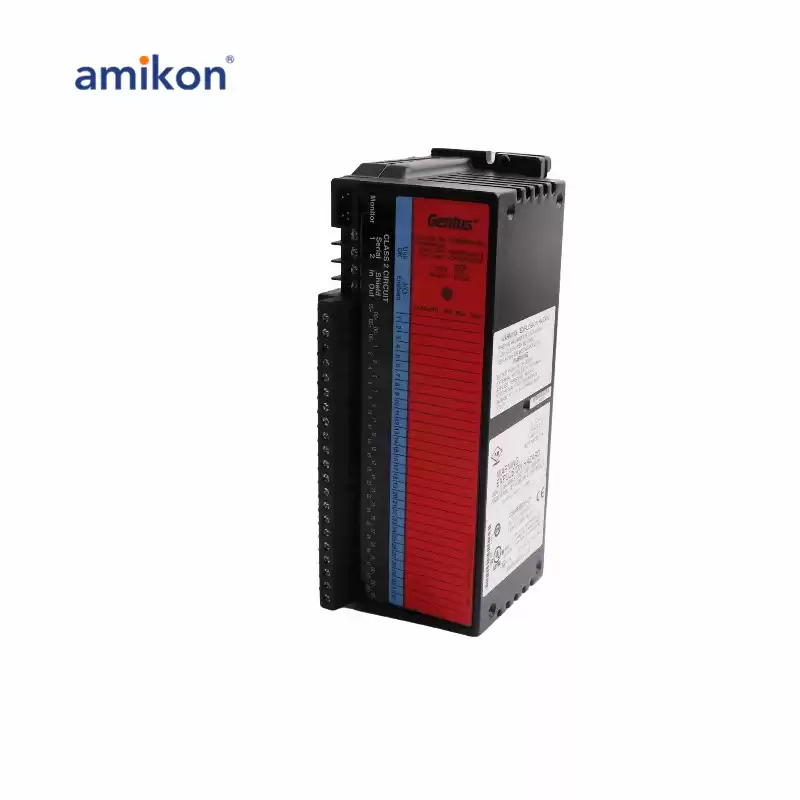

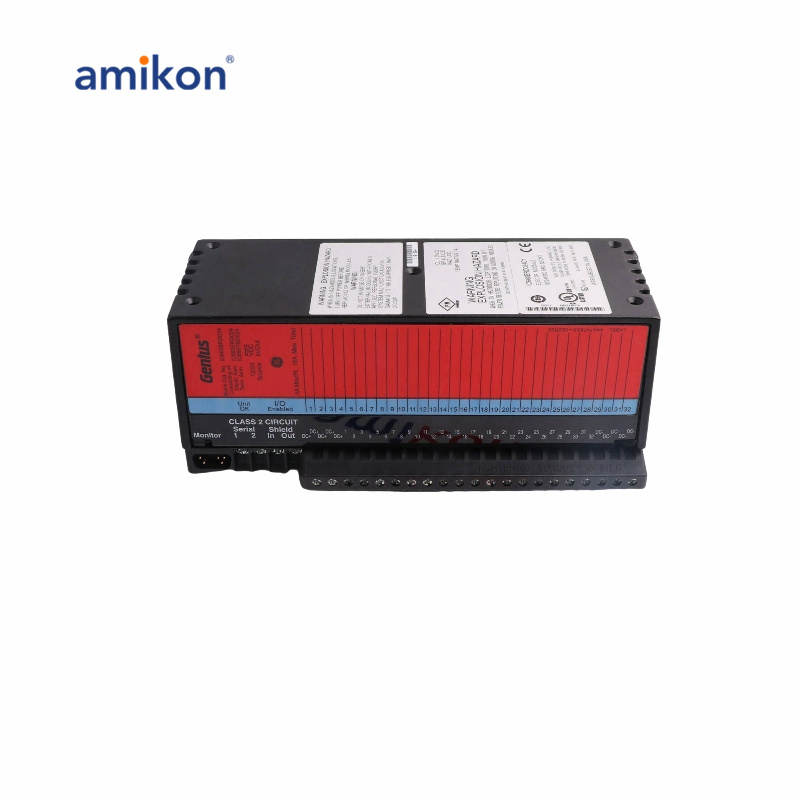

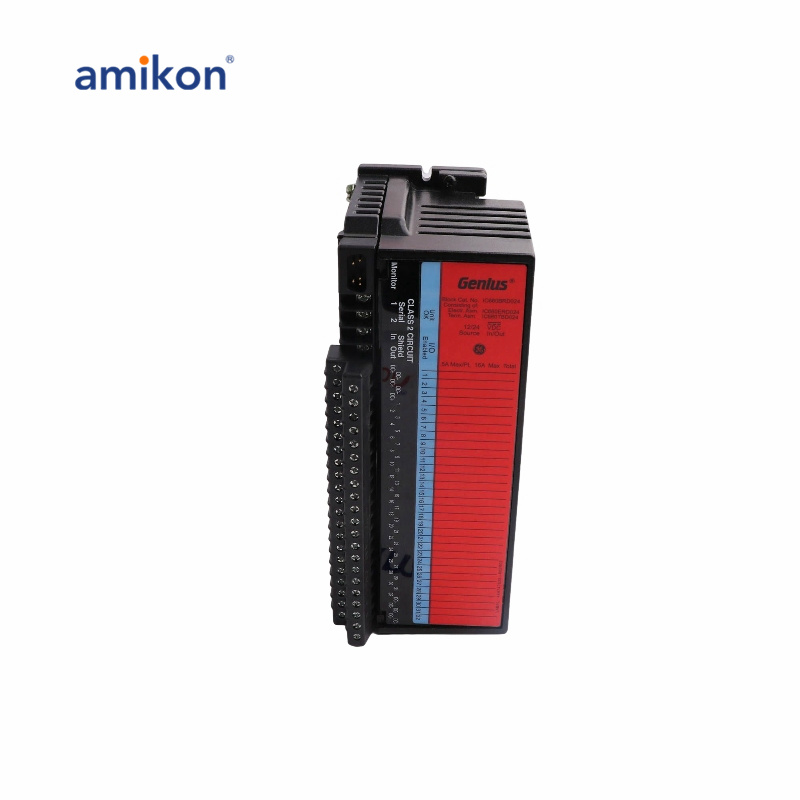

The IC660BRD024C1 is a Genius 12/24VDC Source Block for Redundancy T Output Configurations. The GE Fanuc Genius I/O block that is known as the IC660BRD024 I/O block is built for use in industrial systems. The unit provides current for field output components and it operates on DC power sources. The IC660BRD024 I/O block is a source I/O block that has 32 circuits and it is used with PLC products from GE Series 90-70.
|
|
|
IC660BRD024C1 Data sheet
|
The typical operating temperature range for this I/O block and other products from the same series is from 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit) while the storage temperature range is from -40 to 100 degrees Celsius (-40 to 212 degrees Fahrenheit).
|
|
This CE marked unit has a rated voltage of 12/24 Volts DC and it weighs around 1.8 kilograms (4 pounds). The nominal operating voltage range is 18 to 30 Volts DC.
|
|
The input impedance of the unit is 1.8 kiloohms and the typical input processing time is 1.7 milliseconds.In the T-Output group configuration, two IC660BRD024 Source Output Blocks are connected in parallel to one side of the load, while the other end of the load is grounded.
|
|
