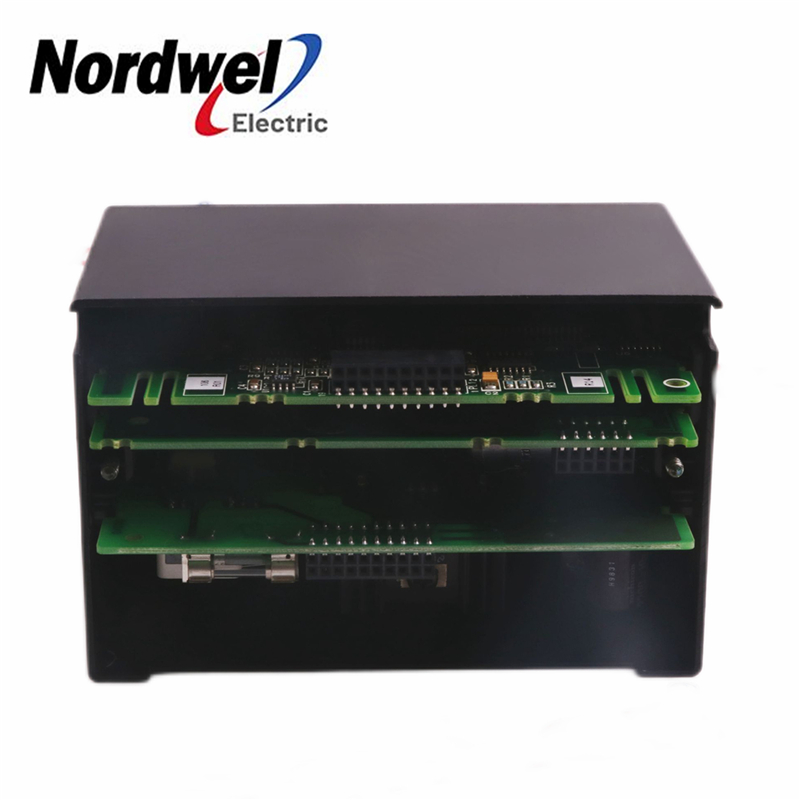

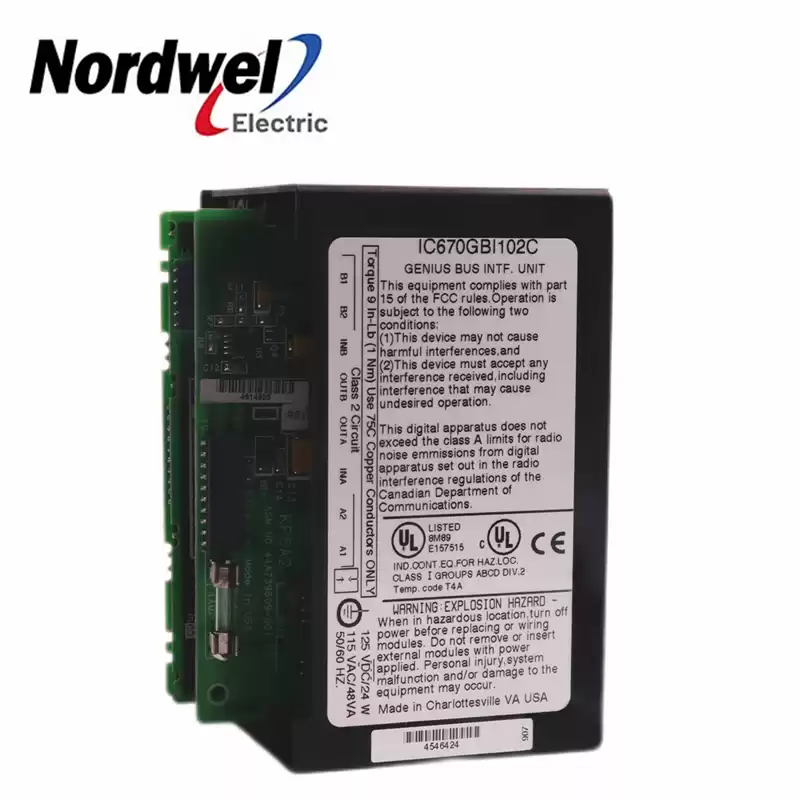

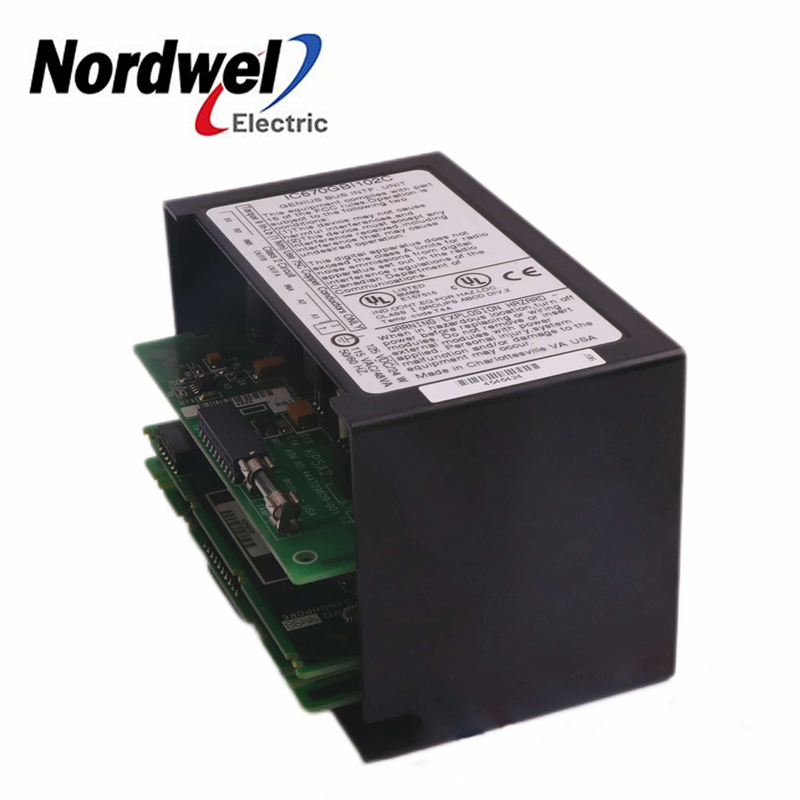

Full description:120Vac/125Vdc Powered Genius Bus Interface Unit GE Fanuc Field Control IC670GB IC670GBI
GE Fanuc Automation manufactures the IC670GBI102 Bus Interface Unit or BIU as part of the GE Field Control
Series. This unit is intended for use in interfacing Field Control input and output modules to the host computer or
host PLC through a Genius bus. It exchanges input data of up to 128 bytes and output data of up to 128 bytes with
the host in each bus can. The Genius IC670GBI102 BIU can also handle datagram communications. Some of the
BIU intelligent processing functionalities allow for the configuration of the fault reporting, analog range, and analog
scaling selection settings for modules in the station, and there are selectable I/O default features. Additionally, this
unit performs self-diagnostic checks and runs diagnostics on the I/O modules. It relays diagnostic data to the hand-
held monitor and the host whenever it is configured for fault reporting.
The GE Fanuc Genius IC670GBI102 Bus Interface Unit is used in a bus that is controlled by Bus controllers or
redundant CPUs. The unit can also be used in the dual bus system, and it is mounted on a BIU terminal block. If
necessary, this Genius BUI can be detached and replaced without configuring the I/O station and without the
removal of the wiring.
