Mfr. Part Number:
|
IC693ACC302
|
|
Manufacturer:
|
General Electric
|
|
Description：
|
IC693ACC302 Module Battery
|
|
Full Description:
|

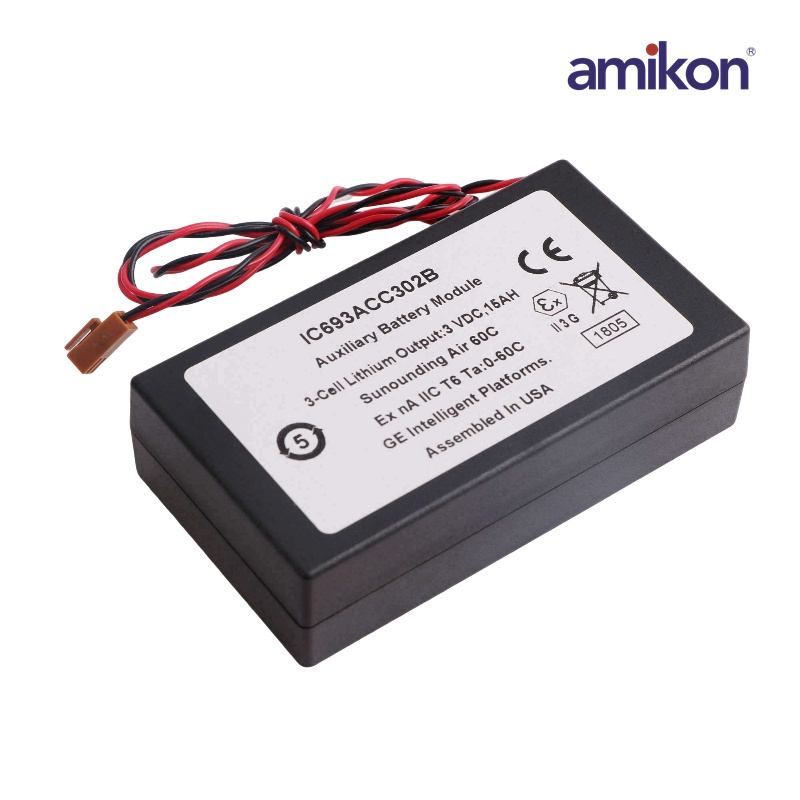

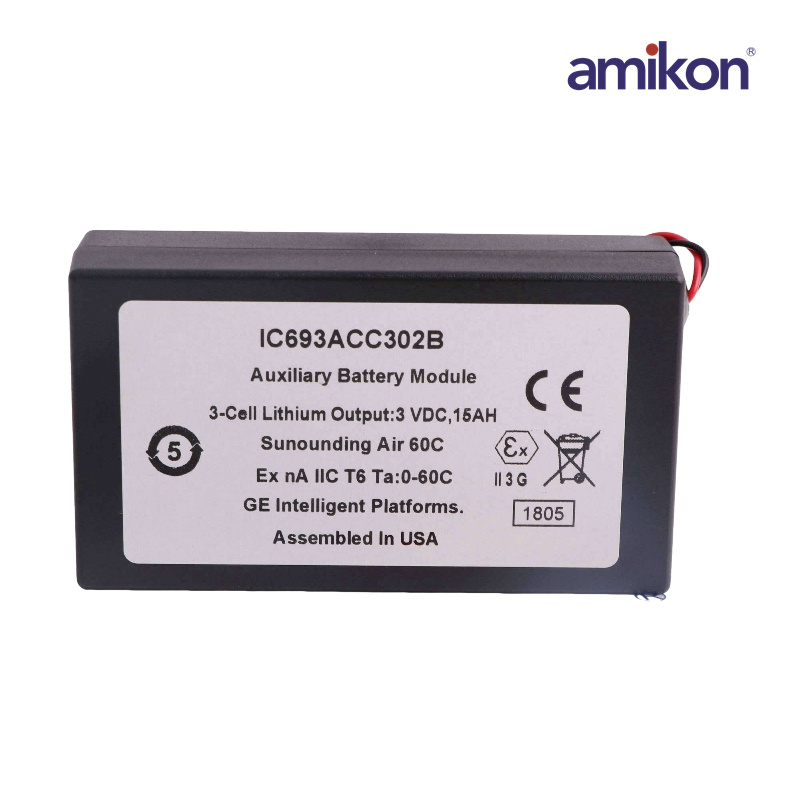

GE IC693ACC302A Module Battery pack The GE Fanuc IC693ACC302 is an auxiliary battery pack. This battery pack is used to provide additional backup time. It has a shelf life of Seven (7) years with memory backup life 15 months when used with IC693 CPU374 and 75 months when used with IC693 CPUs 311 - 364 and all existing IC697 CPUs.
|
|
The IC693ACC302 module is an auxiliary battery module manufactured by GE Fanuc. It has a 15 Amps per hour capacity with a voltage rating of 3 Volts. It is used as an alternative to standard memory backup batteries. This module provides a backup time for extended memory.
It is used with the Series 90-30, 90-70, and other PACSystems CPUs. The backup time for the RAM can go up to 75 months, and the module has a shelf life of 10 years. It has a compact size with dimensions of 5.71 inches in length, 2.55 inches in width, and 1.571 inches in height. It is made of flame-retardant ABS plastic. The outer body of the IC693ACC302 battery is black. The connections are made with a 2-inch twisted red/black 24 AWG lead with a 2-pin female connector. The environmental temperature should be between 0 and 60 degrees Celsius. The battery should not be exposed to sources of high heat.
|
