| Mfr. Part Number: |
IC693ALG220 |
| Manufacturer: |
General Electric |
| Description： |

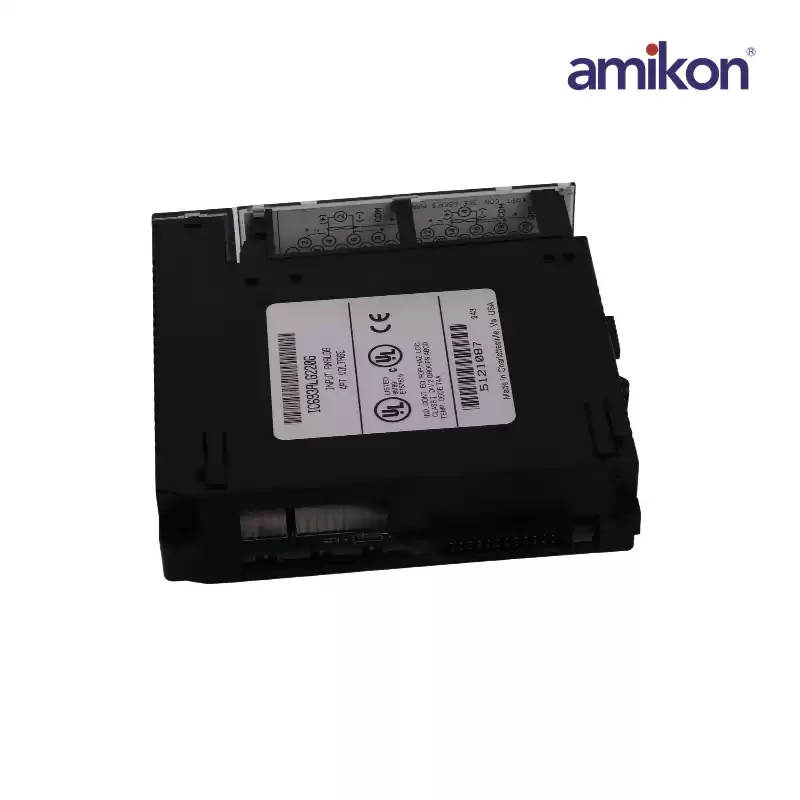

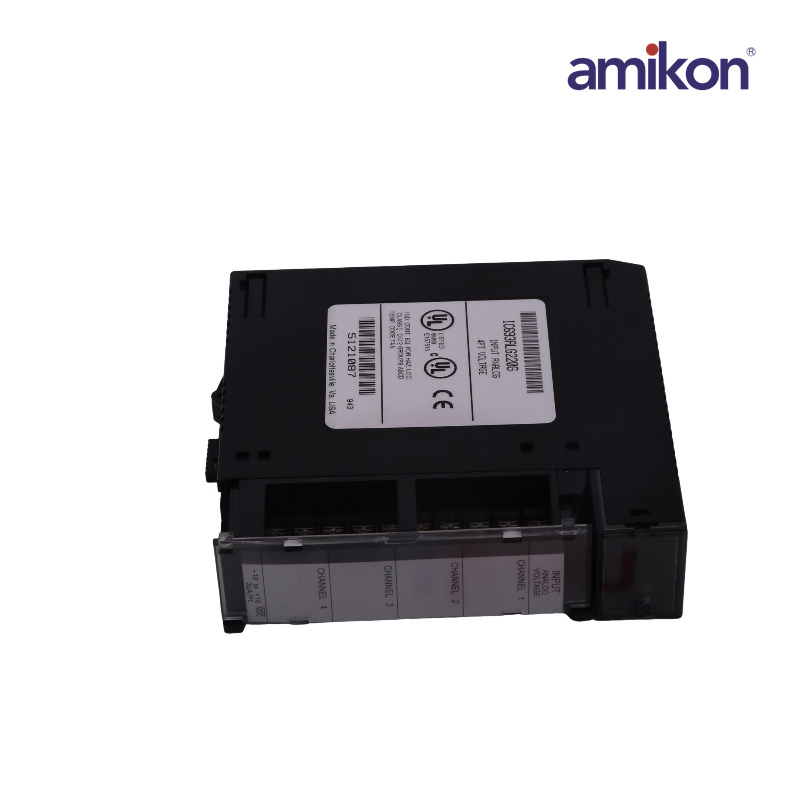

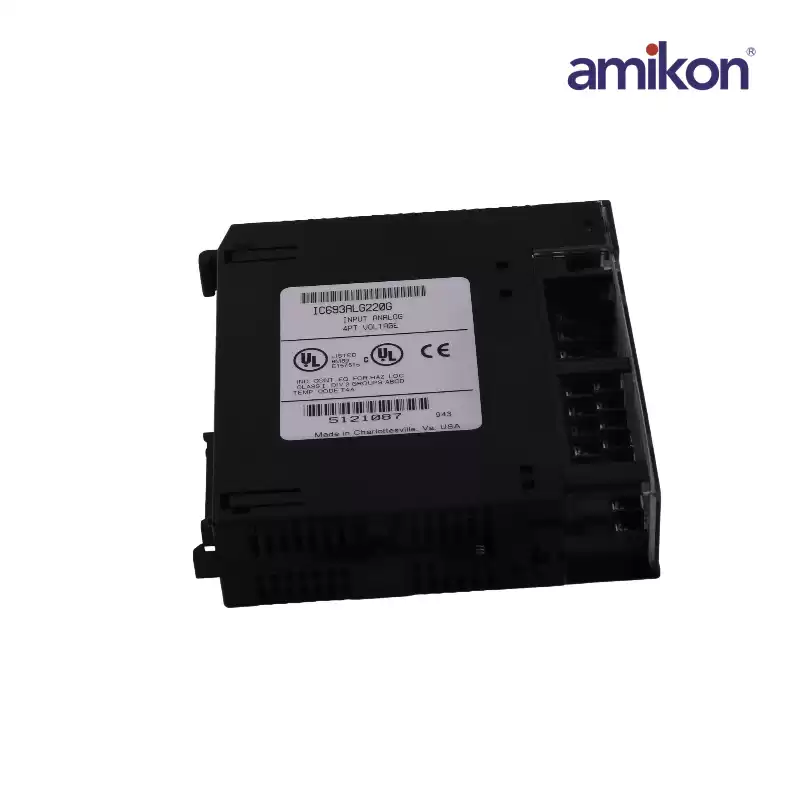

IC693ALG220 Analog Voltage Input Module |
| Full Description: |
GE IC693ALG220G Analog Voltage Input module The IC693ALG220 is a Channel Analog Voltage Input module for the Series 90-30. This Programmable delivers four input channels, each able to convert an analog input signal to a digital signal as needed by the user. |
|
The IC693ALG220 is an Analog Voltage Input Module that is part of the Series 90-30 platform, currently under Emerson , formerly produced by GE Fanuc. This module has Four (4) voltage input channels, accepting +/-10 VDC, input signal. This module has built-in ADC converter that translates data to digital equivalent with resolution of 5 mV/20 µA, (1 LSB = 5 mV) with update rate of 4 ms and input filter response of 17 Hz.
|
