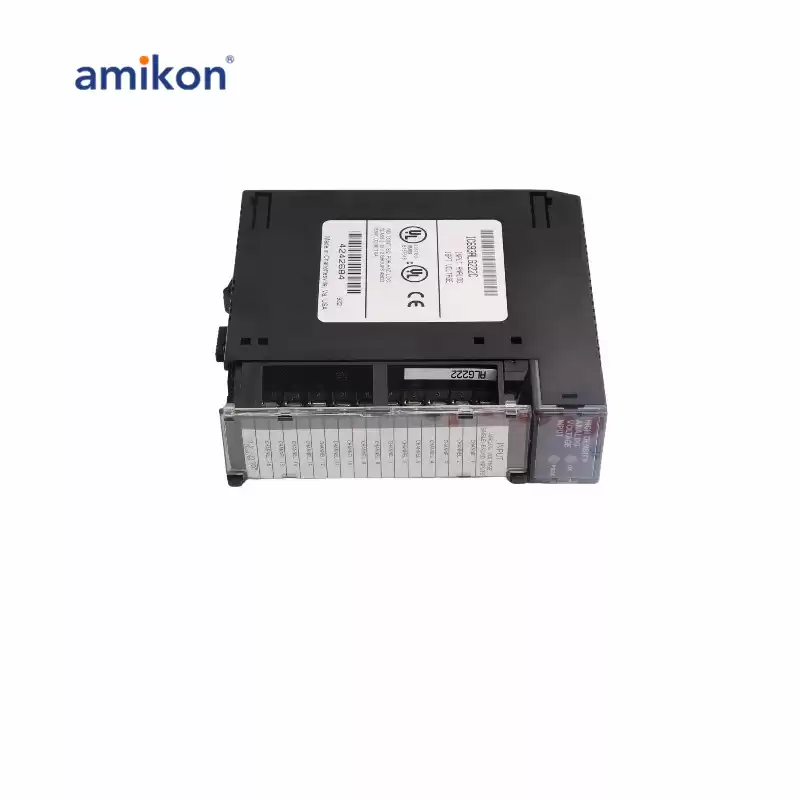

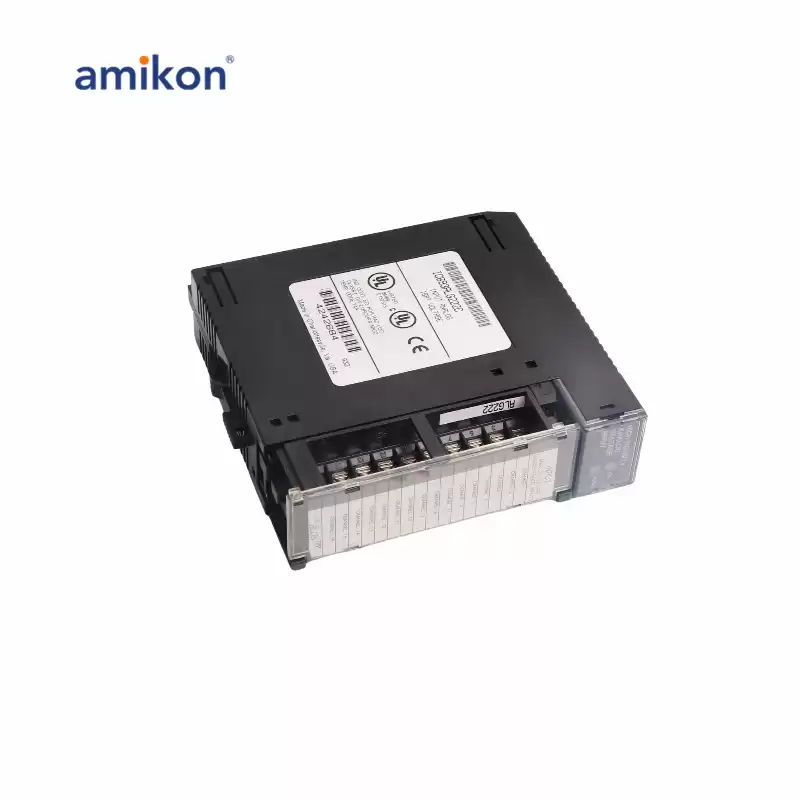

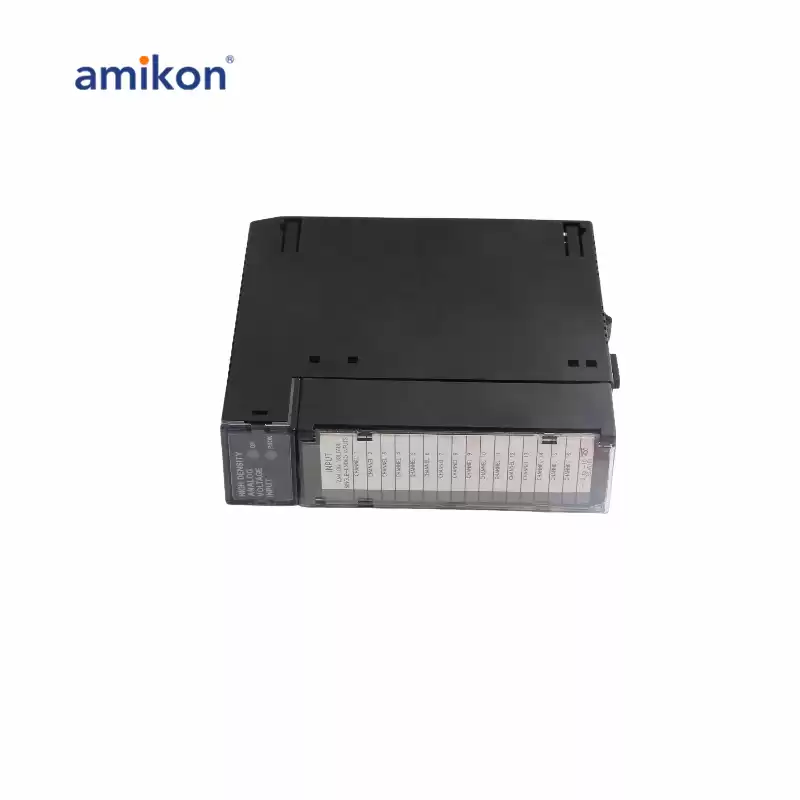

General Electric IC693ALG222 Analog voltage input module

Brand new and original sealed//Same Day Shipment

The GE Fanuc IC693ALG222 is a Series 90-30 module. This module is an analog voltage input module featuring Sixteen (16) Single-ended input channels, receiving 0 to 10 V (unipolar) and –10 to +10 V (bipolar) input signals. This module is installed to any slot of a 5-slot and 12-slot Series 90-30 baseplate.
The IC693ALG222 channels are individually configurable. For single ended configuration, each channel has an update rate of 6 msec while 3 msec for differential configuration.
IC693ALG222 Data sheet	the input filter response is 41 Hz while 82 Hz when operating in differential mode. This module has an internal maximum power consumption of 112 mA from the backplane +5 VDC bus and 41 mA from the backplane Isolated +24 VDC supply.
	the module’s resolution is 5 mV (1 LSB = 5 mV). Regardless of the configured input type and wiring method, the module exhibits an absolute accuracy of ± 0.25% of full scale @ 25 Deg. Celsius or 77 Deg.
	Fahrenheit and ± 0.5% of full scale over specified operating temperature range with linearity of +/- LSB. For single ended configuration, the input filter response is 41 Hz while 82 Hz when operating in differential mode
