Products Detail:
|
Brand
|
General electric
|
|
Part Number
|
IC693ALG223
|
|
Product Type
|
Analog Current Input Module
|
|
Payment
|
T/T,100% advance payment
|
|
Shipping Port
|
Xiamen,China
|
|
Lead Time
|
In stock
|

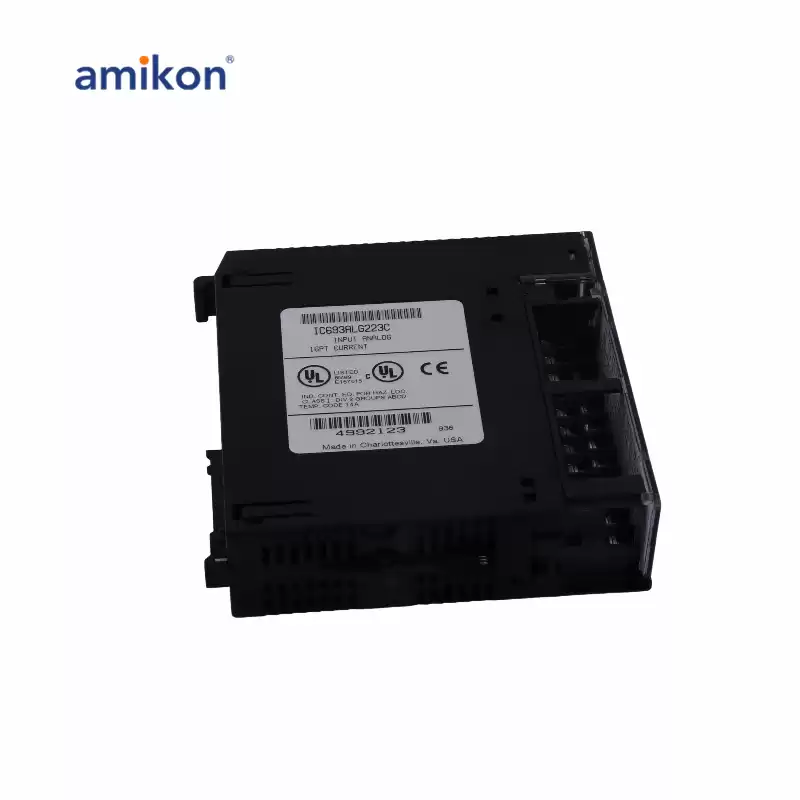

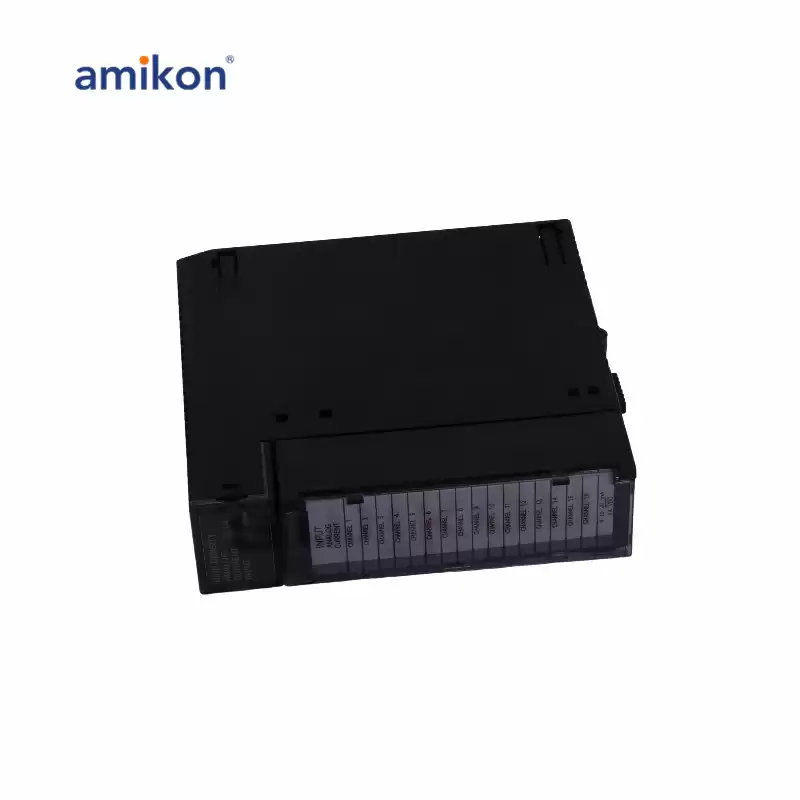

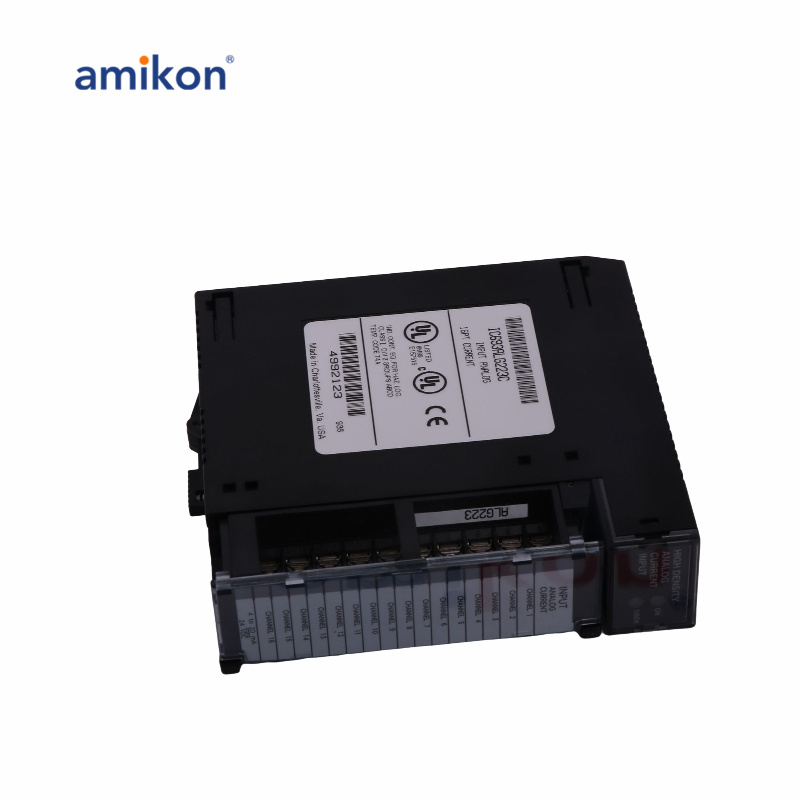

The GE Fanuc Series 90-30 Programmable Logic Controller (PLC) module with catalog number IC693ALG223 is a Sixteen (16) channels, single ended, analog input module that is used to interface field devices and instrument that provide analog signals as representation to measurement of process variable. Specifically, each channel of the IC693ALG223 is configurable of receiving 0-20 mA, 4-20 mA and 4-20 mA enhanced signals. Some of the devices that are capable of providing these signals are Transmitters, Variable Frequency Drive’s (VFD) speed feedback, data loggers, panel meters and other devices.
The IC693ALG223 is a single slot module that is installed to any slot of a Series 90-30 5-slot or 10-slot baseplate. Depending on the controller installed, the number of allowed instances of the IC693ALG223 varies. For Model 311, Model 313, and Model 323 system, up to Four (4) module instances is compatible. For Model 331 system, Eight (8) modules, Twelve (12) with Model 340 and 341 system and 51 in Model 351 and 352 systems.
|
Attribute
|
Details
|
|
Brand
|
GE Fanuc
|
|
Series
|
Series 90-30
|
|
Part Number
|
IC693ALG223
|
|
Product Description
|
Analog Current Input
|
|
Range
|
4-20 mA, 0-20 mA
|
|
Accuracy
|
0.25% at 25°C
|
|
External Power
|
24 VDC
|
|
No of Channels
|
16
|
|
Isolation
|
1500 volts RMS field to the logic side
|
|
Update Rate
|
13 ms (all channels)
|
|
Resolution at 4-20 mA
|
4 microamps
|
|
Resolution at 0-20 mA
|
5 microamps
|
