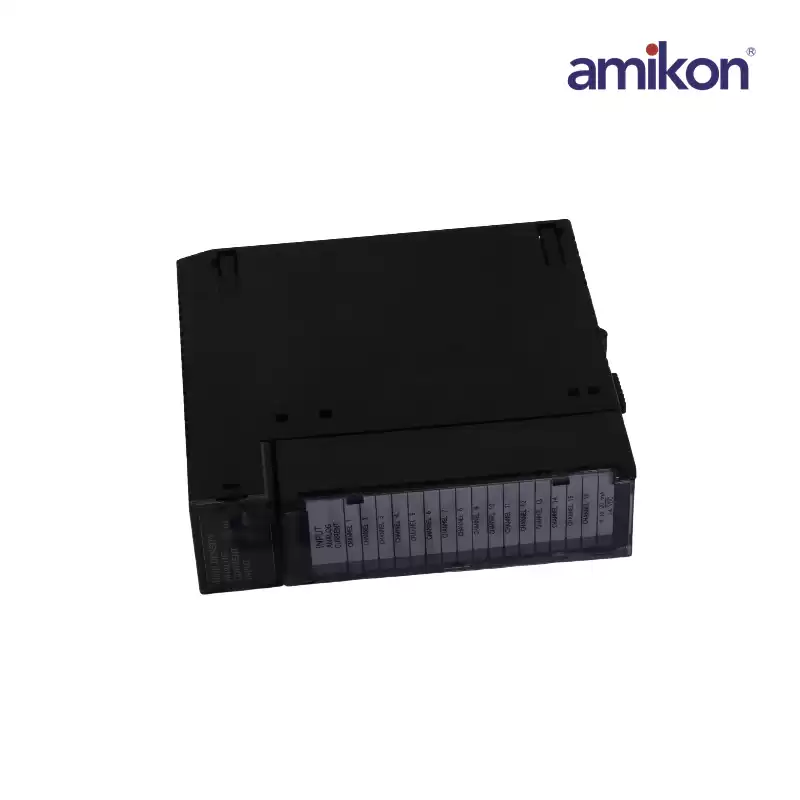

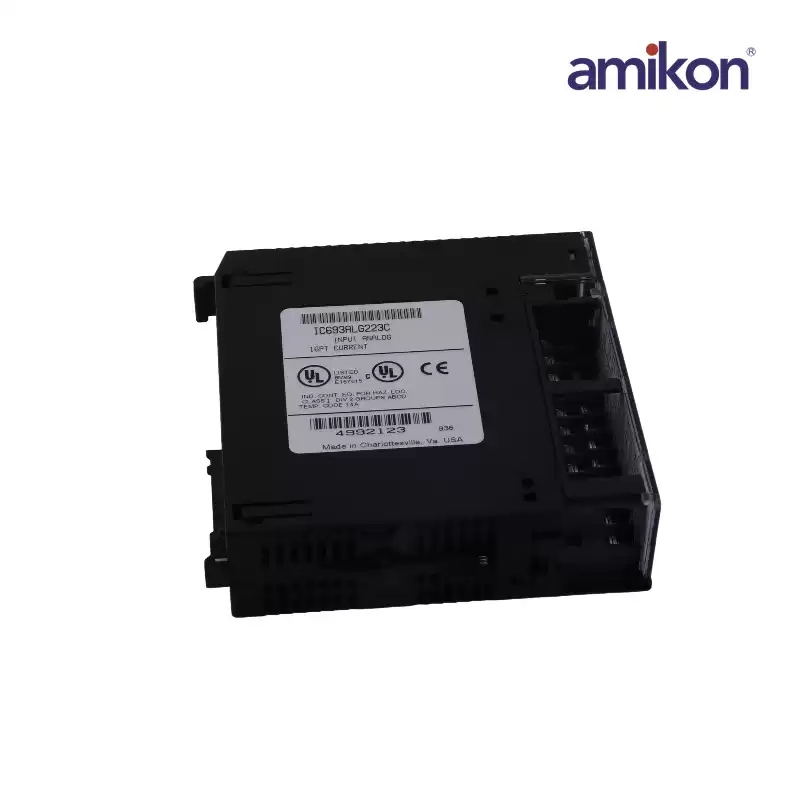

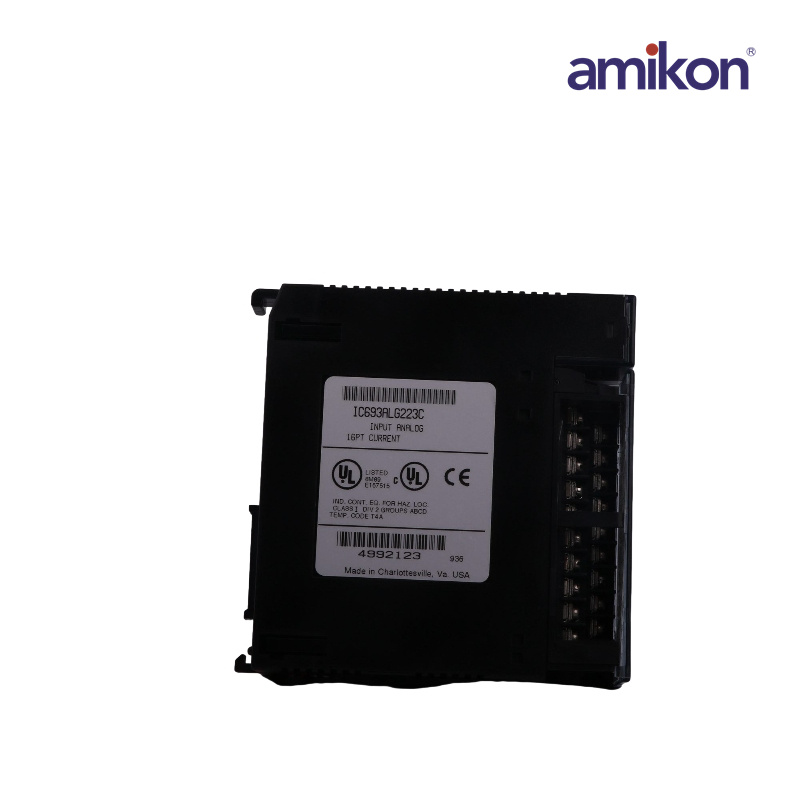

General Electric IC693ALG223 Analog Current Input module
|
|
Dimensions: 3.6x13x13.5cm
|
Weight: 0.35kg
|
Input Current Range:0 to 20 mA, 4 to 20 mA and 4 to 20 mA enhanced |
|
Calibration:Factory calibrated to 4 µA per count or 5 µA per count
|
Power Consumption:120 mA from the +5 V bus or 65 mA from the +24 V bus
|
|
IC693ALG223
|
IC693ALG223 is a PACSystems Series 90-30 RX3i Analog Current Input Module that offers 16 channels. The module’s 16 separate and single ended channels can be configured for any of the following three ranges: 4 to 20 mA, 0 to 20 mA, or 4 to 20 mA Enhanced. Both high and low alarms are obtainable on each range. In the enhanced range, the IC693ALG223 module can be set with a low alarm limit to detect input current with open wire fault detection in the 4 to 20 mA applications; high alarm alerts can also be set by the user. Additionally, this module reports status, including power supply standing to the CPU. IC693ALG223 can be used in any I/O slot that offers a serial connector in the RX3i or Series 90-30 system.
|
