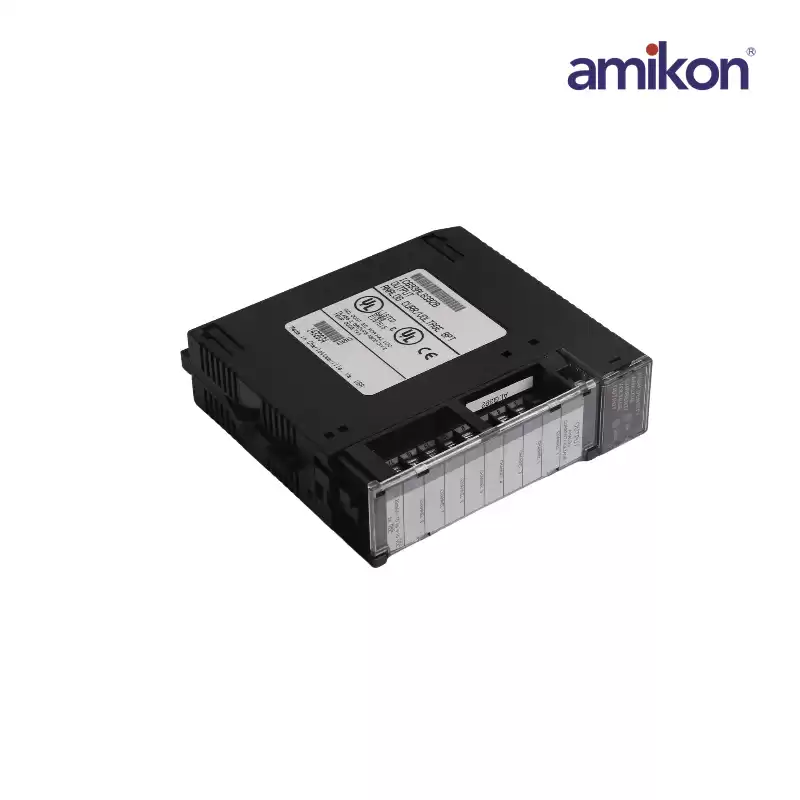

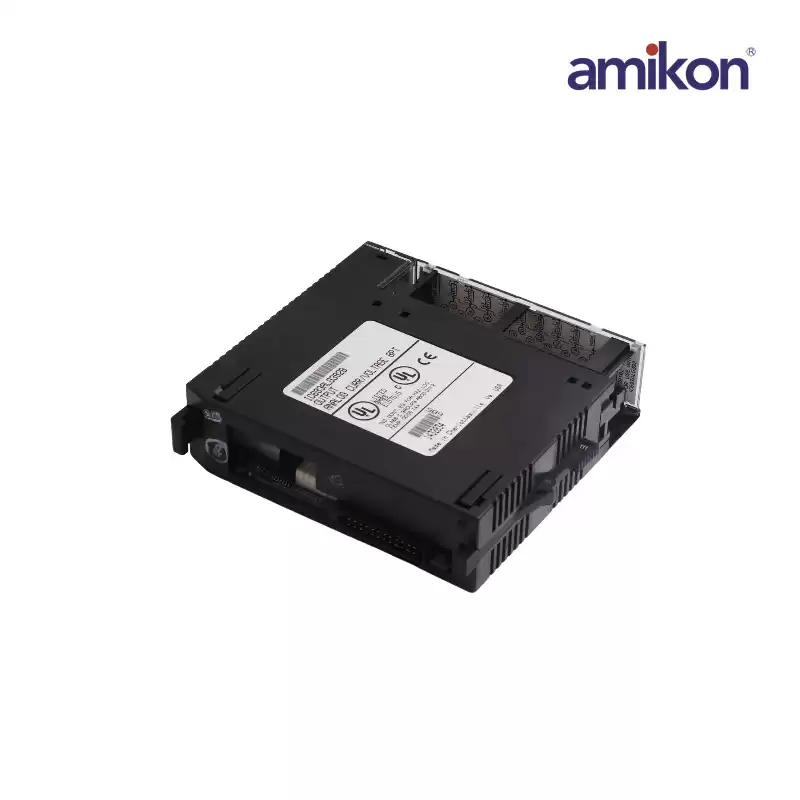

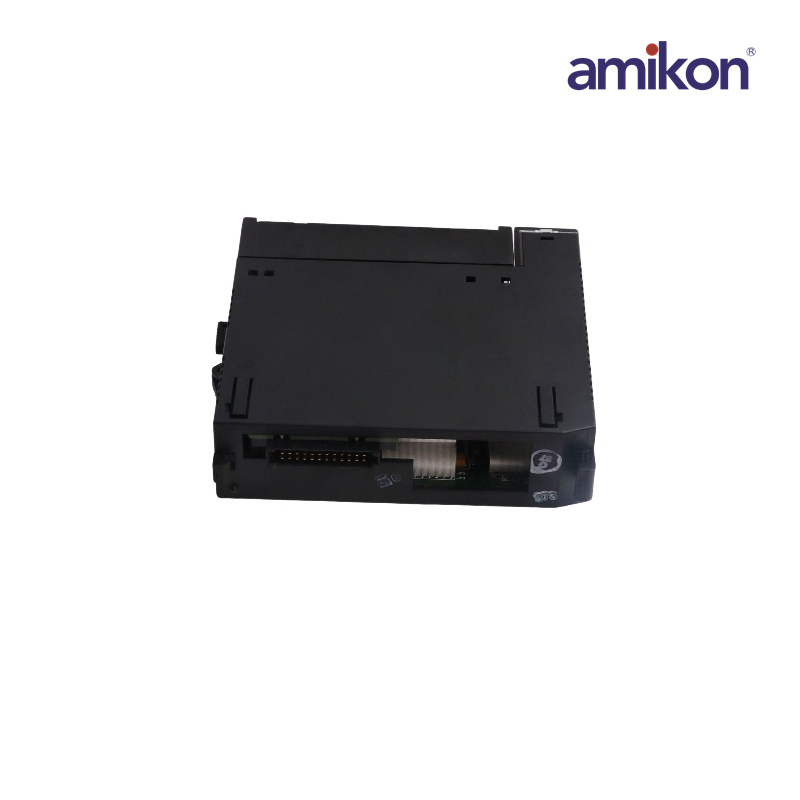

General Electric IC693ALG392 analog output module
|
|
Dimensions: 3.5x13x13.5cm
|
Weight: 0.38kg
|
Current Range:4 to 20 mA, 0 to 20 mA |
|
External Supply Voltage Range:20 to 30 VDC
|
Voltage Range :0 to 10 V, -10 to 10 V
|
|
IC693ALG392
|
The IC693ALG392 is a Series 90-30 module. This module is an analog output module that is typically used for implementing modulating control of instruments or devices such as Variable Frequency Drives (VFD), Control Valves, Positioners, converters and other similar modulating devices. It may also be used to re-transmit analog data to receiving elements such as recorders, data loggers and other compatible receiving devices.
The IC693ALG392 features Eight (8) output channels with configurable resolution of 15 or 16 bits, depending on the analog output range selected. It is capable of providing voltage signals such as 0 to +10 volts (unipolar) / -10 to +10 volts (bipolar) voltage and 0 to 20 milliamps / 4 to 20 milliamps output signals. In able to generate the output analog signals, this module requires an isolated 24VDC power, directly connected to the designated terminal block of the module.
|
