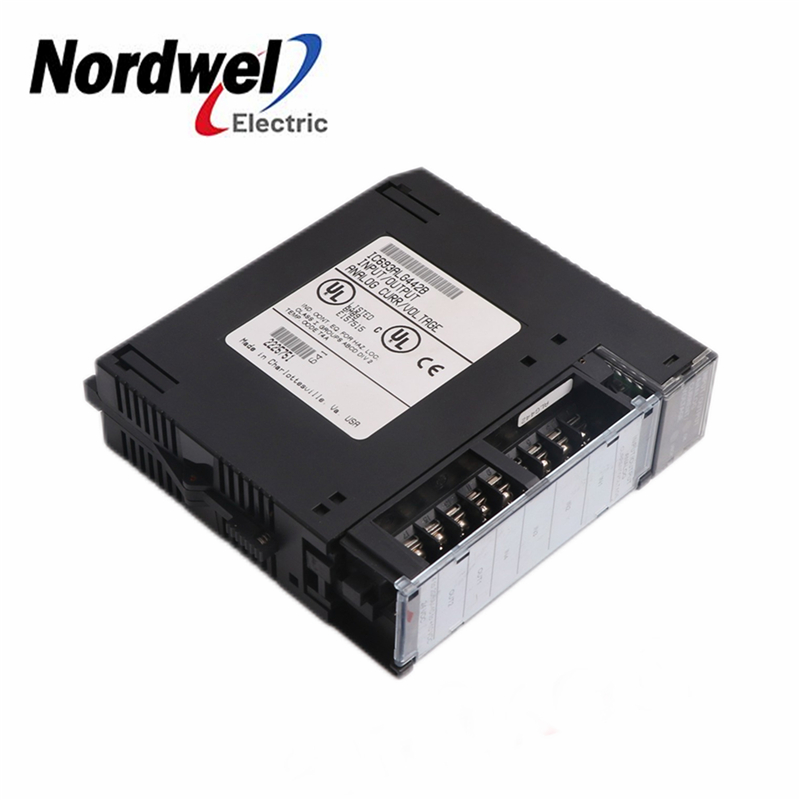

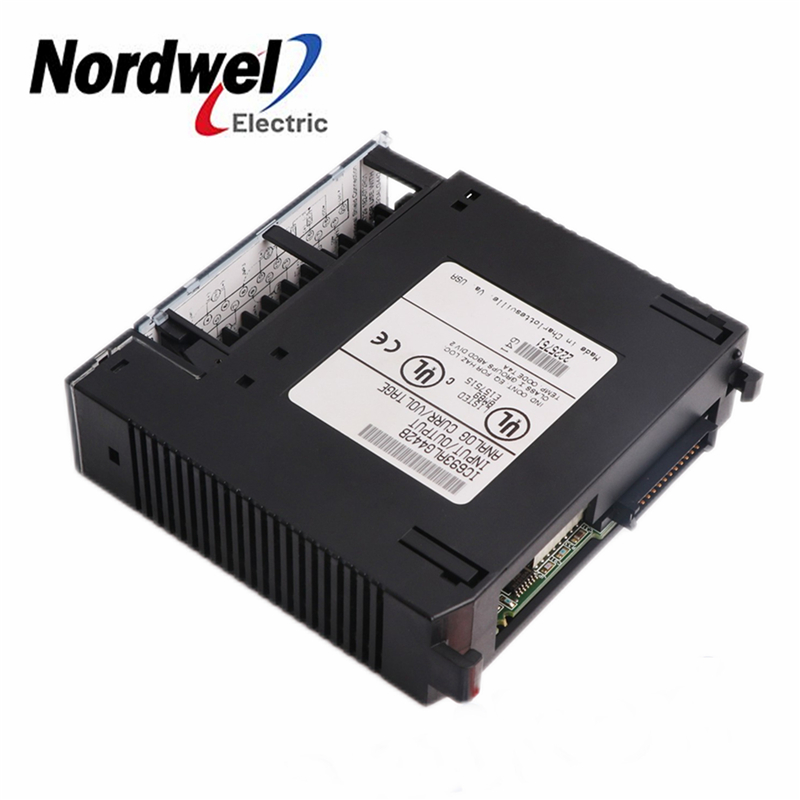

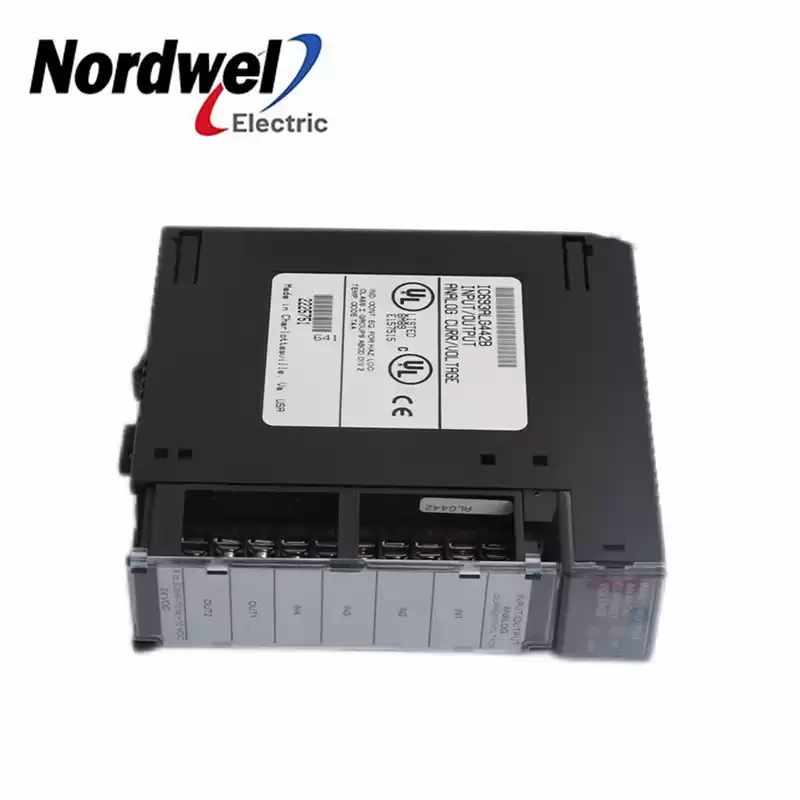

The GE Fanuc IC693ALG442 is an analog I/O module of GE Fanuc series 90-30 PLC systems. It has four input and
two output channels. Power supply for this module is the typical +5VDC supply from the CPU with a maximum
95mA current and an external supply combined. The external power supply for this module has a typical value of 24
VDC but can vary from 20 to 30 VDC. Warning: Connecting this module to a baseplate while power is on is
dangerous and may damage the components of the system. This module must be installed in a metal enclosure
with external wiring.
The GE Fanuc IC693ALG442 analog I/O module provides the PLC with a range of status information, including
health of the module, detection of an open wire or overload in output mode, very low or high status of input
channels, and status of the module’s supplied power.
