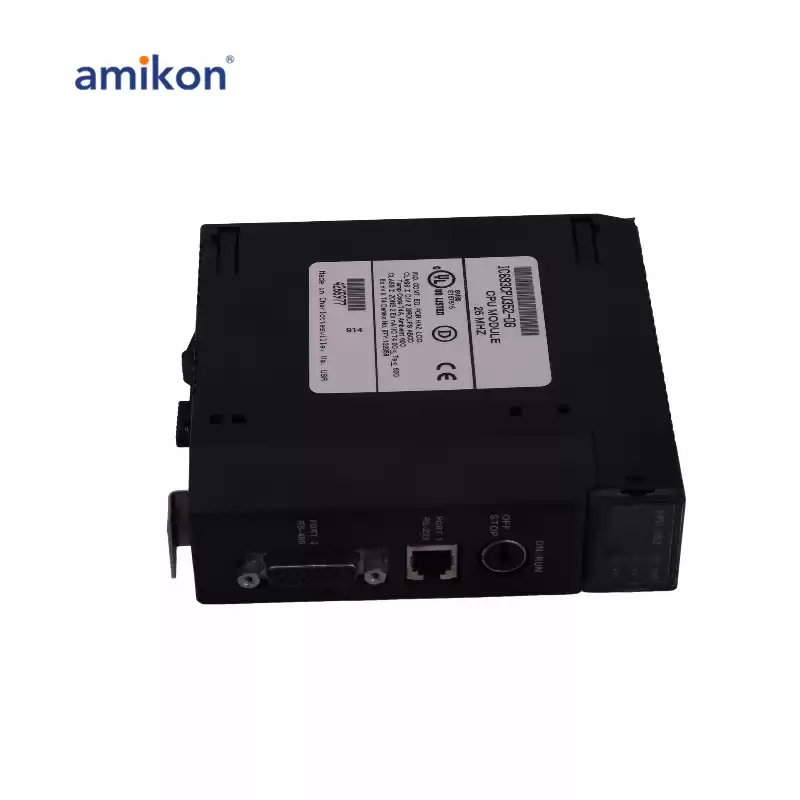

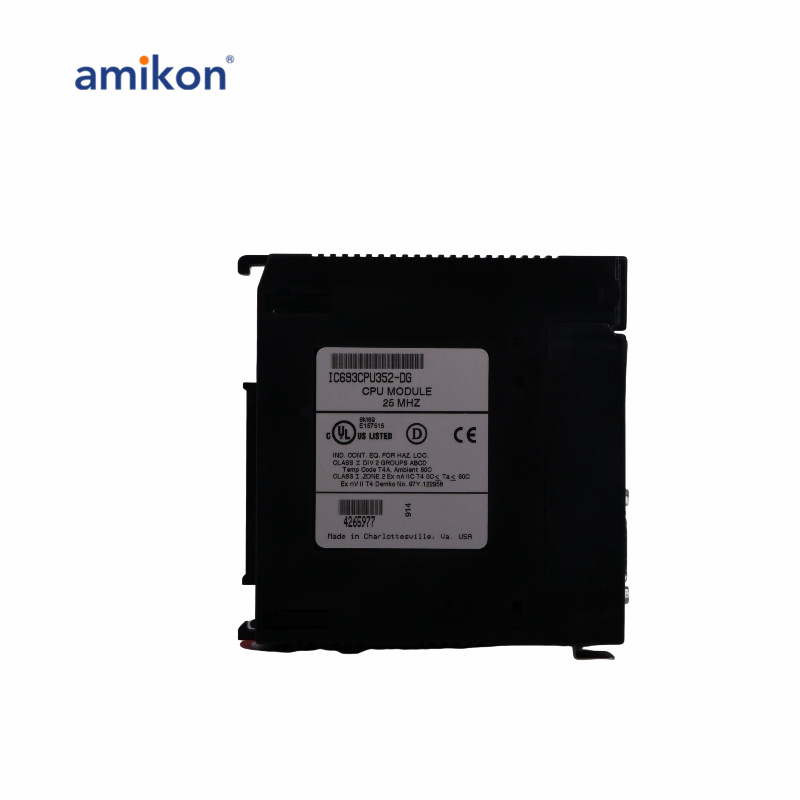

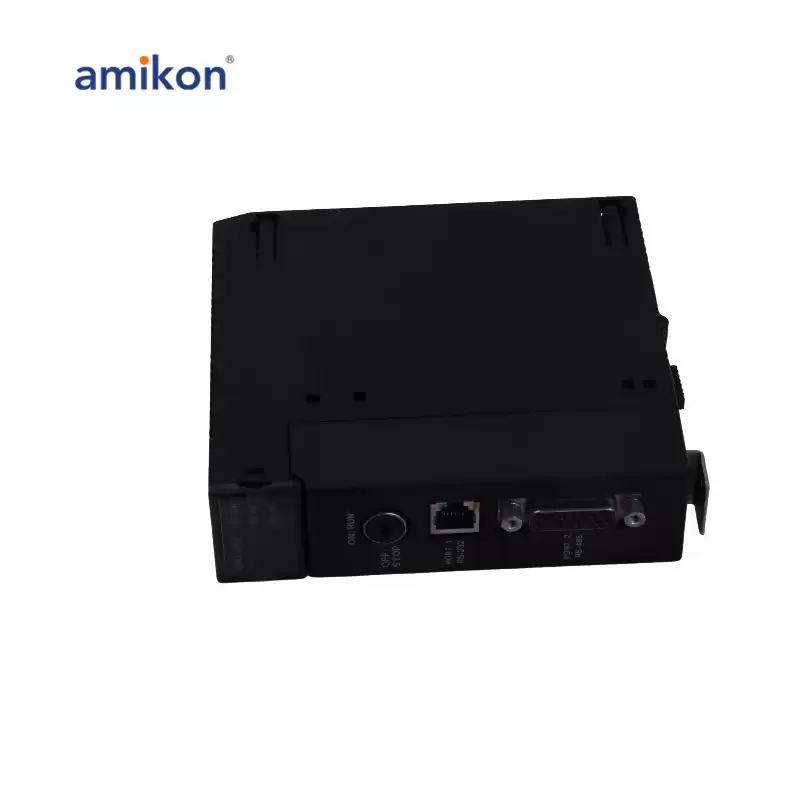

The IC693CPU352 is a single slot CPU module manufactured by GE Automation and Controls for the Series 90/30 PLC system. The total number of Baseplates for each system is 8, which includes one baseplate for CPU, and seven remote and expansion.
|
|
|
IC693CPU352 Data sheet
|
The load requirement of the Power Supply is 890mA from a +5Volts DC supply. The processor type is an 80386EX with a processing speed of 25Mhz.
|
|
The optimum operating temperature for the system is between 0 degrees and 60 degrees Celsius (32 degrees and 140 degrees Fahrenheit).
|
|
The discrete input and output points are 2048 each, 4096 bits for internal coils, 1280 bits for global memory, 256 bits for temporary output coils, 128 bits total (%S, %SB, %SA, %SC which have 32 bits for each) as references for system status.
|
|
Award-winning service
|
More than 25 in stock
|
Full 12-month warranty
|
We deliver worldwide
|
