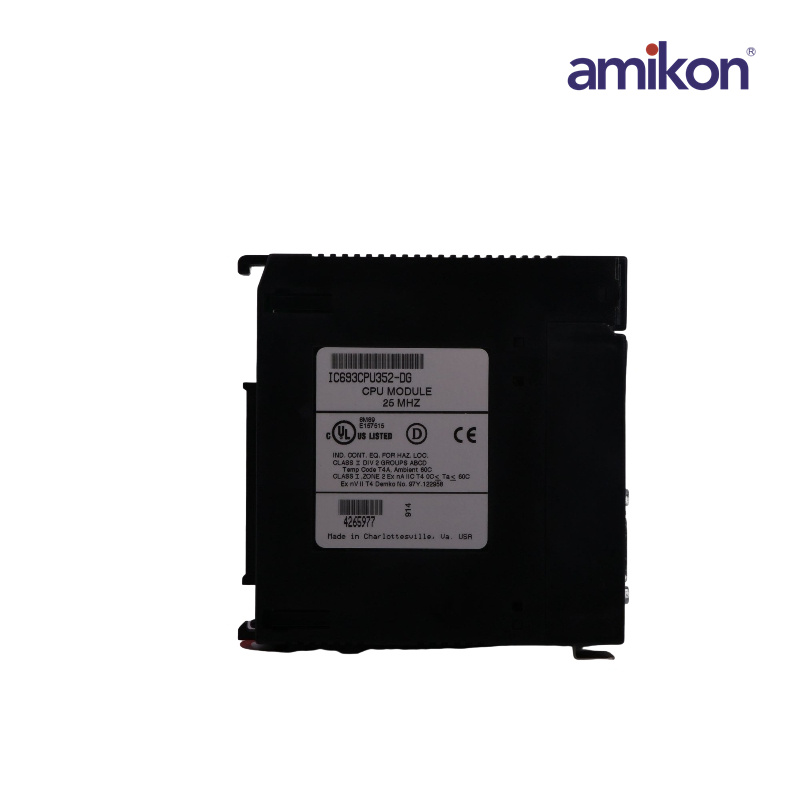

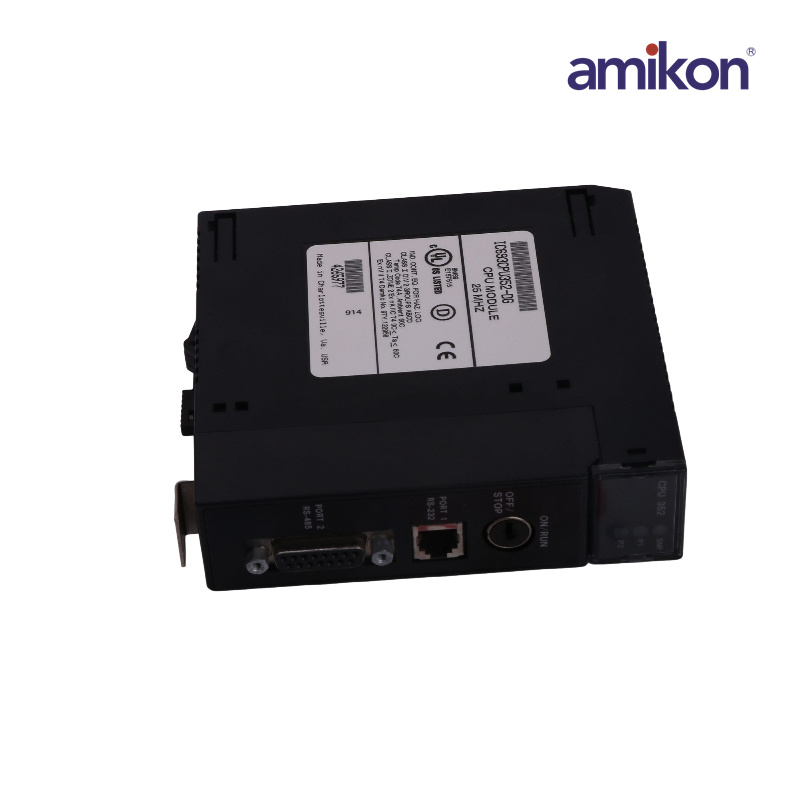

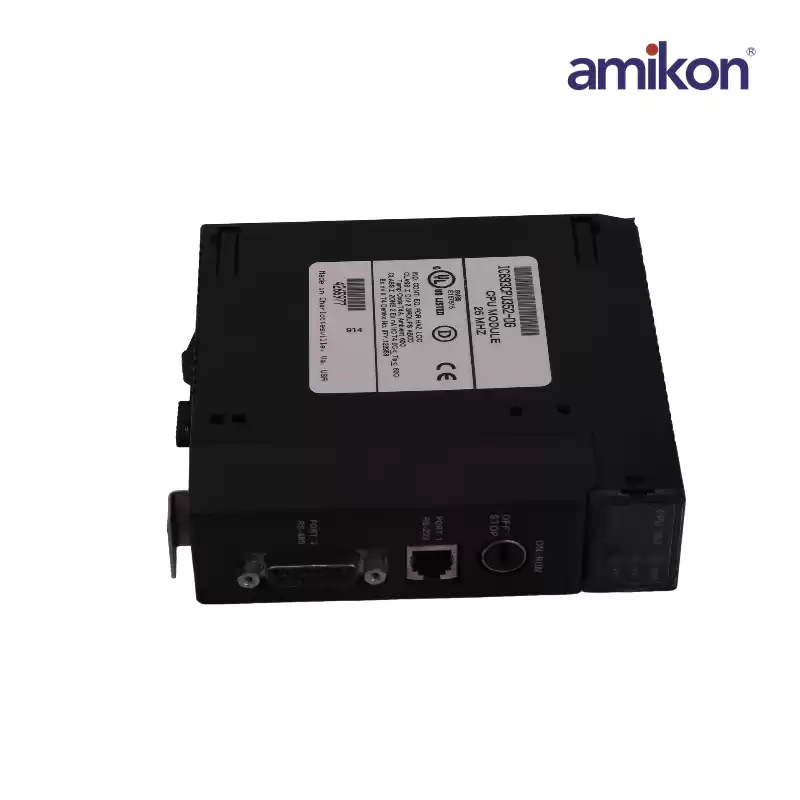

General Electric IC693CPU352 Processor Unit
|
|
Dimensions: 3.6x13.3x13.5cm
|
Weight: 0.3kg
|
Operating Temperature: 0 to 60 degrees C (32 to 140 degrees F) ambient |
|
Load Required from Power Supply：890 milliamps from +5 VDC supply
|
Total Baseplates per System ：8 (CPU baseplate + 7 expansion and/or remote)
|
|
IC693CPU352
|
The IC693CPU352 is a single slot CPU module manufactured by GE and Controls for the Series 90/30 PLC system. The total number of Baseplates for each system is 8, which includes one baseplate for CPU, and seven remote and expansion. The load requirement of the Power Supply is 890mA from a +5Volts DC supply.
The processor type is an 80386EX with a processing speed of 25Mhz. The optimum operating temperature for the system is between 0 degrees and 60 degrees Celsius (32 degrees and 140 degrees Fahrenheit). This specification is also referred to as the ambient temperature. The typical rate of scanning is 0.22milliseconds for every 1K logic (I.e., Boolean contacts).
|
